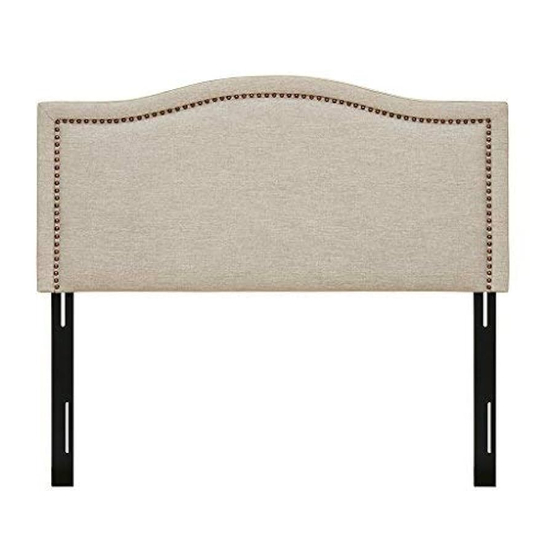

Madison Park Nadine Upholstery Headboard Assembly Instructions

Important safety instructions：
• Please read carefully all instructions before assembling.
• For your safety and ease,assembly by two or more adults is recommended.
• Keep instructions for future use.
Pre-assembly：
• Do not discard any content until assembly is completed to avoid accidentally discarding small parts or hardware.
• Remove all parts and hardware from box along with any protective packaging.
Parts List
Item Description
P1 Headboard
Left Support Leg with
3 Mounting Brackets
P2
(With the sticker "Left"
on the bottom)
Right Support Leg with 3
Mounting Brackets ( With
P3 the
sticker "Right" on the
bottom)
Hardware List
Item Description
H1 Bolt M8X35mm
H2 Spring Washer
H3 Flat Washer
H4 Allen Key
H5 Bolt M8X25mm
H6 Spring Washer
H7 Flat Washer
H8 Nut Cap
H9 Solid Wrench
DISCLAIMER:
WHEN PROPERLY ASSEMBLED,THIS ITEM IS SAFE FOR INTENDED USE.SELLER IS NOT LIABLE FOR ANY DAMAGES RESULTING
FROM ITEM BEING IMPROPERLY ASSEMBLED AFTER PURCHASE.
Assembly Procedures:
Step 1.Assemble the bench on a flat, soft surface such as a carpet or cloth to prevent scratching the finish.Take out Legs
and hardware under the headboard.
ASSEMBLY INSTRUCTIONS
Description:Nadine Upholstery Headboard
DRAWING QTY
1
1
1
DRAWING QTY
4
Pack A ( Used
4
to assemble the
4
1
4
4
(assemble the
4
the bed frame)
4
1
Page 1 of 2
headboard )
Pack B
headboard to
