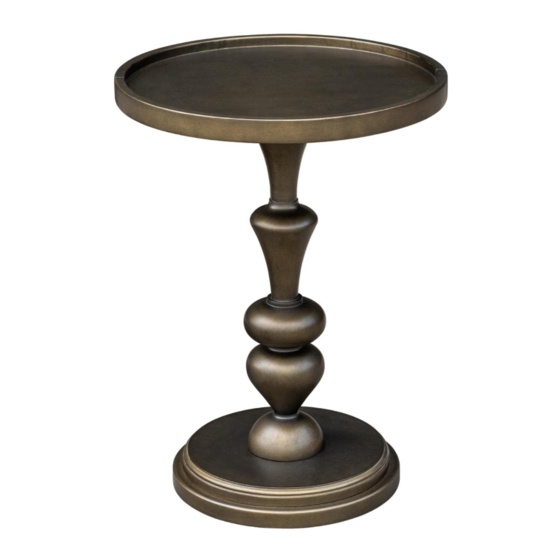

Madison Park Del Mar Accent Table Assembly Instructions

Important safety instructions:

Please read carefully all instructions before assembling.
For your safety and ease, assembly by two or more adults is recommended.
Keep instructions for future use.

Pre-assembly:

Do not discard any content until assembly completed to avoid accidentally discarding small
parts or hardware.
Take out all parts and hardwares from box.

Parts List

Item Description
P1 Table Top
P2 Mounting Plate
P3 Post
P4
Base

Hardware List

Description
Item
Bolt (Ø5/16 x 1-1/4")
H1
Bolt (Ø5/16 x 2-1/2")
H2
Spring Washers Ø5/16"
H3
Flat Washers Ø5/16"
H4
H5
Allen Key
DISCLAIMER:
WHEN PROPERLY ASSEMBLED, THIS ITEM IS SAFE FOR INTENDED USE. SELLER IS NOT LIABLE FOR
ANY DAMAGES RESULTING FROM ITEM BEING IMPROPERLY ASSEMBLED AFTER PURCHASE.

Assembly Procedures:

Step 1. Assemble the Table on a flat, soft surface such as a carpet or cloth to prevent scratching the finish.
Attach The Base (P4) to Post (P3) as shown below.
(H2)x1 Bolts Ø5/16 x 2-1/2"
(H3)x1 Spring Washers Ø5/16"
(H4)x1 Flat Washers Ø5/16"
(H5) Allen Key
ASSEMBLY INSTRUCTIONS
Description: Del Mar/ Heidi/ Ashley Accent Table
QTY
1
1
1
1
QTY
5
1
6
6
1
Page 1 of 2
(P4)
