Important safety instructions
• Please read carefully all instructions before assembly.
• Keep instructions for future use.
Pre-assembly
• Do not discard any content until assembly is completed to avoid accidentally discarding small parts or hardware.
• Remove all parts and hardware from box along with any protective packaging.
Parts List
Item
Description
P1
Seat
P2
Back Support
P3
Top Stretcher
P4
Bottom Stretcher
P5
Left Base
P6
Right Base
Hardware List
Description
Item
Short Bolt
H1
(M6x10mm)
Long Bolt
H2
(M6x60mm)
Short Bolt
H3
(M6x15mm)
Allen Wrench
H4
M6
DISCLAIMER:
WHEN PROPERLY ASSEMBLED, THIS ITEM IS SAFE FOR INTENDED USE. SELLER IS NOT LIABLE FOR ANY DAMAGES RESULTING
FROM ITEM BEING IMPROPERLY ASSEMBLED AFTER PURCHASE.
Assembly Procedures:
Step 1. Assemble the chair on a flat, soft surface such as a carpet or cloth to prevent scratching.
Connect the bottom stretcher(P4) to the left and right base (P5&P6),loosely tighten the four bolts(H1) with the allen wrench(H4) as below.
P4
P5
QTY
1
1
1
1
1
1
QTY
6
4
4
1
H4
P6
Page 1 of 4

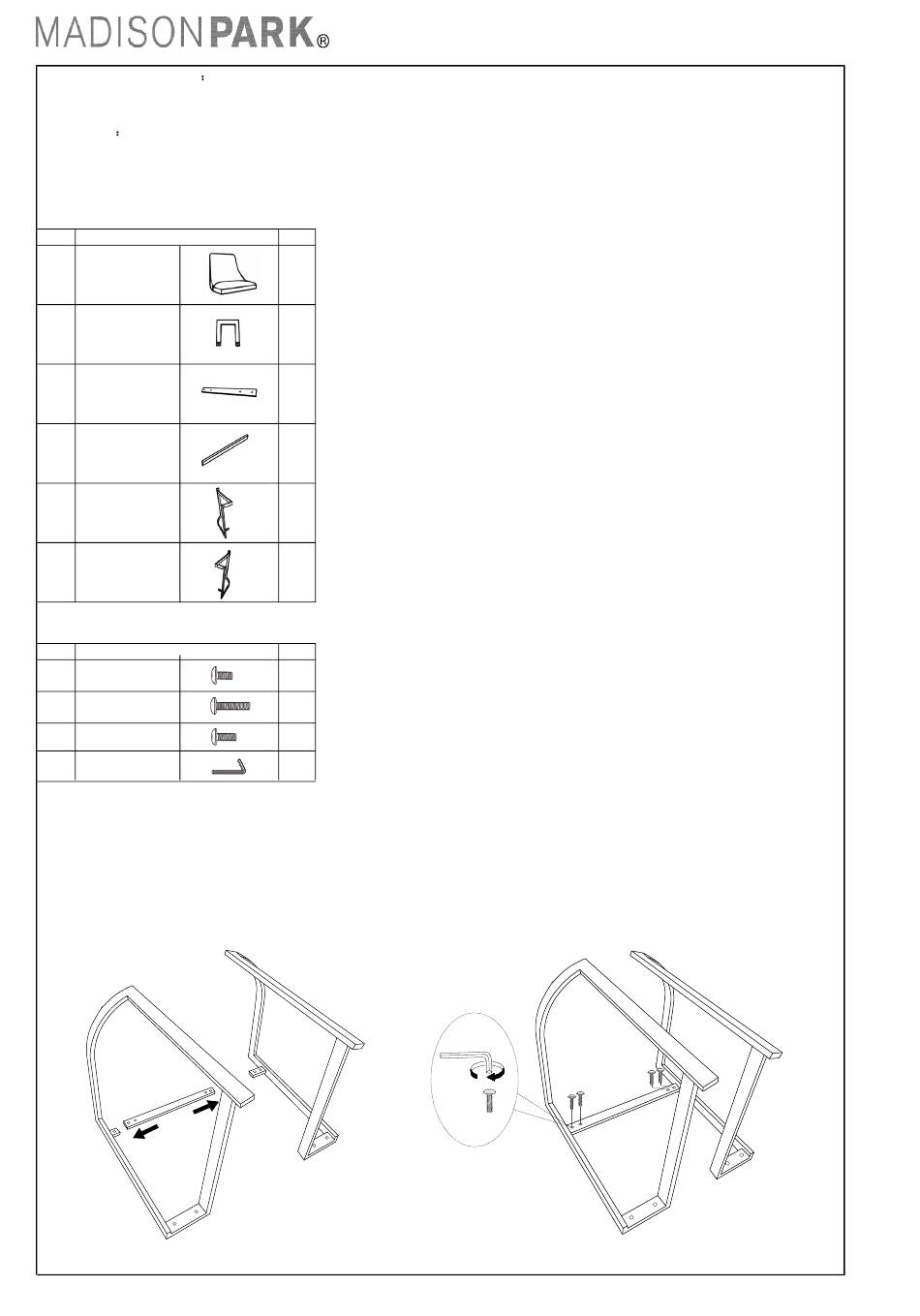

ASSEMBLY INSTRUCTIONS

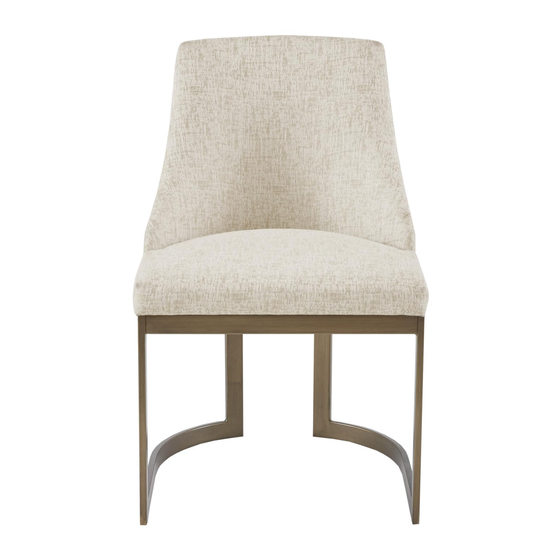

Bryce Counter Stool
P4
H1
P5
P5
P6
