Madison Park Emmett Swivel Assembly Instructions

Counter stool

Table of Contents

Download this manual

Important safety instructions：

• Please read carefully all instructions before assembling.

• For your safety and ease，assembly by two or more adults is recommended.

• Keep instructions for future use.

Pre-assembly：

• Do not discard any content until assembly completed to avoid accidentally discarding small parts or hardware.

• Remove all parts and hardware from box along with any protective packaing

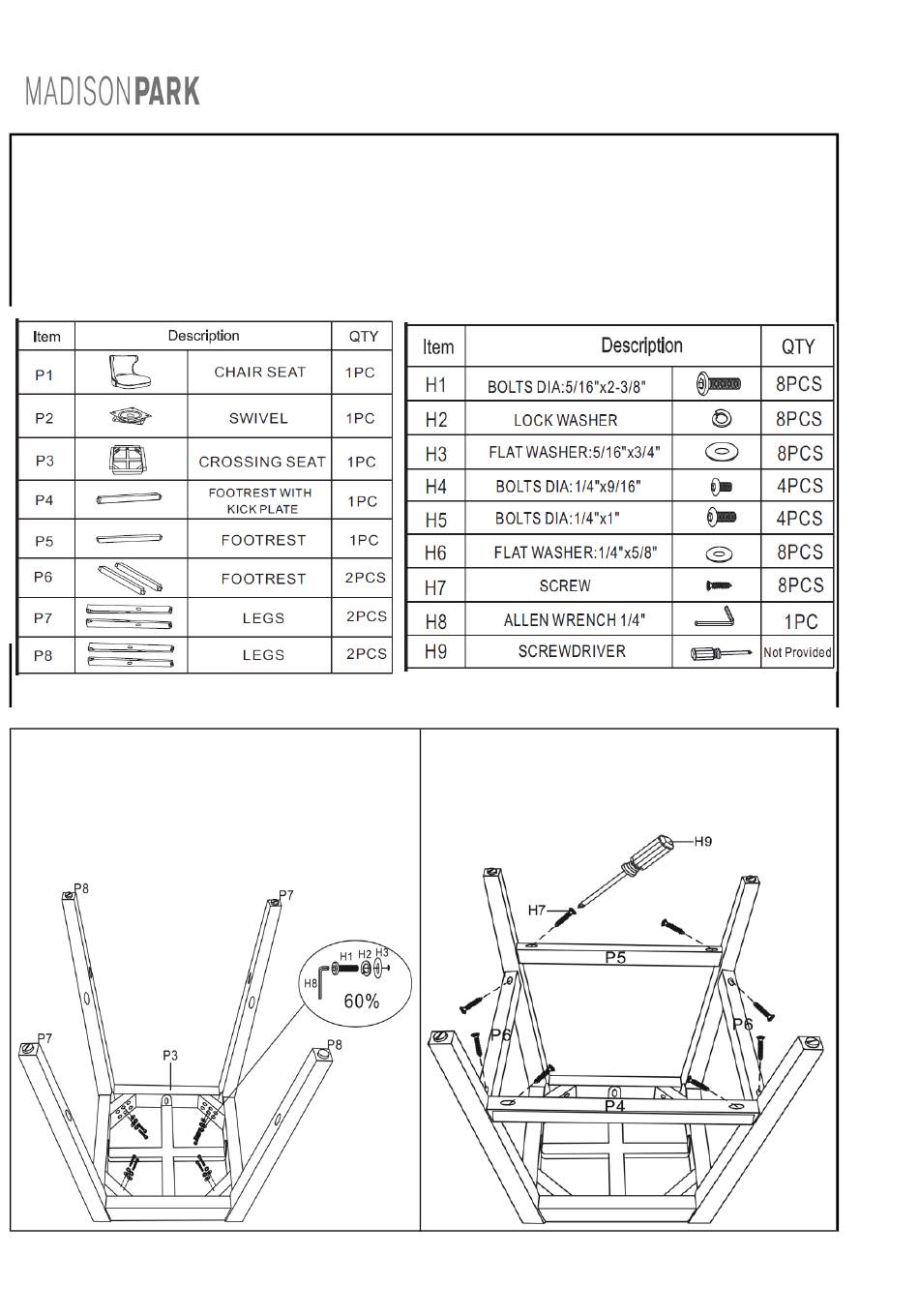

Step 1. Assemble the chair on a flat,soft surface

such as carpet or cloth to prevent scratching. Insert

legs (P7&P8) to the crossing seat frame(P3), lock the

legs to the seat frame using allen wrench(H8)to

loosely tighten bolts (H1), lock washers (H2), flat

washers(H3) as illustration below.

ASSEMBLY INSTRUCTIONS

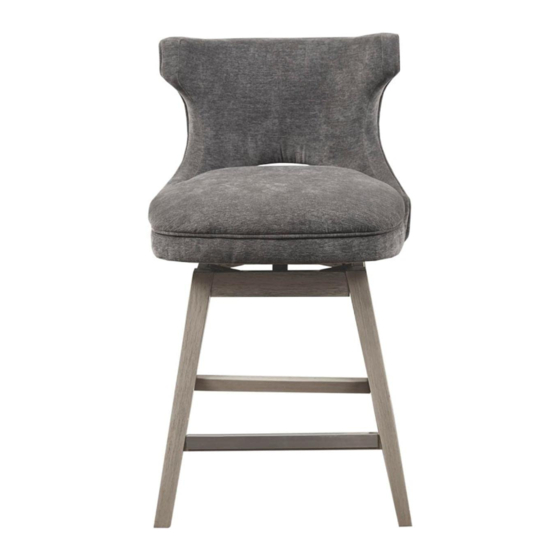

Emmett Swivel counter stool

Step 2. Insert footrest (P4,P5&P6) to the legs

(P7&P8), lock the footrest to the legs with screws(H7)

and tighten all screws securely with screw driver(H9)

as illustration below

Table of Contents

Need help?

Do you have a question about the Emmett Swivel and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS Emmett Swivel counter stool Important safety instructions： • Please read carefully all instructions before assembling. • For your safety and ease，assembly by two or more adults is recommended. • Keep instructions for future use. Pre-assembly： • Do not discard any content until assembly completed to avoid accidentally discarding small parts or hardware.
Page 2 Step 3. Turn the whole leg frame, upright on the Step 4. Attach the swivel (P2) to the leg frame with surface tighten all bolts securely with allen wrench. bolts(H4) and flat washes(H6), tighten all bolts securely with allen wrench(H8) . Step 5.
