Cooker Hood
USER MANUAL
60M21
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and speci cations are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.

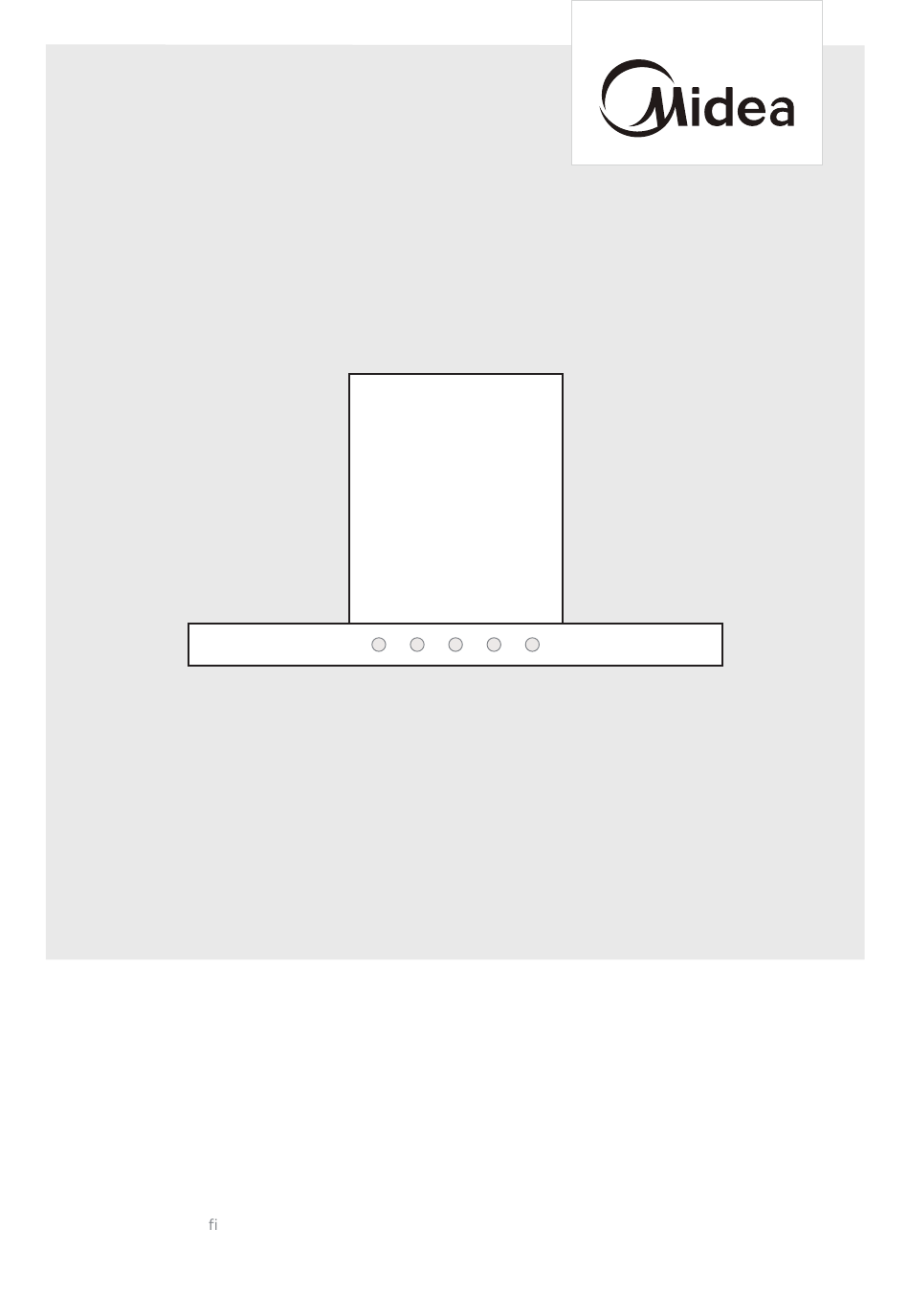

The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea 60M21
Summary of Contents for Midea 60M21
- Page 1 Cooker Hood USER MANUAL 60M21 Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and speci cations are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you nd any damage, please contact the retailer or dealer. - Page 4 WARNING The instructions for Use apply to several versions of this appliance. Accordingly, ● you may find descriptions of individual features that do not apply to your specific appliance. This appliance is not intended for use by persons (including children) with reduced ●...
-
Page 5: Specifications
Clean the hood using a damp cloth and a neutral liquid detergent. ● Prohibit the fire directly bake the hood. ● Discharging type of this cooker hood is external discharge. ● SPECIFICATIONS Model 60M21 Voltage /Frequency 220V-240V~/50Hz Rated power 293W Lighting power 1.5W×2 Motor input power... -
Page 6: Product Overview
PRODUCT OVERVIEW Components Ref. Qty. Product Components Hood Body,complete with: Controls, Light, Blower,Filter. Lower Decorative Chimney Upper Decorative Chimney Flange ( optional ) Exhaust Pipe ( optional ) The Activated Charcoal filter ( optional ) Qty. Documentation Instruction Manual Ref. Qty. - Page 7 Dimensions unit：mm Min. Min. 650mm 650mm Option Chimney Height 400+390 430 465-800 430-800 500+490 565-1000 530-1000 600+590 665-1200 630-1200...
-
Page 8: Product Installation
PRODUCT INSTALLATION Wall Drilling And Bracket Fixing 100 100 Option Chimney 400+390 160-500 500+490 260-700 600+590 360-900 Vertical reference line As a first step, proceed with the following drawings: l line up to the ceiling or up to the upper limit, at the center of the area in which the ●... - Page 9 Fix the brackets : Drill holes at the marked points with a Φ10 mm drill bit. ● Insert the Wall Plugs 11 into the holes. ● Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A. ●...
-
Page 10: Operation Instructions
Upper Decorative Chimney Insert the upper decorative chimney 2.2 into the lower decorative chimney 2.1 and ● drag it up to the horizontal line B. Connect upper decorative chimney 2.2 and chimney fixing bracket 21 with 2 screws 12. ● 2×Screws(ST4.2*9.5) OPERATION INSTRUCTIONS Speed Adjustment... -
Page 11: Cleaning And Maintenance 1
CLEANING AND MAINTENANCE Grease Filters CLEANING METAL SELF-SUPPORTING GREASE FILTERS The filters must be cleaned every 2 months of operation, or ● more frequently for particularly heavy usage, and can be washed in a dishwasher. Remove the filters one by one pushing them towards the back ●... - Page 12 Lighting LIGHT REPLACEMENT(Completed by professionals) Replacing the light modules Cannot replaced the light bulbs, the entire light module has to be replaced. ● When changing the light modules, the contacts are live. ● Before changing the light module(s), unplug the appliance from the mains or switch off ●...
-
Page 13: Trouble Shooting 1
TROUBLESHOOTING Problem Possible reason Solution The blades are blocked. Check the blades ● The capacitor is damaged. Replace capacitor. ● Light on, but motor The motor is damaged. Replace motor. ● does not work The internal wiring of motor Replace motor. ●... -
Page 14: Trademarks, Copyrights And Legal Statement
Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea. -
Page 15: Package Information
European Economic Area. Further information are provided on request. You can contact our Data Protection Officer via MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via... - Page 16 © Midea 2023 all rights reserved 16173000A23171 V1.0...
