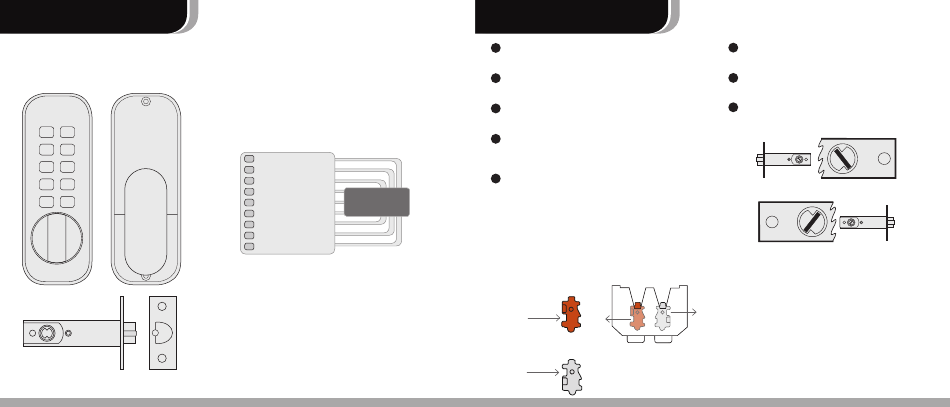

CODELOCKS CL50 Instructions page 2

PUSH BUTTON LOCK
Push button locks can be used at home on doors, garages and
garden sheds, and at work in offices, workshops and storerooms
requiring restricted access. Available in Silver Grey.
1 2
3 4
5 6
7 8
9
C
MANY CODES TO CHOOSE FROM
The code chamber consists of 9 buttons from which the code is selected,
and a 'C' button which is used to re-set the chamber after an incorrect entry,
and which must always be used as the first digit of a code. Buttons may only
be used ONCE in a code. For example, 1212 is not possible.
A code or combination can be entered in any order or sequence; e.g.
1234 can be 4321 or 1342 or whatever sequence is most convenient to
remember. With 9 buttons, a total of 511 different codes are available,
any of which can be entered in any sequence.
The total is arrived at as follows:
+ 1 digit = 9 codes
C
+ 2 digits = 36 codes
C
+ 3 digits = 84 codes
C
+ 4 digits = 126 codes
C
Total codes
+ 5 digits = 126 codes
C
511
+ 6 digits = 84 codes
C
+ 7 digits = 36 codes
C
+ 8 digits = 9 codes
C
+ 9 digits = 1 code
C
It is recommended that the code is changed regularly to
prevent compromise.
CODE CHANGE INSTRUCTIONS
1 Remove the lock from the door by unscrewing the 2 screws in
the back plate.
2 Press the 'C' button to reset the chamber and place the lock case
on a flat surface with the buttons down.
Remove the 2 red screws and carefully lift off the code chamber
3
plate. Check that all 10 springs are held in place on the plate.
Note that the coloured code tumblers correspond in position
4
to the existing code. The silver non-code tumblers fill the other
positions. The C tumbler is not coloured.
Hold the lock in your hand and depress the 'C' button. Keeping
5
the 'C' button depressed, use tweezers to reposition the tumblers
to correspond with your new code. The square notches of ALL
tumblers MUST face outwards, with the square tips ON TOP: See
diagram below. DO NOT force the tumblers in.
NB: Holding the 'C' button depressed whilst re-positioning
the tumblers is ESSENTIAL to avoid damaging the internal
mechanism. DO NOT attempt to reposition the 'C' tumbler.
Coloured code tumblers
with square notch
in low position
Silver non-code tumblers
Section through lock case
with square notch
showing square notches in
in high position
tumblers facing outwards
6 Replace the code chamber plate carefully with the 2 red
screws.
7 Check the operation of the new code, and make a written
note of it before re-installing the lock.
8 Insert the spindle, with the spring on the code side.
On latchbolt locks the spindle must engage the latch
as follows:
Door hung on right viewed from outside
Door hung on left viewed from outside
MAINTENANCE
No maintenance of the working parts is necessary. DO NOT OIL.
To maintain the finish the lock should be cleaned regularly with a
soft cloth. A silicone spray or similar, should be used to provide a
protective film against grit and grime.
GUARANTEE
If any Codelocks mechanical lock should develop a fault, at any
time due to manufacturing, just call the Codelocks helpline and
arrange for it to be repaired free of charge.
