Page 3: Before Use

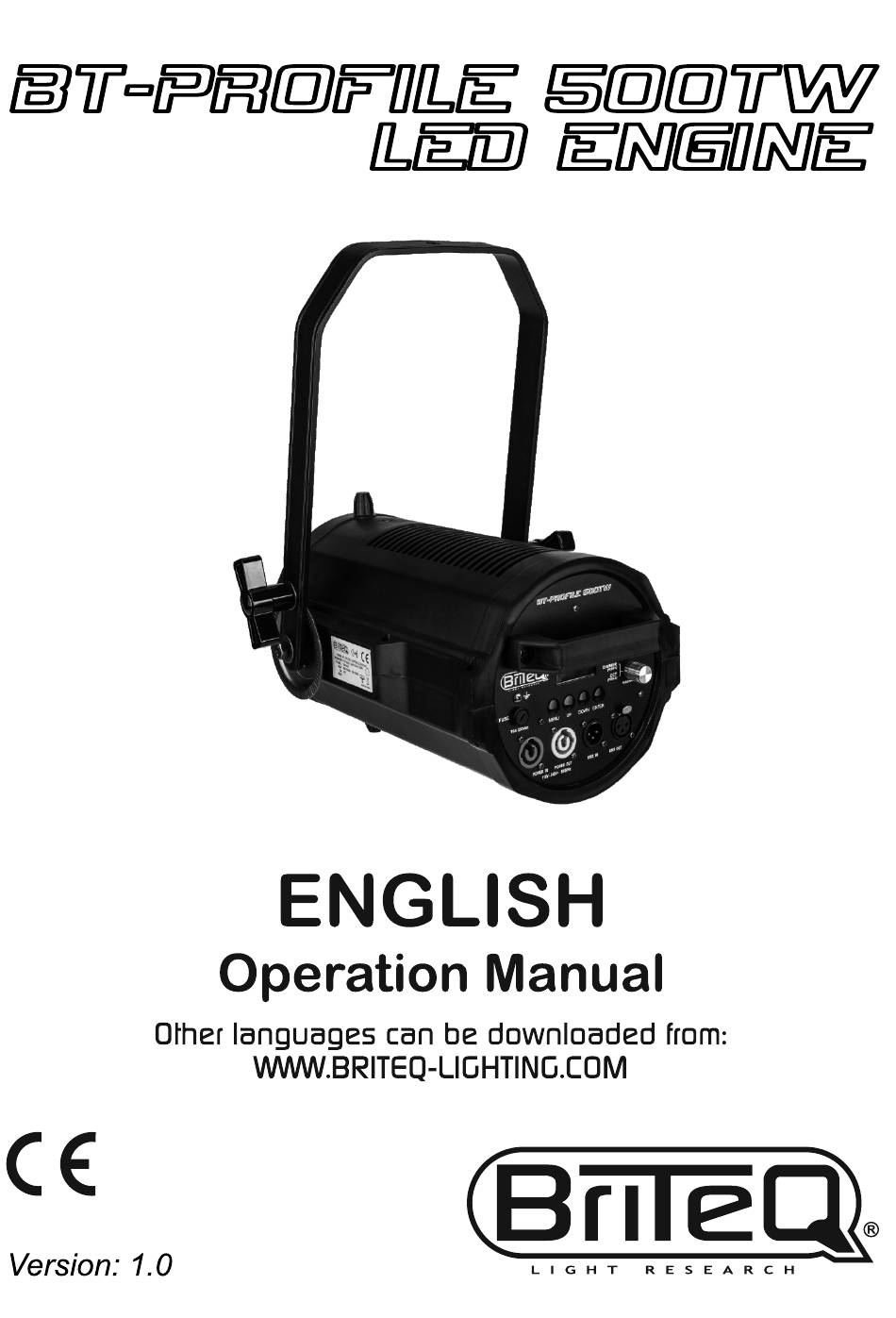

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this BRITEQ product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • This LED profile spot is based on high power LED technology. -
Page 4: Safety Instructions
• In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside. • Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! BRITEQ BT-PROFILE 500TW LED ENGINE ®... -
Page 5: Overhead Rigging
) and balanced signal (XLR 3pin) in one cable. Different lengths are available: 1.3m, 3m, 5m and 10m, very convenient! 10. DMX INPUT CONNECTOR: 3pin male XLR-connector used to connect the unit with the DMX controller or with the previous unit in the DMX chain. BRITEQ BT-PROFILE 500TW LED ENGINE ®... - Page 6 F. Fasten the 2 security knobs (12) to assure that both parts stay together, also while turning the optics. Remark: in the beginning it needs some practice to install and remove the optics on the LED Engine, after a while it will be a piece of cake for you! BRITEQ BT-PROFILE 500TW LED ENGINE ®...
- Page 7 • Press the UP/DOWN buttons (3&4) to select one of the 3 options: • Freeze: Hold the last received DMX value when DMX is lost • Blackout: Turns off the projector when DMX is lost BRITEQ BT-PROFILE 500TW LED ENGINE ®...
-
Page 8: Electrical Installation
• Set one of the CCT presets: choose [LED CCT] and select one of the CCT-presets Remark: if you don’t use the preset options, both should be set to “NONE” to select any desired color. BRITEQ BT-PROFILE 500TW LED ENGINE ®... -
Page 9: Dmx Charts
Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ BT-PROFILE 500TW LED ENGINE ®... -
Page 10: Specifications
(led engine without bracket and without lens) Weight: 4.83 kg (LED ENGINE) The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ BT-PROFILE 500TW LED ENGINE ®... -
Page 11: Mailing List
Suscríbete hoy a nuestra lista de correo para recibir las últimas noticias! Inscreva-se hoje na nossa mailing list para estar a par das últimas notícias! WWW.BRITEQ-LIGHTING.COM Copyright © 2024 by BEGLEC NV ‘t Hofveld 2C ~ B1702 Groot-Bijgaarden ~ Belgium...
