ECOVACS OZMO T8 AIVI (DBX11-11) Manual

Introduction

Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our
Customer Service Center where a technician will be able to help you with your specific problem or question
For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement

Package Contents

Note: Figures and illustrations are for reference only and may differ from actual product appearance
Product design and specifications are subject to changes without notice

Product Diagram

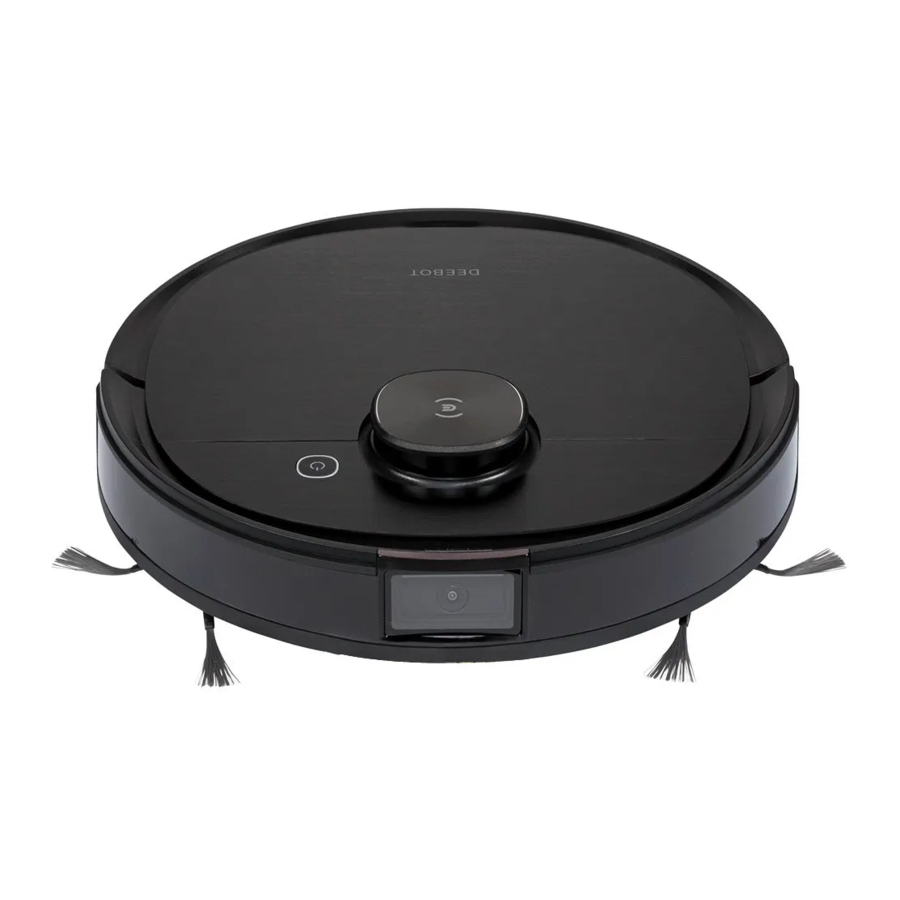

Robot

Bottom View

Docking Station

Reservoir

Operating and Programming

Notes Before Cleaning

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

Make sure areas to be cleaned are well illuminated so Visual Detection works properly. Remove power cords and small objects from the floor to ensure cleaning efficiency.

During the first use, make sure each room door is open to help DEEBOT fully explore your house.

Put away objects including wires, cloths and slippers, etc. on the floor to improve the cleaning efficiency.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Clean the AIVI Visual Detection Sensor and TrueMapping Distance Sensor with a clean cloth, and avoid using any detergent or cleaning spray.

Please do not stand in narrow spaces, such as hallways, and make sure not to block the Detection Sensor.

Quick Start

1. Remove Protective Strips and Films

2. Assemble Docking Station

3. Install Side Brushes


Charging DEEBOT

ECOVACS HOME App

To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME app

Before you start, make sure that:

• Your mobile phone is connected to a Wi-Fi network
• The 24GHz band wireless signal is enabled on your router
• The Wi-Fi indicator light on DEEBOT is slowly flashing


Wi-Fi Indicator Light

	Slowly flashing	Disconnected to Wi-Fi or waiting for Wi-Fi connection
	Rapidly flashing	Connecting to Wi-Fi
	Solid	Connected to Wi-Fi

Tips:
If you have any problems during the Wi-Fi setup process, refer to the Troubleshooting > Wi-Fi Connection section in this manual

Operating DEEBOT

During the first cleaning, please supervise DEEBOT and assist it should there be a problem

1. Start

2. Pause
   Note: The robot's Control Panel stops glowing after the robot is paused for a few minutes Press the AUTO Mode Button on DEEBOT to wake up the robot

3. Return to Charge
   Pressing for 3 seconds to send DEEBOT back to the Docking Station


OZMO Mopping System

1. Note: To prolong the service life of the reservoir, it is recommended to use purified water or softened water for OZMO mopping system

2. Note: When DEEBOT is mopping, DEEBOT automatically detects the carpet and keeps away from it If you need to clean the carpet, please uninstall the cleaning cloth plate first
   * When attaching the Disposable Cleaning Cloth, make sure the fluffy side is attached to the plate, and the dotted side faces out


* You can also purchase an electric oscillating mopping pack that provides intensive mopping performance Explore more accessories at www.ecovacs.com/global

Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and fittings Please contact Customer Service for more information on replacement parts

OZMO Mopping System

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

1.

2. Washable/Reusable Microfiber Cleaning Cloth

   Disposable Cleaning Cloth

   Clean the water inlet filter on the bottom of the Reservoir if it is clogged.


Dust Bin and Filters

Main Brush and Side Brushes

Main Brush

Side Brushes

Other Components

Note: Before cleaning the robot's Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station Clean the AIVI Visual Detection Sensor and TrueMapping Distance Sensor with a clean cloth, and avoid using any detergent or cleaning spray

Storage

If DEEBOT will not be used for a while, fully charge DEEBOT and power OFF before storage Charge DEEBOT every 15 month to prevent battery drain

Note: When DEEBOT is not cleaning, it is recommended to keep DEEBOT powered ON and charging

Indicator Light

DEEBOT will tell you something is wrong with an indicator light and voice report. More detailed support is available through the ECOVACS HOME and online website.

Troubleshooting

Wi-Fi Connection
Before Wi-Fi setup, make sure DEEBOT, mobile phone, and Wi-Fi network meet the following requirements

DEEBOT and Mobile Phone Requirements

• DEEBOT is fully charged and the power switch of DEEBOT is turned on
• Wi-Fi status light slowly flashes
• Turn off mobile phone's cellular data (you can turn it back on after setup)

Wi-Fi Network Requirements

• You are using a 24GHz or 24/5 GHz mixed network
• Your router supports 80211b/g/n and IPv4 protocol
• Do not use a VPN (Virtual Private Network) or Proxy Server
• Do not use a hidden network
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption
• WEP EAP (Enterprise Authentication Protocol) is not supported
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency)
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network

Technical Specifications

Model	DBX11-11
Rated Input	20 V , 1 A
Docking Station Model	CH1822
Input	100-240 V~, 50-60 Hz, 0.5 A	Output	20 V, 1 A
Laser	Max. Power	3 mW
	Frequency	7.2 KHz
	Rotate Speed	300 circle/min
Frequency bands	2400-2483.5MHz
Off Mode Power	Less than 0.50 W
Networked Standby Power	Less than 2.00 W

Output power of the WIFI module is less than 100mW
Note: Technical and design specifications may be changed for continuous product improvement

Important Safety Instructions

When using an electrical Appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved Children shall not play with the Appliance Cleaning and user maintenance shall not be made by children without supervision
2. Clear the area to be cleaned Remove power cords and small objects from the floor that could entangle the Appliance Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor
3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge It may become necessary to place a physical barrier at the edge to keep the unit from falling Make sure the physical barrier is not a trip hazard
4. Only use as described in this manual Only use attachments recommended or sold by the manufacturer
5. Please make sure your power supply source voltage matches the power voltage marked on the Docking Station
6. For INDOOR household use ONLY Do not use the Appliance in outdoor, commercial or industrial environments
7. Use only the original rechargeable battery and Docking Station provided with the Appliance from the manufacturer Nonrechargeable batteries are prohibited
8. Do not use without dust bin and/or filters in place
9. Do not operate the Appliance in an area where there are lit candles or fragile objects
10. Do not use in extremely hot or cold environments (below -5˚C/23˚F or above 40˚C/104˚F)
11. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts
12. Do not operate the Appliance in a room where an infant or child is sleeping
13. Do not use Appliance on wet surfaces or surfaces with standing water
14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance
15. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present
16. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire
17. Do not put objects into the suction intake Do not use if the suction intake is blocked Keep the intake clear of dust, lint, hair, or anything that may reduce air flow
18. Take care not to damage the power cord Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners Do not run Appliance over the power cord Keep power cord away from hot surfaces
19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard
20. Do not use the Docking Station if it is damaged The power supply is not to be repaired and not to be used any longer if it is damaged or defective
21. Do not use with a damaged power cord or receptacle Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water It must be repaired by the manufacturer or its service agent in order to avoid a hazard
22. Turn OFF the power switch before cleaning or maintaining the Appliance
23. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station
24. Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance
25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance
26. Please dispose of used batteries according to local laws and regulations
27. Do not incinerate the Appliance even if it is severely damaged The batteries can explode in a fire
28. When not using the Docking Station for a long period of time, please unplug it
29. The Appliance must be used in accordance with the directions in this Instruction Manual ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use
30. The robot contains batteries that are only replaceable by skilled persons To replace the robot's battery, please contact Customer Service
31. If the robot will not be used for a long time, power OFF the robot for storage and unplug the Docking Station
32.
    For the purposes of recharging the battery, only use the detachable supply unit CH1822 provided with the Appliance
    To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation
    To ensure compliance, operations at closer than this distance is not recommended The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter

To disable Wi-Fi module on DEEBOT, power the robot ON
Place the robot on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection Press and hold the AUTO Mode Button on the robot for 20 seconds until DEEBOT emits 3 beeps
To enable Wi-Fi module on DEEBOT, power the robot OFF and then power ON The Wi- Fi module is turned on when DEEBOT is restarted

	Class II
	Short-circuit-proof safety isolating transformer
	Switch mode power supply
	For indoor use only
	Direct current
	Alternating current
