Hikmicro Falcon FQ35, FALCON Series Manual

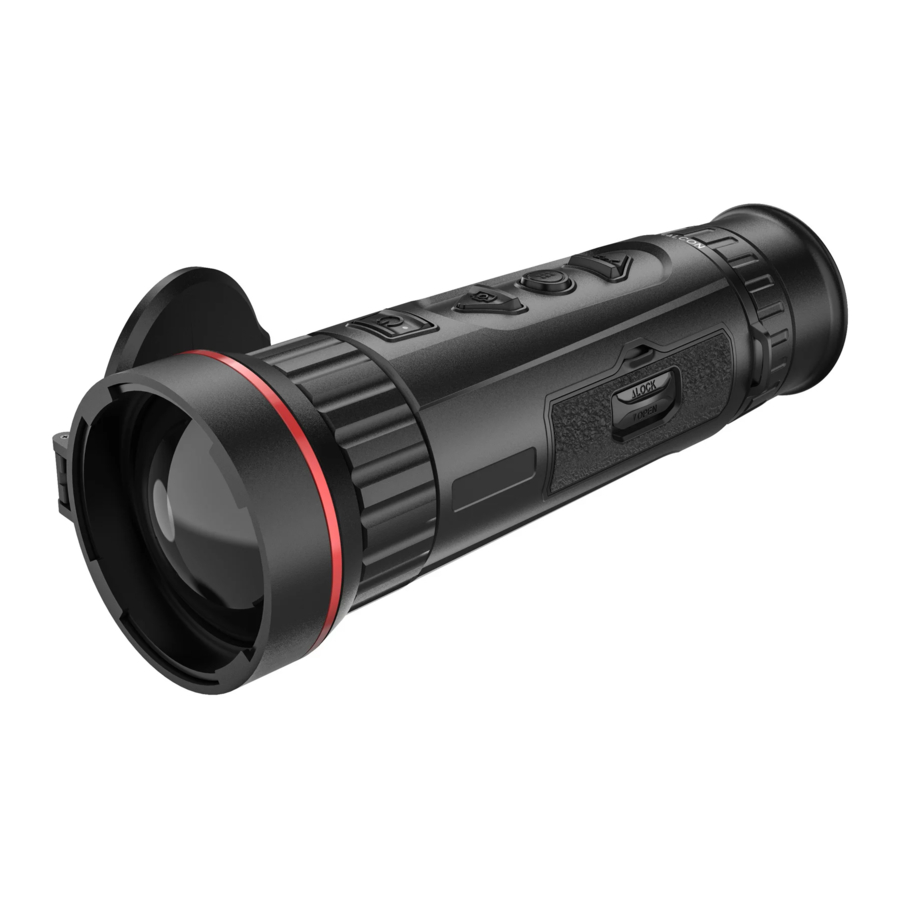

Appearance

1. Lens Cover: Protects the lens.
2. Focus Ring: Adjusts focus to obtain clear targets.
3. Buttons: To set functions and parameters.
4. Diopter Adjustment Ring: Adjusts the dioptric.
5. Eyepiece: The piece placed closest to the eye to view target.
6. Battery Compartment: For holding the battery.
7. Type-C Interface: To connect the device to power supply or transmit data with a type-C cable.
8. Tripod Mount: Connects to the tripod.

Button Description

	Power	Press: Standby mode/wake up device Hold: Power on/off * The power indicator stays solid red when the device is on.
	Capture	Non-Menu Mode: Press: Capture snapshots Hold: Start/stop recording videos Menu Mode: Press: Move up
	Menu	Non-Menu Mode: Press: Switch palettes Hold: Enter menu Menu Mode: Press: Confirm/Set parameters. Hold: Save and exit menu.
	Zoom	Non-Menu Mode: Press: Switch digital zoom Hold: Correct non-uniformity of display (FFC) Menu Mode: Press: Move down

Install Battery

Note:

• Take the battery away if you do not use the device for a long time.
• The battery type is 18650 with the protection board, and the battery size should be within 19 mm × 70 mm. The rated voltage and capacity are 3.6 VDC/3.35 Ah (12.06 Wh).

USB Connection

Steps

1. Turn on the device and lift the type-C interface cover.
2. Connect the device and power adapter with a type-C cable to power on the device.

App Connection

• Firmware Upgrade
• Browse & Save Exciting Moment
• Preview & Remote Control
• How-to Videos
• Repair Records & Warranty Details

Steps

1. Scan the QR code to download and install the app.
   • Android:


   • iOS:



2. Select in the device menu to enable hotspot.
3. Turn on WLAN of your phone and connect to the device hotspot.
   • Hotspot Name: HIK-IPTS Serial No.
   • Hotspot Password: Go to Hotspot in the menu to check the password.
     Note:
     If the password is not displayed, please upgrade the device to the latest version. Or enter the Serial No. as the password.
4. Open the app and connect your phone with the device. You can view the interface of device on your phone.
