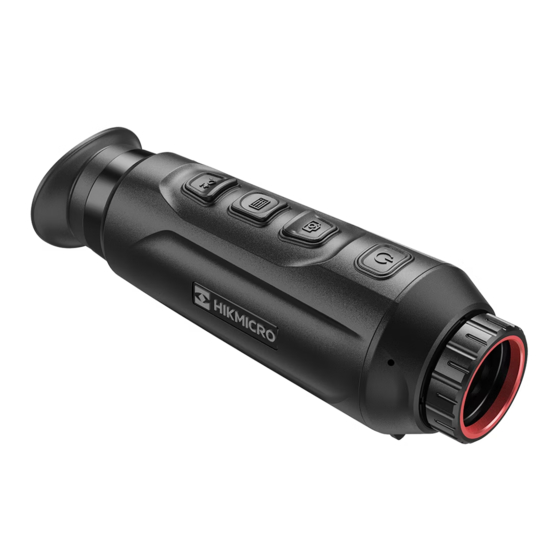

- Page 1 Thermal Monocular HIKMICRO LYNX & LYNX Pro Series User Manual V5.5.54 202212 Contact Us...
-
Page 2: Table Of Contents
Thermal Monocular User Manual Table of Contents Chapter 1 Overview........................1 1.1 Brief Description ........................1 1.2 Function ..........................1 1.3 Appearance ..........................2 1.3.1 Button ......................... 2 1.3.2 Component ......................... 3 Chapter 2 Preparation ........................ 4 2.1 Charge Device ........................4 2.2 Power On/Off ........................ - Page 3 Thermal Monocular User Manual 5.4 Capture and Video ....................... 18 5.4.1 Capture Picture ......................18 5.4.2 Record Video ......................18 5.5 Hot Tracking ......................... 19 5.6 Export Files .......................... 19 Chapter 6 System Settings ......................21 6.1 Synchronize Time ........................ 21 6.2 Language Settings ........................
-
Page 4: Chapter 1 Overview
The device supports DPC (Defective Pixel Correction) and FFC (Flat Field Correction) which can optimize the image quality. Client Software Connection The device can capture snapshots, record videos, and set parameters by HIKMICRO Sight App after being connected to your phone via hotspot. Storage... -
Page 5: Appearance
Thermal Monocular User Manual 1.3 Appearance 1.3.1 Button Figure 1-1 Buttons on the Device Table 1-1 Function of Button Icon Button Function Press: Standby mode/Wake up device Power Hold: Power on/off Press: Capture pictures Capture Hold: Start/stop recording Press: Switch palettes Mode Hold: Enter/exit menu Press: Switch digital zoom... -
Page 6: Component
Thermal Monocular User Manual 1.3.2 Component Figure 1-2 Overview of Component ● Lens Cover: Protects the lens from dust or scratch. ● Diopter Adjustment Knob: Adjusts the dioptric setting. ● Cable Interface: To connect the device to power supply or transmit data with a type-C cable. ●... -
Page 7: Chapter 2 Preparation
Thermal Monocular User Manual Chapter 2 Preparation Take out the device and accessories. Check them with the packaging list to confirm device and accessories are included and available for use. Read the user manual to learn the usage methods and cautions. 2.1 Charge Device After the device starts up, the OSD (on-screen display) shows the battery status. -
Page 8: Power On/Off
Thermal Monocular User Manual 2.2 Power On/Off Power On When the device is connected to cable or the battery is enough, hold for 2 seconds to power on the device. Power Off When the device is turned on, hold for 2 seconds to power off the device. Note ●... -
Page 9: Firmware Status
2.4 Firmware Status 2.4.1 Client Software Connection Connect the device to the HIKMICRO Sight App via hotspot, then you can capture picture, record video, or configure parameters on your phone. Steps 1. -
Page 10: Check Firmware Status
2.4.3 Upgrade Device Upgrade Device via HIKMICRO Sight Before You Start Install HIKMICRO Sight on your phone and connect your device to the app. Steps 1. Tap the device series to enter the device information interface. 2. Tap Device Upgrade to enter the firmware upgrade interface... - Page 11 Thermal Monocular User Manual Figure 2-4 Upgrade Firmware Note The upgrading operation may vary due to app updates. Please take the actual app version for reference. Upgrade Device via PC Before You Start Please get the upgrade package first. Steps 1.
-
Page 12: Chapter 3 Image Settings
Thermal Monocular User Manual Chapter 3 Image Settings You can set palettes, brightness, scenes, FFC (flat field correction), and DPC (defective pixel correction) to display the best image effect. 3.1 Adjust Diopter Make sure the eyepiece covers your eye and aim at the target. Adjust the diopter adjustment knob until the OSD text or image is clear. -
Page 13: Adjust Focus
Thermal Monocular User Manual Figure 3-2 Adjust Diopter 3.2 Adjust Focus Slightly rotate the focus ring to adjust the focus of the objective lens. Figure 3-3 Adjust Objective Lens Note ● DO NOT touch the lens directly with your finger, or place any sharp objects near them. ●... -
Page 14: Adjust Brightness
Thermal Monocular User Manual 3.3 Adjust Brightness Select and press to adjust brightness. In white hot mode, the higher the value of brightness is, the brighter the image is. The image effect in white hot mode is showed as picture below and effect in black hot mode is opposite. - Page 15 Thermal Monocular User Manual Black Hot The hot part is black-colored in view. The higher the temperature is, the darker the color is. Red Hot The hot part is red-colored in view. The higher the temperature is, the redder the color is. Fusion From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple.
-
Page 16: Adjust Digital Zoom
Thermal Monocular User Manual 3.7 Adjust Digital Zoom You can zoom the image by using this function. Press in the view mode, the live view switches between 1 ×, 2 ×, 4 × and 8 ×. Note This function varies according to different camera models. 3.8 Set Picture in Picture Mode Steps 1. -
Page 17: Flat Field Correction
Thermal Monocular User Manual Note If digital zoom is enabled, only the PIP view zooms. 3.9 Flat Field Correction This function can correct non-uniformity of display. Steps 1. Hold to go to the menu. 2. Select and press to switch FFC mode. –... - Page 18 Thermal Monocular User Manual Figure 3-6 Correct Defective Pixel ● If the screen OSD blocks the defective pixel, move the cursor to reach the defective pixel, then the device performs mirror display automatically as shown in the figures below. Figure 3-7 Mirror Effect...
-
Page 19: Chapter 4 Measure Distance
Thermal Monocular User Manual Chapter 4 Measure Distance The device can detect the distance between the target and the observation position. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. Steps 1. -
Page 20: Chapter 5 General Settings
Thermal Monocular User Manual Chapter 5 General Settings 5.1 Set OSD This function can display or hide the OSD information on the live view interface. Steps 1. Hold to show the menu. 2. Select , and press to enter the OSD setting interface. 3. -
Page 21: Burning Prevention
Thermal Monocular User Manual 5.3 Burning Prevention This function can prevent the detector of the thermal channel from being burned. When this function is enabled, the shield will close if the grey scale of the detector reaches a certain value. Steps 1. -
Page 22: Hot Tracking
Thermal Monocular User Manual The left top of image displays the information of recording time. 2. Hold again to stop recording. What to do next For exporting recording files, refer to Export Files. 5.5 Hot Tracking The device can detect the highest temperature spot in the scene and mark it on display. Steps 1. - Page 23 ● When you connect the device to PC for the first time, it installs the drive program automatically. ● You can also export files via HIKMICRO Sight. See the user manual of the app for detailed operation.
-
Page 24: Chapter 6 System Settings
Thermal Monocular User Manual Chapter 6 System Settings 6.1 Synchronize Time Steps 1. Hold to show the menu. 2. Select , and press to enter the time setting interface. 3. Press to switch the time system, and press to select the time and date to be synchronized. -
Page 25: View Device Information
Thermal Monocular User Manual unit for details. Before You Start Connect the device and the display unit via USB to CVBS cable. Make sure the device is turned off when connecting the cable. Steps 1. Hold to show the menu of device. 2. -
Page 26: Chapter 7 Frequently Asked Questions
Thermal Monocular User Manual Chapter 7 Frequently Asked Questions 7.1 Why does the charge indicator flash improperly? Check the following items. 1. Check whether the device is charged with standard power adapter and the charging temperature is above 0 °C (32 °F). 2. -
Page 27: Chapter 8 Appendix
Chapter 8 Appendix 8.1 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HIKMICRO thermal cameras. 8.2 Device Communication Matrix Scan the following QR code to get device communication matrix. -
Page 28: Safety Instruction
Thermal Monocular User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Symbol Conventions The symbols that may be found in this document are defined as follows. - Page 29 Thermal Monocular User Manual ● The built-in battery type is 18650, and the battery size should be 24 mm × 72 mm. The rated voltage and capacity are 3.635 VDC/3350 mAh. ● For long-term storage of the battery, make sure it is fully charged every half year to ensure the battery quality.
- Page 30 Thermal Monocular User Manual power cable, and contact the service center. Manufacture Address Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict, Binjiang District, Hangzhou, Zhejiang 310052, China Hangzhou Microimage Software Co., Ltd. COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement.
-
Page 31: Legal Information
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. - Page 32 Thermal Monocular User Manual CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
-
Page 33: Regulatory Information
Thermal Monocular User Manual Regulatory Information These clauses apply only to the products bearing the corresponding mark or information. FCC Information Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 34 Thermal Monocular User Manual Wi-Fi 2.4 GHz (2.4 GHz to 2.4835 GHz), 20 dBm Use the power adapter provided by a qualified manufacturer. Refer to the product specification for detailed power requirements. Use the battery provided by a qualified manufacturer. Refer to the product specification for detailed battery requirements.
- Page 35 Web: www.hikmicrotech.com E-mail: support@hikmicrotech.com UD31390B...
