Hikmicro Cheetah C32F-RL User Manual

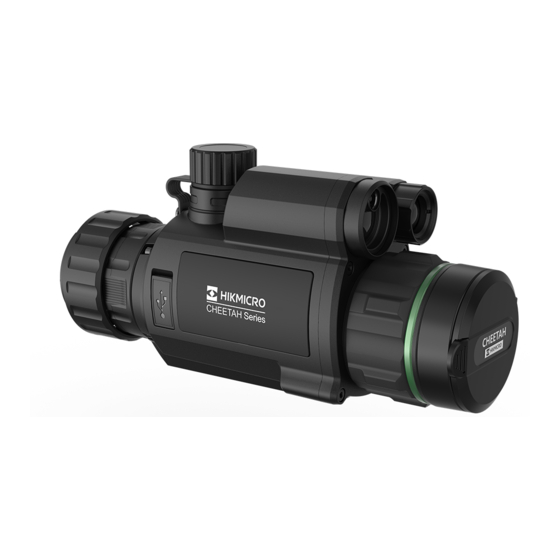

Digital night vision monocular
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Digital Night Vision Monocular
HIKMICRO CHEETAH Series
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cheetah C32F-RL and is the answer not in the manual?

Questions and answers

Related Manuals for Hikmicro Cheetah C32F-RL

Summary of Contents for Hikmicro Cheetah C32F-RL

  • Page 1 Digital Night Vision Monocular HIKMICRO CHEETAH Series User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Digital Night Vision Monocular User Manual NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 4 Digital Night Vision Monocular User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 5 Digital Night Vision Monocular User Manual This product and - if applicable - the supplied accessories too are marked with "UKCA" and comply therefore with the following directives: Radio Equipment Regulations 2017, Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
  • Page 6 Digital Night Vision Monocular User Manual brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. ce matériel est conforme aux limites de dose d'exposition aux rayonnements, CNR-102 énoncée dans un autre environnement.
  • Page 7 Digital Night Vision Monocular User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 8 Digital Night Vision Monocular User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
  • Page 9 Digital Night Vision Monocular User Manual ● DO NOT swallow the battery to avoid chemical burns. ● DO NOT place the battery in the reach of children. ● The battery cannot be charged with external power source directly. ● The device cannot be charged, please use the supplied charger to charge the battery. ●...

  • Page 10: Table Of Contents

    Digital Night Vision Monocular User Manual Table of Contents Chapter 1 Overview ........................1 1.1 Device Description ......................1 1.2 Main Function ........................1 1.3 Appearance ........................1 Chapter 2 Preparation ........................3 2.1 Cable Connection ......................3 2.2 Install Adapter ........................3 2.3 Remove Adapter .......................
  • Page 11 Digital Night Vision Monocular User Manual Chapter 6 Client Software Connection ..................14 Chapter 7 Language Settings ......................15 Chapter 8 Unit Settings ........................ 16 Chapter 9 Maintenance ........................ 17 9.1 View Device Information ....................17 9.2 Upgrade Device ....................... 17 9.3 Restore Device ........................

  • Page 12: Chapter 1 Overview

    ● Client Software Connection: The device can capture snapshots, record videos, and set parameters by HIKMICRO Sight App after being connected to your phone via hotspot. ● Reticle Correction: The reticle helps you to aim at the target fast and accurately.
  • Page 13 Digital Night Vision Monocular User Manual Figure 1-1 Device Appearance Table 1-1 Buttons and Components Description Function Lens Cover Protect the lens. Focus Ring Adjust the focus to find clear targets. ● Press: standby mode/Wake up device Power Key ● Hold: power on/off Mode Key Hold to switch display modes.

  • Page 14: Chapter 2 Preparation

    Digital Night Vision Monocular User Manual Chapter 2 Preparation 2.1 Cable Connection Connect the device and power adaptor with a type-C cable to power on the device. Alternatively, connect the device and PC to export files. Steps 1. Lift the cable interface cover. 2.

  • Page 15: Remove Adapter

    Digital Night Vision Monocular User Manual Figure 2-2 Install Adapter Note The selectable types of the adapter are 38, 40, 50, and 62. 2.3 Remove Adapter Steps 1. Rotate only the locking ring clockwise, and make sure the device or other parts of the adapter are not rotated or moved.

  • Page 16: Install Daylight Scope

    Digital Night Vision Monocular User Manual 2. Insert the battery into the battery compartment with the positive mark inward. Figure 2-4 Install Battery 3. Turn the battery cover clockwise to tighten it. Figure 2-5 Close Battery Cover Note Remove the battery from the battery compartment if the device is not used for a long time. 2.5 Install Daylight Scope You can use the device together with a daylight scope to view the target clear in daytime.

  • Page 17: Power On/Off

    Digital Night Vision Monocular User Manual Figure 2-6 Install Daylight Scope 2.6 Power On/Off Power On When the battery is sufficiently charged, hold for about 2 seconds to power on the device. Power Off When the device is turned on, hold for 2 seconds to power off the device.
  • Page 18 Digital Night Vision Monocular User Manual Figure 2-7 Menu Interface...

  • Page 19: Chapter 3 Image Settings

    Digital Night Vision Monocular User Manual Chapter 3 Image Settings 3.1 Adjust Focus Steps 1. Power on the device. 2. Hold the device and make sure the eyepiece covers your eye. 3. Adjust the focus ring until the image is clear. Figure 3-1 Adjust Focus Note When focusing, do not touch the surface of lens to avoid smearing the lens.

  • Page 20: Set Display Mode

    Digital Night Vision Monocular User Manual In menu mode, rotate the wheel to select and press the wheel to enable this function. 3.5 Set Display Mode You can select different display modes in different scenes. Hold in live view interface to switch display modes. Day, night, defog, and auto are selectable. Night Auto Defog...

  • Page 21: Calibrate Image

    Digital Night Vision Monocular User Manual 3.7 Calibrate Image The device can adjust the thermal view to make it consistent with the optical view. Steps 1. Hold the wheel to enter the image calibration interface. 2. Rotate the wheel to select the coordinates, and press the wheel to confirm. 3.

  • Page 22: Chapter 4 Measure Distance

    Digital Night Vision Monocular User Manual Chapter 4 Measure Distance The device can detect the distance between the target and the observation position. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected.

  • Page 23: Chapter 5 Picture And Video

    Digital Night Vision Monocular User Manual Chapter 5 Picture and Video You can manually record video or capture picture when displaying live view. 5.1 Capture Picture In the main live view interface, press and wheel at the same time to capture images. Note When capturing succeeds, the image freezes for 1 second and a prompt shows on the display.

  • Page 24: Export Files

    Digital Night Vision Monocular User Manual seconds after the recoil-activation. Steps 1. In the main live view, hold the wheel to show the menu. 2. Rotate the wheel to select 3. Press the wheel to switch the prerecording time. 7 s, 10 s, and 15 s are selectable. 4.

  • Page 25: Chapter 6 Client Software Connection

    Digital Night Vision Monocular User Manual Chapter 6 Client Software Connection Connect the device to the HIKMICRO Sight App via hotspot, then you can capture picture, record video, or configure parameters on your phone. Steps 1. Hold the wheel to show the menu of device.

  • Page 26: Chapter 7 Language Settings

    Digital Night Vision Monocular User Manual Chapter 7 Language Settings You can select the device language in this function. Steps 1. Hold the wheel to show the menu. 2. Rotate the wheel to select , and press the wheel to enter the language configuration interface.

  • Page 27: Chapter 8 Unit Settings

    Digital Night Vision Monocular User Manual Chapter 8 Unit Settings You can switch the unit for the distance measurement function and the reticle function. Steps 1. Hold the wheel to show the menu. 2. Rotate the wheel to select , and press the wheel to switch the unit. Yard and m are selectable.

  • Page 28: Chapter 9 Maintenance

    Digital Night Vision Monocular User Manual Chapter 9 Maintenance This part introduces the operation of checking device information, upgrading device, and restoring to defaults, etc. 9.1 View Device Information Steps 1. Hold the wheel to show the menu of device. 2.

  • Page 29: Chapter 10 Frequently Asked Questions

    Digital Night Vision Monocular User Manual Chapter 10 Frequently Asked Questions 10.1 Why is the monitor off? Check whether the device is off-battery. Connect the device to power supply and turn it on to check the monitor. 10.2 The image is not clear, how to adjust it? Adjust the diopter adjustment knob until the image is clear.

  • Page 30: Chapter 11 Appendix

    This function is only supported by certain models. Please take the actual device for reference. 11.2 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HIKMICRO thermal cameras. 11.3 Device Communication Matrix Scan the following QR code to get device communication matrix.
  • Page 31 UD30131B...

This manual is also suitable for:

Cheetah c32f-rCheetah c32f-lCheetah c32f
