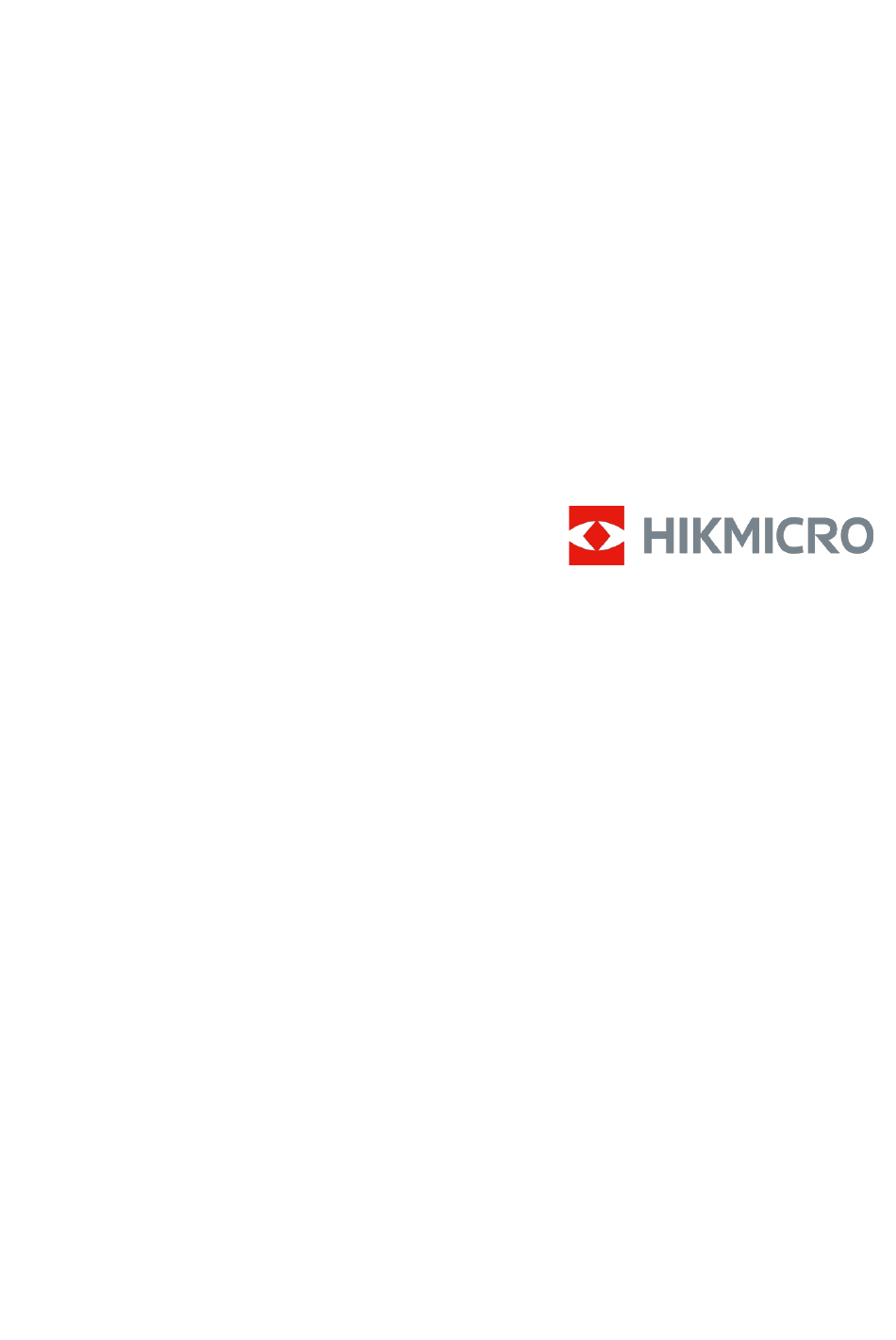

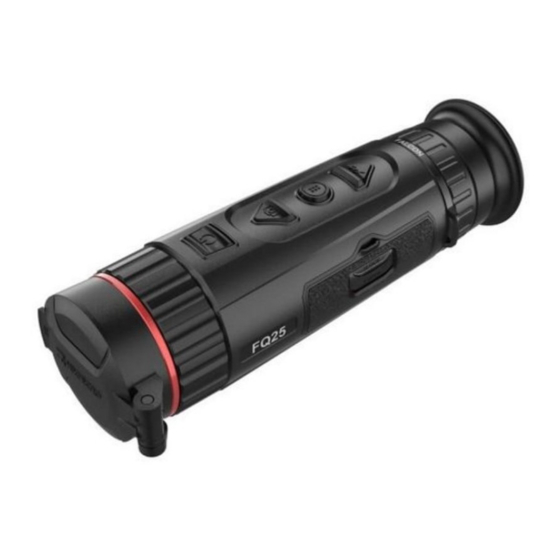

  • Page 1 Thermal Telescope HIKMICRO FALCON Series User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Thermal Image Scope User Manual CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
  • Page 4 Thermal Image Scope User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Thermal Image Scope User Manual Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. Directive 2012/19/EU (WEEE Directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 6 Thermal Image Scope User Manual ce matériel est conforme aux limites de dose d'exposition aux rayonnements, CNR-102 énoncée dans un autre environnement. B 급 기기 : 이 기기는 가정용 (B 급 ) 전자파적합기기로써 주로 가정에서 사용하는 것을 목적으로 하며 , 모든 지역에서 사용할 수 있습니다 .
  • Page 7 Thermal Image Scope User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 8 Thermal Image Scope User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
  • Page 9 Thermal Image Scope User Manual We shall not assume any responsibility for problems caused by unauthorized repair or maintenance. ● Wipe the device gently with a clean cloth and a small quantity of ethanol, if necessary. ● If the equipment is used in a manner not specified by the manufacturer, the protection provided by the device may be impaired.

  • Page 10: Table Of Contents

    Thermal Telescope User Manual Table of Contents Chapter 1 Overview ........................1 1.1 Device Description ......................1 1.2 Main Function ........................1 1.3 Appearance ........................1 Chapter 2 Preparation ........................3 2.1 Cable Connection ......................3 2.2 Install Battery ........................3 2.3 Power On/Off ........................
  • Page 11 Thermal Telescope User Manual 7.4 Export Files ........................17 Chapter 8 Client Software Connection ..................18 Chapter 9 CVBS Output ........................ 19 Chapter 10 Language Settings ...................... 20 Chapter 11 Unit Settings....................... 21 Chapter 12 Maintenance ......................22 12.1 View Device Information ....................22 12.2 Upgrade Device ......................

  • Page 12: Chapter 1 Overview

    ● Client Software Connection: The device can capture snapshots, record videos, and set parameters by HIKMICRO Sight App after being connected to your phone via hotspot. ● Image Correction: The device supports DPC (Defective Pixel Correction) and FFC (Flat Field Correction) which can optimize the image quality.
  • Page 13 Thermal Telescope User Manual Figure 1-1 Buttons and Interfaces Table 1-1 Button and Interface Description Component Function Lens Cover Protect the lens. Focus Ring Adjust the focal length. ● Press: Standby mode/wake up device Power Key ● Hold: Power on/off ●...

  • Page 14: Chapter 2 Preparation

    Thermal Telescope User Manual Chapter 2 Preparation 2.1 Cable Connection Connect the device and power adaptor with a type-C cable to power on the device. Alternatively, connect the device and PC to export files. Figure 2-1 Cable Connection 2.2 Install Battery Insert the battery into the battery compartment.

  • Page 15: Power On/Off

    Thermal Telescope User Manual Figure 2-3 Open Battery Compartment Cover 3. Insert the battery into the battery compartment as the positive and negative marks indicate. Figure 2-4 Install Battery 4. Close the battery compartment cover and lock it. Figure 2-5 Complete Installation Take the battery away if the device is not used for a long time.

  • Page 16: Menu Description

    Thermal Telescope User Manual Auto Power Off Set the auto power off time for your device, and then the device will automatically shut down as the set time. Steps 1. Hold to go to the menu. 2. Rotate the wheel to select , and press to select the auto power off time as required.

  • Page 17: Chapter 3 Image Settings

    Thermal Telescope User Manual Chapter 3 Image Settings 3.1 Adjust Diopter Steps 1. Power on the device. 2. Hold the device and make sure the eyepiece covers your eye. 3. Adjust the diopter adjustment ring until the OSD text or image is clear. Figure 3-1 Adjust Diopter Note When adjusting diopter, DO NOT touch the surface of lens to avoid smearing the lens.

  • Page 18: Adjust Brightness

    Thermal Telescope User Manual Figure 3-2 Adjust Focus Note When adjusting focus, DO NOT touch the surface of lens to avoid smearing the lens. 3.3 Adjust Brightness In the menu mode, select and press to adjust brightness. In white hot mode, the higher the value of brightness is, the brighter the image is.

  • Page 19: Set Palettes

    Thermal Telescope User Manual – refers to recognition mode and is recommended in normal scene. – refers to jungle mode and is recommended in hunting environment. 3. Hold to save settings and exit. 3.6 Set Palettes You can select different palettes to display the same scene in different effects. In the live view interface, press to switch palettes.

  • Page 20: Correct Defective Pixel

    Thermal Telescope User Manual Fusion From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple. 3.7 Correct Defective Pixel The device can correct the defective pixels on the screen which are not performed as expected. Steps 1.

  • Page 21: Image Pro

    Thermal Telescope User Manual Figure 3-5 Correct Defective Pixel ● If the screen OSD blocks the dead pixel, the device performs mirror display automatically. Figure 3-6 Mirror Effect 3.8 Image Pro Image pro refers to image detail enhancement. When you enable this function, the details of whole live view interface will be enhanced.

  • Page 22: Flat Field Correction

    Thermal Telescope User Manual 3.9 Flat Field Correction This function can correct non-uniformity of display. Steps 1. Hold to go to the menu. 2. Select and press to switch FFC mode. – Manual: Hold in live view to correct the non-uniformity of display. –...

  • Page 23: Set Brand Logo

    Thermal Telescope User Manual 3.12 Set Brand Logo You can add brand logo on the live view interface. Steps 1. Hold to show the menu. 2. Select 3. Press to enable Brand Logo. 4. Hold to save the settings and exit. Result The brand logo is displayed at the bottom right of the image.

  • Page 24: Chapter 4 Burning Prevention

    Thermal Telescope User Manual Chapter 4 Burning Prevention This function can prevent the detector of the thermal channel from being burned. When you enable this function, the shield will close if the grey scale of the detector reaches a certain value. Steps 1.

  • Page 25: Chapter 5 Hot Tracking

    Thermal Telescope User Manual Chapter 5 Hot Tracking The device can detect the highest temperature spot in the scene and mark it on display. Steps 1. Hold to show the menu. 2. Select and press to mark the spot of highest temperature. 3.

  • Page 26: Chapter 6 Measure Distance

    Thermal Telescope User Manual Chapter 6 Measure Distance The device can detect the distance between the target and the observation position. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. Steps 1.

  • Page 27: Chapter 7 Picture And Video

    Thermal Telescope User Manual Chapter 7 Picture and Video You can manually record video or capture picture when displaying live view. 7.1 Capture Picture On the main live view page, press to capture picture. Note When capturing succeeds, the image freezes for 1 second and a prompt shows on the display. For exporting captured pictures, refer to Export Files.

  • Page 28: Export Files

    Thermal Telescope User Manual The left top of image displays the information of recording time. 2. Hold again to stop recording. What to do next For exporting recording files, refer to Export Files. 7.4 Export Files This function is used to export recorded videos and captured pictures. Before You Start ●...

  • Page 29: Chapter 8 Client Software Connection

    ● Hotspot Password: the last 9 digits of serial No. 4. Search the HIKMICRO Sight App on App Store (iOS System) or Google Play™ (Android System) to download it, or scan the QR code to download and install the app.

  • Page 30: Chapter 9 Cvbs Output

    Thermal Telescope User Manual Chapter 9 CVBS Output The CVBS output is used to debug the device. You can also view the device image on the display unit for details. Before You Start Connect the device to the display unit via CVBS interface of the aviation plug. Steps 1.

  • Page 31: Chapter 10 Language Settings

    Thermal Telescope User Manual Chapter 10 Language Settings You can select the device language in this function. Steps 1. Hold to show the menu. 2. Select , and press to enter the language configuration interface. 3. Press to select the language as required, and press to confirm.

  • Page 32: Chapter 11 Unit Settings

    Thermal Telescope User Manual Chapter 11 Unit Settings You can switch the unit for the distance measurement function. Steps 1. Hold to show the menu. 2. Select , and press to switch the unit. m and yard are selectable. 3. Hold the save settings and exit.

  • Page 33: Chapter 12 Maintenance

    Thermal Telescope User Manual Chapter 12 Maintenance This part introduces the operation of checking device information, upgrading device, and restoring to defaults, etc. 12.1 View Device Information Steps 1. Hold to show the menu of device. 2. Select , and press .

  • Page 34: Chapter 13 Frequently Asked Questions

    Thermal Telescope User Manual Chapter 13 Frequently Asked Questions 13.1 Why is the monitor off? Check whether the device is off-battery. Check the monitor after charging the device for 5 minutes. 13.2 The image is not clear, how to adjust it? Adjust the diopter adjustment knob until the image is clear.

  • Page 35: Chapter 14 Appendix

    Chapter 14 Appendix 14.1 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HIKMICRO thermal cameras. 14.2 Device Communication Matrix Scan the following QR code to get device communication matrix.
