Summary of Contents for Vivo MOUNT-MAG01

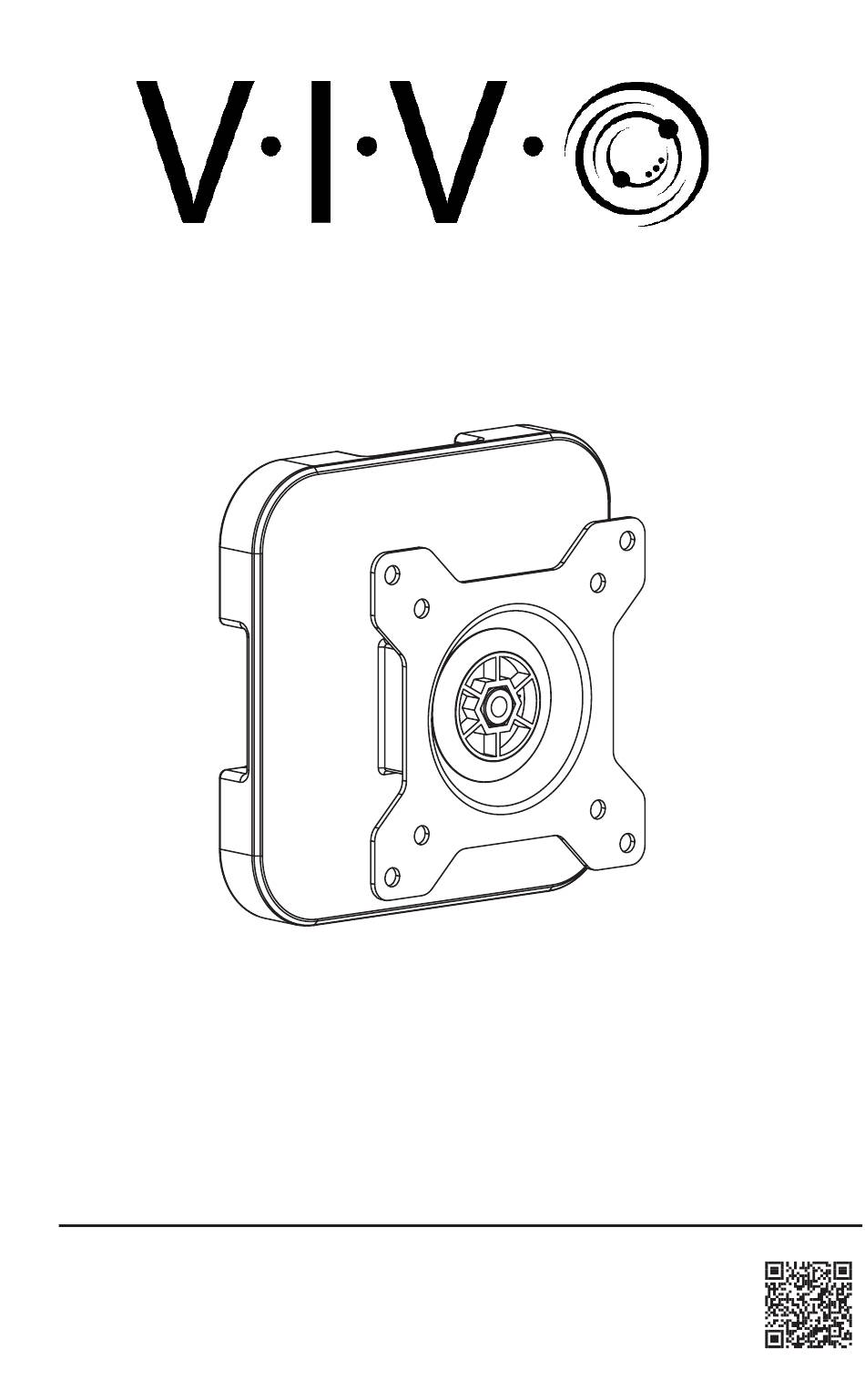

- Page 1 Magnetic Monitor Mount SKU: MOUNT-MAG01 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-mag01...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) Mount Included Hardware & Tools Tools Needed: M-A (x4) M-B (x4) M-C (x4) Phillips Screwdriver M4x12mm M5x12mm M5 Washer Screw Screw... -
Page 4: Important Notes
** STOP HERE ** PLEASE NOTE WEIGHT CAPACITY MAGNETS MUST BE INSTALLED BASED ON YOUR INTENDED MOUNTING SURFACE THICKNESS. Weight Capacity by Material Thickness Steel Weight Magnet Mounting Gauge Capacity Count Surface Examples 19ga to 17ga Kitchen Appliances, HVAC 8.8lbs (4kgs) 5-6 Magnets 1mm to 1.5mm Ducts, Metal Pegboards... - Page 5 Preassembly for 14 Gauge (& Thicker) Surfaces For surfaces 14 gauge and thicker, one magnet may need to be removed for ease of monitor adjustment and placement. Remove One Magnet from Mount Remove the Bottom Center Magnet (B1) from the backside of the Mount using a Phillips screwdriver and set aside.
-
Page 6: Assembly Steps
ASSEMBLY STEPS STEP 1 Use a Phillips screwdriver to loosen the Security Screw. Separate VESA Bracket (A) into VESA Plate (A1) and Mount (A2). Security Screw... - Page 7 STEP 2 Attach VESA Plate (A1) to the back of your monitor using appropriate Screws (M-A,M-B) and Washers (M-C). Mounting Slot Ensure that the Mounting Slot points toward the bottom of your TV.
- Page 8 STEP 3 Attach Mount (A2) to the wall with the channel opening facing up and ensure it is secured firmly. PINCH POINT RISK DO NOT place your hands in between the magnets and the magnetic surface to prevent injury. DO NOT USE ON ROUGH SURFACES Product is designed for smooth surfaces ONLY and SHOULD NEVER BE APPLIED TO corrugated sheet metal, diamond plate, textured applicances, coarse coated beams, or other rough surfaces.
- Page 9 STEP 4 Slide your monitor with VESA Plate (A1) onto the Magnet. Secure by tightening the Security Screw on the side of the Magnet using a Phillips screwdriver. USE CAUTION DURING FIRST USE, ensuring the Mount and monitor are supported until you have determined that the Mount has secure hold.
- Page 10 STEP 5 Mount is Too Strong or Too Light Adjust Magnets Using Steps Below 5.1 Remove Monitor & Mount Remove monitor from the Mount, then place hands within grab areas on Mount to gently pry away from surface. 5.2 Remove 1 Magnet Using a Phillips screwdriver, remove one Magnet from the backside of the Mount, according to the patterns shown on the next page, then set aside.
- Page 11 Magnet Patterns WARNING: STRONG MAGNETIC FORCE To prevent serious injury, NEVER set Magnets face down on the Mount. Use caution when removing and setting aside Magnets. STAY CLEAR of magnetic materials when the magenet is removed.
- Page 12 LAST UPDATED: 8/23/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
