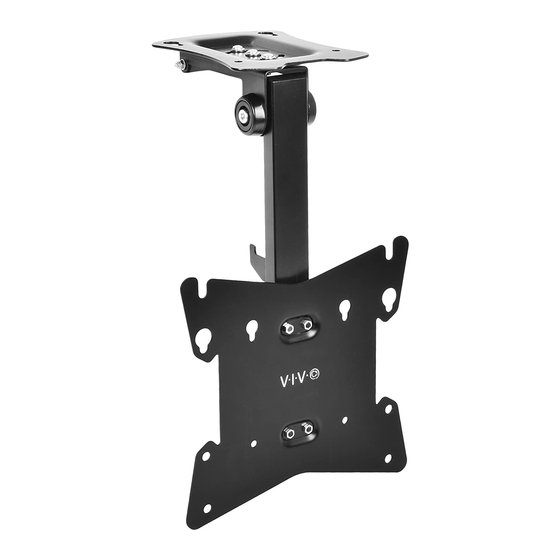

Flip Down Ceiling TV and Monitor Mount
Instruction Manual
SKU: MOUNT-M-FD37B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-m-fd37b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-M-FD37B
Summary of Contents for Vivo MOUNT-M-FD37B
- Page 1 Flip Down Ceiling TV and Monitor Mount Instruction Manual SKU: MOUNT-M-FD37B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-m-fd37b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR CEILING CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for concrete ceilings as well. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY.
- Page 3 ASSEMBLY STEPS STEP 1 Remove the four bolts from mount (A) with 4mm Allen wrench (B) as shown in diagram. Seprate VESA plate from mount. STEP 2 Push arm against ceiling plate of mount (A) to release lock and pull the arm down.
- Page 4 STEP 3 OPTION A: Wood Beam Ceiling Hold mount (A) to mounting surface and mark drill holes with pencil. Drill 2.5” (64mm) deep holes using a 1/8” (3mm) drill bit. Insert screws (W-A) into front two holes, leaving 3mm of thread exposed. Slide mount onto front two screws.
- Page 5 STEP 4 Mount detached VESA plate to TV with screws (M-A, M-B, M-C, or M-D) depending on your TV’s needs as shown in diagrams. STEP 5 Slide TV with VESA plate onto mount (A) and secure with previously removed bolts. Tighten with 4mm Allen wrench (B).
- Page 6 STEP 6 Adjust swivel hinge with 6mm Allen wrench (C). Adjust TV height by loosening bolts with 4mm Allen wrench (B), then tighten at desired height.
- Page 7 STEP 7 Push the TV all the way up to the ceiling to engage the lock, securing the TV in the raised position. Push up again to disengage the lock and lower the TV. 0°/-90°...
