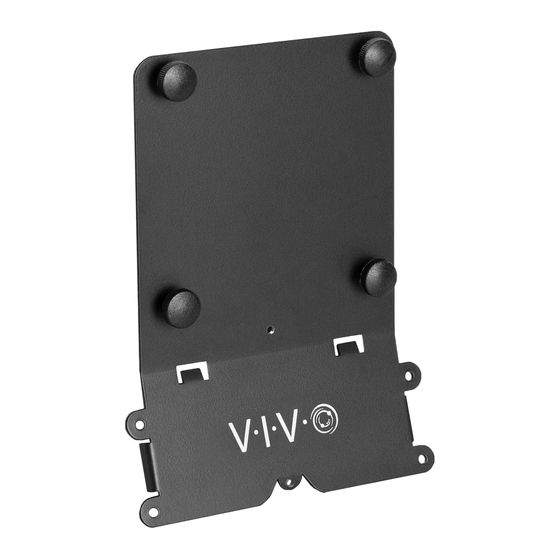

- Page 1 VESA Adapter Designed for M1 iMac SKU: MOUNT-MACM1 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-macm1...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) Part Name Part Name Included Hardware & Tools S-A (x4) S-B (x4) S-C (x1) S-D (x1) S-E (x2) M4x12 M4x8 M4x22 M4x37 Screw Pad Thumbscrew Thumbscrew Thumbscrew Thumbscrew... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Partially insert M4x22mm Thumbscrew (S-C) into the center hole of VESA Adapter Plate (A), and M4x37mm Thumbscrew (S-D) into the lower hole of VESA Adapter Plate (A). Press Screw Pads (S-E) onto the ends of the Thumbscrews. S-C (x1) S-D (x1) S-E (x1) - Page 5 STEP 2 Assemble VESA Adapter Plate (A) and Clamp Plate (B) to the base of the iMac using M4x12mm Thumbscrews (S-A). NOTE: The Clamp Plate should be pushed all the way up underneath the iMac base, and the curved tabs of the VESA Adapter Plate should be resting over the curved top of the base. S-A (x4)
- Page 6 STEP 3 Install VESA Adapter (A) with iMac to the VESA mount using M4x8mm Thumbscrews (S-B). S-B (x4)
- Page 7 STEP 4 Use M4x22mm and M4x37mm Thumbscrews (S-C and S-D) to adjust the angle of the iMac screen. They may be left partially loose to work as a limiter while allowing the screen to tilt freely, or tightened to hold a specific tilt angle.
- Page 8 LAST UPDATED: 11/14/23 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
