KÜBLER SPORT KOMPAKT+ F1782 Assembly Instructions Manual

Soccer goal in ground sockets with free hanging net

Advertisement

Quick Links

Assembly instructions
Soccer goal in ground sockets
with free hanging net
F1782, F1783
Cat.-no.: 8981, 89815
Thanks for choosing Haspo equipment. In order to enjoy this product please note the
following instructions for safety, use and maintenance before assembly.

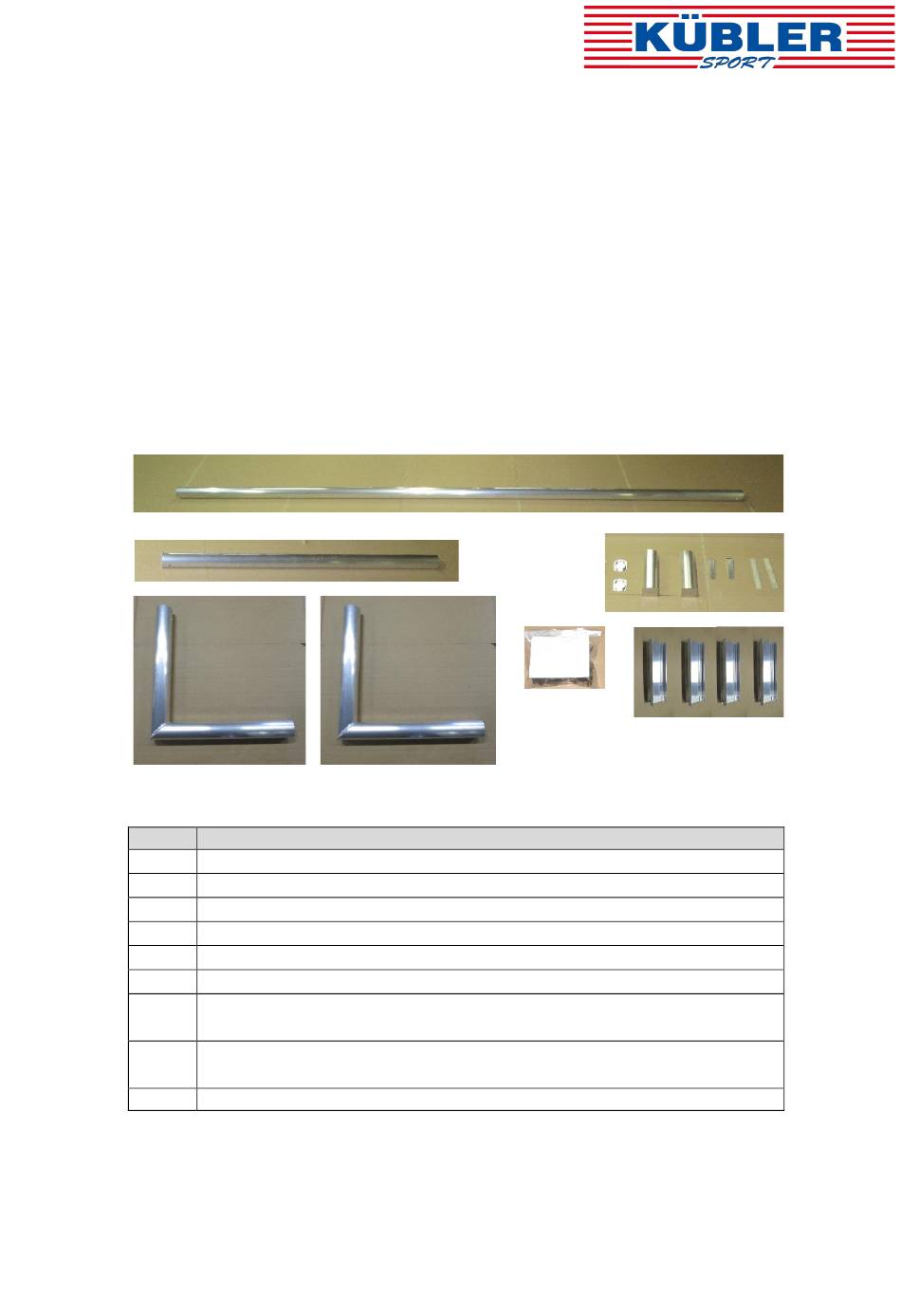

1. Scope of delivery:
Please check the following content before assembly.
Total Content:
Piece Description
1
crossbar, length 5.90m
2
upright, length 2.23m
2
corner connection, length 0.81 / 0.81m
4
joint
2
ground socket
2
cap for ground sockets
2
wedge of aluminium tube 50 x 20 x 2mm, length 240mm, to fix
uprights in ground sockets
2
aluminium flat wedge 50 x 5mm, length 435mm, to fix uprights
in ground sockets
1
accessories
KOMPAKT +
Kübler
7

Advertisement

loading
Need help?

Need help?

Do you have a question about the KOMPAKT+ F1782 and is the answer not in the manual?

Questions and answers

Summary of Contents for KÜBLER SPORT KOMPAKT+ F1782

  • Page 1 Assembly instructions Soccer goal in ground sockets KOMPAKT + with free hanging net F1782, F1783 Cat.-no.: 8981, 89815 Kübler Thanks for choosing Haspo equipment. In order to enjoy this product please note the following instructions for safety, use and maintenance before assembly. 1.
  • Page 2 Accessories: Piece Description net holder safety hexagon socket screw DIN 7991, M 8 x 20 hexagon screwdriver DIN 911 SW 5 assembly instruction 2. Assembly of the goal: We recommend to mount the goal on the grass or on a suitable surface to avoid damages of the profiles.
  • Page 3 Then push uprights and crossbar on the mounted joints at the corners. The other screw connections are adjusted to the possibly different material expansion of the parts to be screwed together. first unscrew the screws already fixed to the corner profiles. Then insert all hexagonal locking screws, DIN 7991, M8 x 20mm crosswise in alternation through the lateral holes in the profiles and screw them loosely into the threads of the connectors.
  • Page 4 Example for foundation: construction must coordinated on location! The foundation drawing (form and size) is only a recommendation. The construction must be coordinated on location with a specialist company depending on the local conditions and the planned floor structures. d) Using of wedges: For Fixing of the uprights into ground sockets use the special wedges.
  • Page 5 4. Assembly of the net: The net is not part of the delivery. Make sure that the groove of the goal is clean and all packing material or other material is removed so that the assembly is possible without any problems. Now fix and adjust the net rope in the groove.
  • Page 6 5. Maintenance, storage and safety instructions: Installation work (incl. preparatory work) for fixed anchoring systems (depending on the product for ground sockets, ground anchors or other installation parts), should always be carried out together with the assembled product and not in advance. Work only on the basis of this assembly instruction may be incorrect due to local conditions, constructional conditions and manufacturing tolerances.

This manual is also suitable for:

Kompakt+ f1783
