User manual

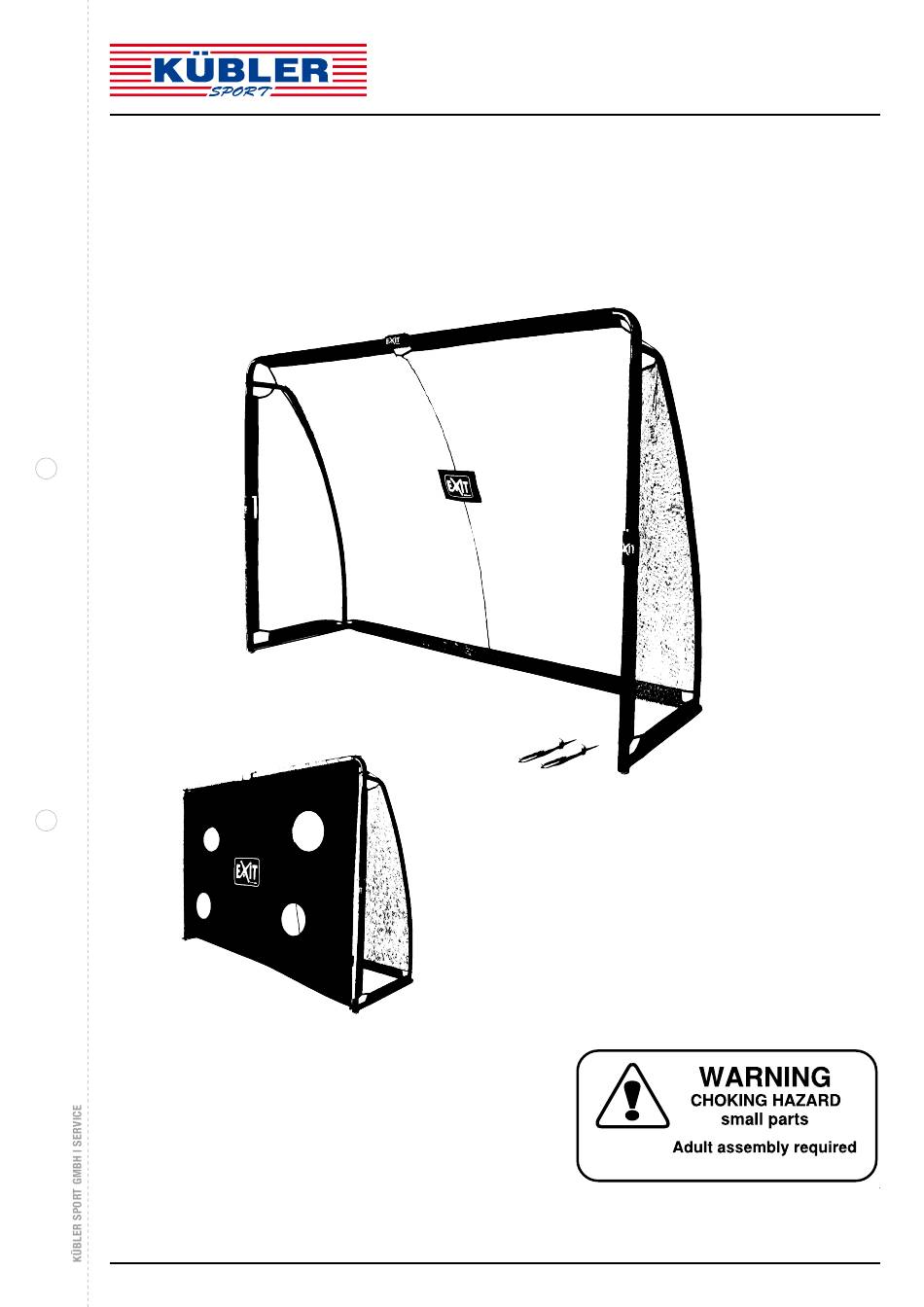

ASSEMBLY AND OPERATiON iNSTRUCTiON | D5093
Gebrauchsanweisung
Gebruikshandleiding
Mode d'emploi
Finta
Soccer goal
retain for future reference
Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de
Seite 1 von 17
