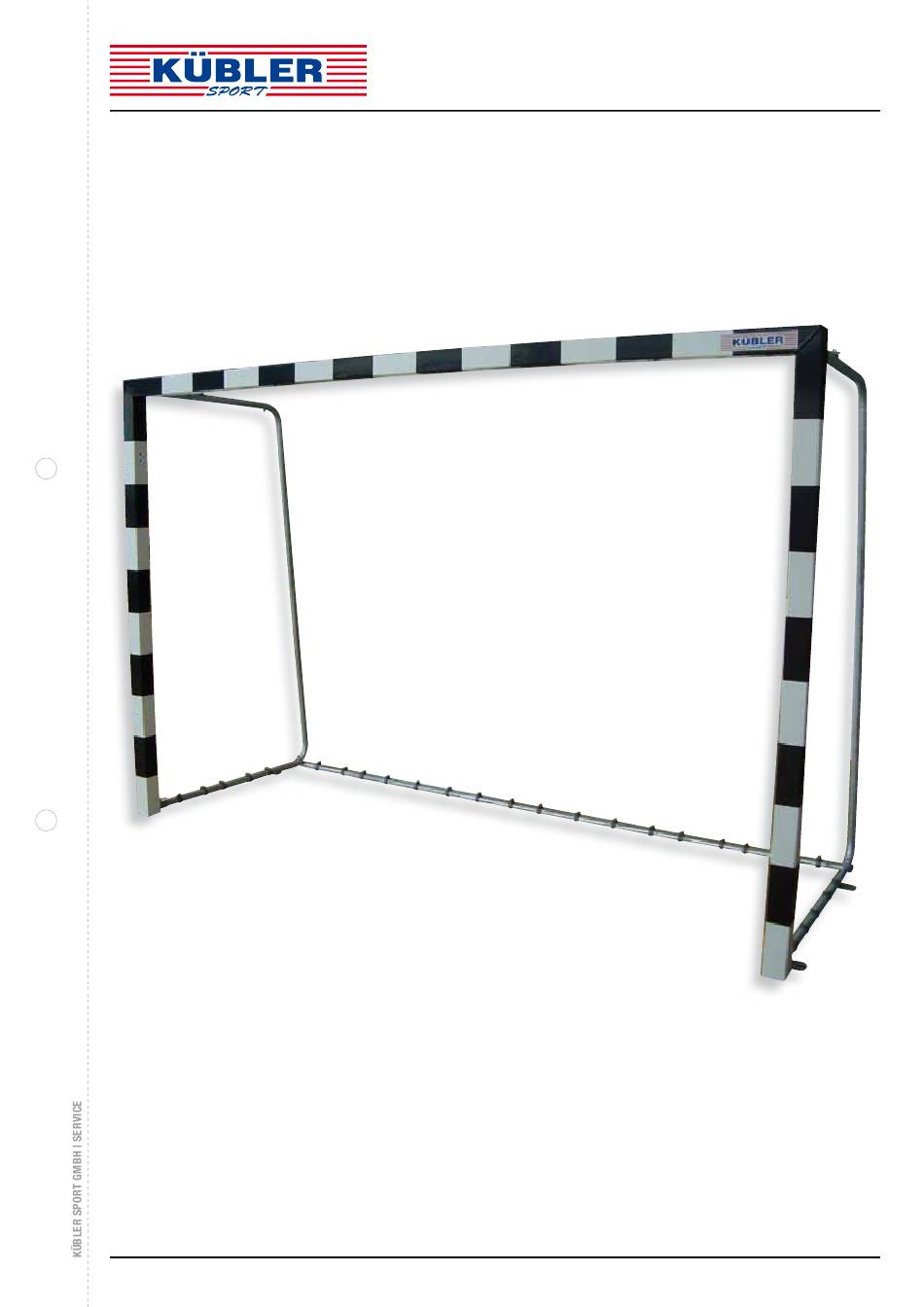

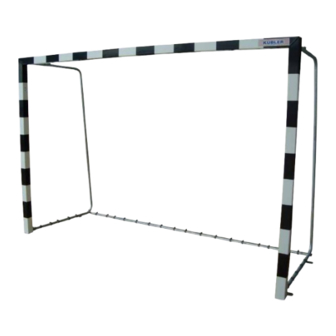

- Page 1 KÜBLER SPORT GMBH | SERVICE INSTALLATION INSTRUCTION | HANDBALL GOALS Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.com Page 1 von 5...
- Page 2 KÜBLER SPORT GMBH | SERVICE INSTALLATION INSTRUCTION | HANDBALL GOALS Place the posts and the horizontal crossbar with the nut facing up on the fl oor, now put the sliding-blocks in to the groove of the posts and crossbar. IMPORTANT! Also put in the sliding block-screw! IMPORTANT! Place the sliding-blocks in to the crossbar and post groo-...
- Page 3 KÜBLER SPORT GMBH | SERVICE INSTALLATION INSTRUCTION | HANDBALL GOALS Place the angle, which is for the fi xation of the net supporter, in to the nut and screw it together with the sliding blocks. Corner angle left Corner angle right Allen screw M8 x 15 mm Slide the sliding blocks 85 mm x 15 mm in to the post from the bottom.
- Page 4 KÜBLER SPORT GMBH | SERVICE INSTALLATION INSTRUCTION | HANDBALL GOALS Now the net supporters will be screwed on to the goal frame. But before palce the net-rings on the net supporters. 5 net-rings at the fl oor side. IMPORTANT! Place the net-rings on the net supporters before screw them together.
- Page 5 KÜBLER SPORT GMBH | SERVICE INSTALLATION INSTRUCTION | HANDBALL GOALS Now together the cross-connectors from the net supporters to the crossbar. Rubber-buffer Allen screw M8 x 80 mm cross-connector left and right Nut M8 Finally screw the fl oor tube on the net supporters. Before screw it together put on the net-rings. IMPORTANT! Put on the net-rings be- fore screwing it together!
