Assembly instructions
Soccer goal in ground sockets
Cat.-no.: 2577106
F1780, F1781
Thanks for choosing Sport-Thieme equipment. In order to enjoy this product please
note the following instructions for safety, use and maintenance before assembly.

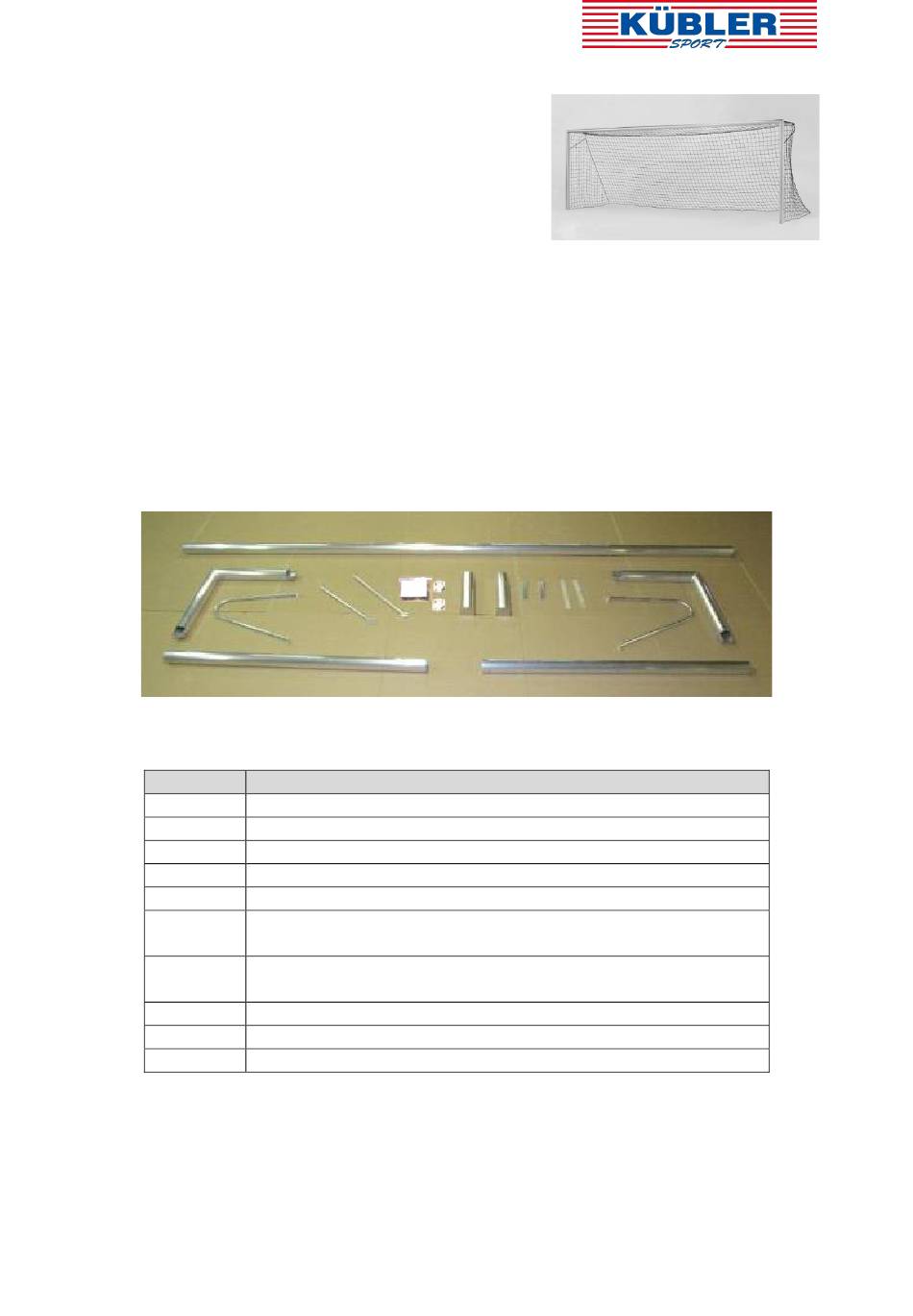

1. Scope of delivery:
Please check the following content before assembly.
Total Content:
Piece
1
crossbar, length 5.90m
2
upright, length 2.23m
2
corner connection, length 0.81 / 0.81m
2
ground socket
2
cap for ground sockets
2
wedge of aluminium tube 50 x 20 x 2mm, length 240mm,
to fix uprights in ground sockets
2
aluminium flat wedge 50 x 5mm, length 435mm, to fix
uprights in ground sockets
2
net hoop (1 left / 1 right)
2
net hoop brace
1
accessories
KOMPAKT+
Kübler
Description
8

Advertisement

loading
Need help?

Need help?

Do you have a question about the KOMPAKT+ F1780 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KÜBLER SPORT KOMPAKT+ F1780

  • Page 1 Assembly instructions Soccer goal in ground sockets Cat.-no.: 2577106 KOMPAKT+ F1780, F1781 Kübler Thanks for choosing Sport-Thieme equipment. In order to enjoy this product please note the following instructions for safety, use and maintenance before assembly. 1. Scope of delivery: Please check the following content before assembly.
  • Page 2 Accessories: Piece Description net holder nut, 20 mm, M 6 safety hexagon socket screw DIN 7991, M 8 x 20 safety hexagon socket cylinder screw DIN 912, M 6 x 20 hexagon cylinder screw DIN 912, M 6 x 40 cap nut DIN 985, M 6 washer, DIN 9021, Ø...
  • Page 3 a) At first push from both sides 2 nuts 20 mm, M6 into the grooves of both corner connections. b) Lay goal profiles on the ground. Then stick uprights and crossbar on corner connection elements (should it be difficult to stick connection elements into the profiles we recommend to use a screw clamp and press the profile inward carefully so that connection elements easily slide into the profile).
  • Page 4 c) Set net hoops on both sides on the groove of upper corners and place nuts of point a) below holes of the welded fixing plates. 2 nuts each below the corner plate and 1 nut below the straight plate. Then stick washers DIN 9021, 7.4 x 22 mm on safety hexagon socket cylinder screws DIN 912, M 6 x 20 and screw net hoops in the nuts.
  • Page 5 Adjust net hoops and net hoop braces and tighten all screwed fastenings. 3. Installation of ground sockets and erection of the goal: a) First stick ground sockets on the uprights. b) Set mounted goal with ground sockets in the foundations (800x800x1000mm). To enable a drain off of possible water we recommend to stick a tube below the holes of the ground sockets.
  • Page 6 d) Using of wedges: For Fixing of the uprights into ground sockets use the special wedges. Let the flat aluminium wedge (50 x 5mm, length 435 mm) slide into the guiding groove. Then push and drive the sloped wedge (rectangular tube 50 x 20 x 2mm, length 240mm) into the guiding groove.
  • Page 7: Maintenance And Safety Instructions

    We recommend the following distribution of net holders: Crossbar : 31 pieces Uprights : 11 pieces Use all the other included net holders for the corners and other connections. Pull the cord through each net meshes and fix it on both net hoops, if necessary lead it through the bore in the net hoop.
