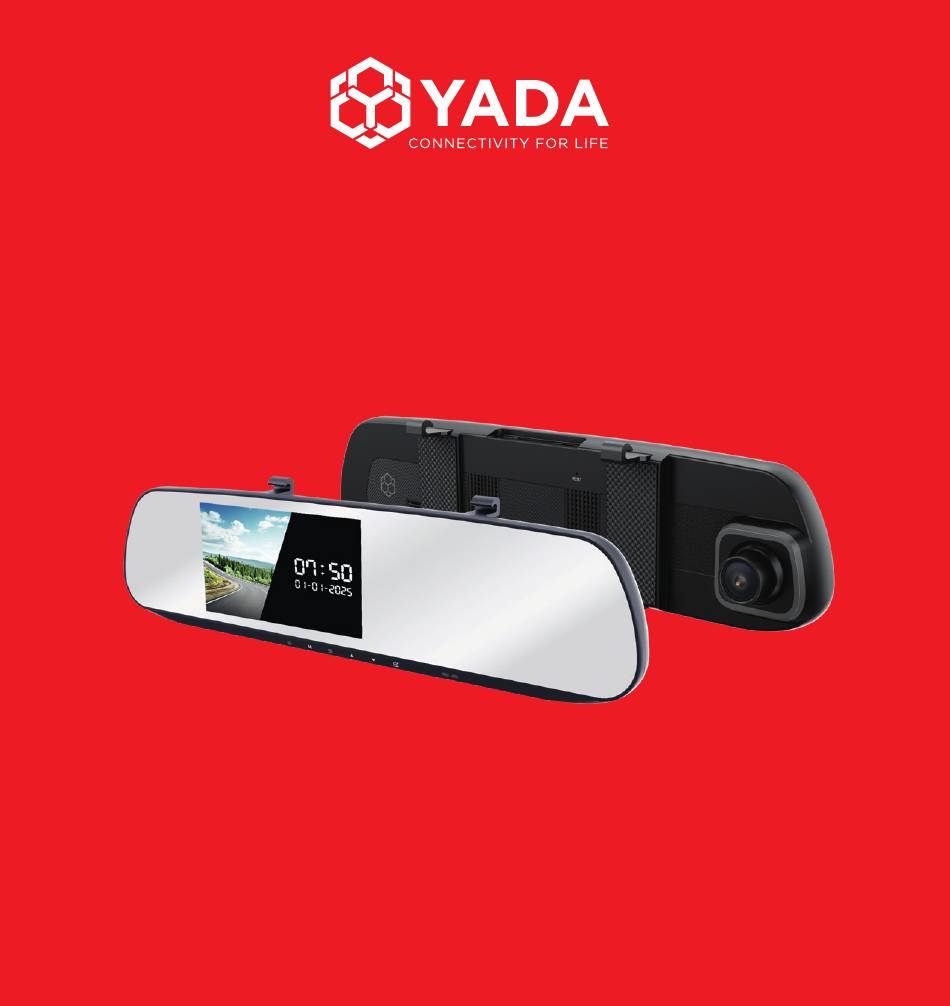

  • Page 1 ROADCAM MIRROR FHD 1080P Dashcam BT533147F User Manual Important, retain for future reference: Read carefully...
  • Page 2: Mounting The Camera

    QUICK INSTALLATION GUIDE Before you begin the installation, please gather these items. 1. Mounting the Camera MicroSD Card (Factory-Installed)
  • Page 3: Connecting To Power

    2. Connecting to Power...
  • Page 4: Product Specifications

    If you require assistance with camera installation, please feel free to either consult an experienced technician or reach out to YADA customer support at 1.866.294.9244. BEFORE using the camera, please read the safety information in this manual, and always follow the guidelines outlined in it while using the product.
  • Page 5: Package Contents

    PACKAGE CONTENTS 1. 1 x Roadcam Mirror 2. 2 x Rubber Strap 3. 1 x 8GB MicroSD Card (Factory-installed, replaceable) 4. 1 x 12/24V Power Adapter 5. 1 x Instruction Manual...
  • Page 6: Product Overview

    PRODUCT OVERVIEW Display Screen LED Indicators MicroSD Card Slot Power Input (MicroSD Card Factory-Installed) Reset Button Speaker Camera Lens Function Buttons...
  • Page 7: Controlling The Camera

    CONTROLLING THE CAMERA Power ON/OFF (press & hold) Navigation UP / Rewind (click once) Screen Save (click once) Mode / Lock / Return (click once) Navigation DOWN / Audio Recording ON/OFF / Fast Forward (click once) Menu / Delete/Protect (click once) OK / Record/Stop Recording / Snapshot / Play/Pause (click once) DIMENSIONS...
  • Page 8: Installing The Camera

    INSTALLING THE CAMERA Remove the protective film from the display screen. Attach the camera onto your existing rearview mirror using the rubber straps. NOTE: Please test the camera by connecting it to a power source before mounting.
  • Page 9 Connect the USB-C power cable to the input port on the camera and adjust the angle of the lens accordingly. Route the power cable through the headliner and pillars inside your vehicle. Connect the power adapter to your vehicle’s 12/24V DC outlet. To ensure it doesn’t obstruct the driver while driving, we recommend passing it through the passenger side.
  • Page 10 CONFIGURING THE MENU SETTINGS Initial Setup Set the date & time before using the camera. The date stamps that appear on all future recordings will follow this setting. Switching Modes Click M to switch between video mode, camera mode, and gallery mode. Please note that you’ll need to stop recording first in order to switch modes.
  • Page 11: Gallery Mode

    Gallery Mode • Utilize to cycle through “Video”, “Event” and “Photo” folders, then click to enter. • Utilize to browse through the previews, then click to view the file. • During video playback, click to pause/resume the video. • Click to fast forward or to rewind the video at X2, X4 or X8 speed.
  • Page 12 Menu Click in video mode (when recording stops) or in camera mode to access the menu. Video Resolution: FHD (1920x1080), HD (1280x720) or VGA (640x480). Camera Resolution: 10M (3840x2640) or 5M (2736x2016). Loop Record: 1 Min, 3 Mins or 5 Mins. G-Sensor: Low, Medium, High or OFF.
  • Page 13: Additional Features

    ADDITIONAL FEATURES Automatic ON / OFF When the camera is connected to the vehicle’s power, it will power on and start recording when the vehicle engine starts. When the engine is off, the camera will stop recording and power off automatically. Smart Incident Recording When the G-Sensor detects a sudden impact such as collision, it’ll automatically lock and store the footage in the “Event”...
  • Page 14: Battery Level Indications

    BATTERY LEVEL INDICATIONS Please refer to the diagram below for battery level indications. Fully charged 75% charged 50% charged Battery low Please charge Charging NOTE: The camera is intended to be powered on when the vehicle is running. The built-in battery’s primary purpose is to ensure the camera shuts down correctly when you turn off the vehicle, rather than running the camera extensively.
  • Page 15 FAQs 1) Problem: The camera is unable to take pictures or record videos. Solution: Please try formatting the MicroSD card (Menu – Format). 2) Problem: The camera is showing that the memory card is full. Solution: Please 1) Switch the G-Sensor to “Medium” or “Low”, 2) Turn off the Motion Detection, and 3) Take the MicroSD card out and clear the “Event”...
  • Page 16: Safety Information

    IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions of the 12/24V cigarette lighter adapter for Model BT533147F. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose cigarette lighter adapter to rain, moisture, or snow.
  • Page 17 WARNING: A failure to read and follow these warnings and instructions may result in a serious accident, including damaged property or a serious injury, including loss of life. • The Roadcam Mirror is designed as an aid to the driver in detecting large stationary objects to help avoid damaging the vehicle.
  • Page 18 • The screen may flicker under fluorescent light. • The colors of objects on the Roadcam Mirror may differ from those of the actual objects. • Do not use alcohol or thinner to clean the camera. This will cause discoloration. To clean the camera, wipe with a clean cloth dampened with mild cleaner diluted with water and then wipe with a dry cloth.
  • Page 19: Maintenance And Warranty

    YADA warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, YADA’s liability shall be limited to that set forth in this limited express warranty. This limited express warranty shall be the exclusive remedy of the purchaser and YADA makes no other warranty of any kind aside from the limited express warranty stated above.
  • Page 20 1.866.294.9244. If at that time it is determined that a replacement unit is needed, the support representative will issue a Return Authorization and instruct on how to get a new unit. YADA makes no other warranty of any kind aside from the limited express warranty stated herein.
  • Page 21 YADA and/or its affiliates are not responsible for a user’s intended or actual use of the Roadcam Mirror. In no event shall YADA and/ or its affiliates have any liability for any losses (whether direct or indirect, in contract, tort or otherwise) incurred in connection with the Roadcam Mirror, including but not limited to damaged property, personal injury and/or loss of life.
  • Page 22: General Information

    YADA and/or its affiliates shall have no responsibility or liability for damage and/or injury resulting from accidents occurring with vehicles having the installed, and YADA and/or its affiliates, the manufacturer, distributor and seller shall not be liable for any injury, loss or damage, incidental or consequential, arising out of the use or intended use of the product.
  • Page 23 (DEHP) and Diisononyl Phthalate (DINP), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Roadcam Mirror FHD 1080P Dashcam BT533147F Responsible Party: YADA 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626...
  • Page 24: Manuel D'utilisation

    ROADCAM MIRROR Caméra-témoin de circulation FHD 1080P BT533147F Manuel d’utilisation Important, conserver pour future référence : Lire attentivement...
  • Page 25: Guide D'installation Rapide

    GUIDE D’INSTALLATION RAPIDE Avant de commencer l’installation, veuillez rassembler les éléments suivants. 1. Installation de la caméra Carte MicroSD (installée en usine)
  • Page 26 2. Raccordement à la prise d’alimentation...
  • Page 27: Spécifications Du Produit

    à titre indicatif pour faciliter l’installation du produit. En cas de besoin d’assistance pour l’installation d’une caméra, n’hésitez pas à consulter un technicien d’expérience ou à contacter le service clientèle de YADA au 1 866 294-9244. AVANT d’utiliser la caméra, veuillez lire les informations relatives à...
  • Page 28: Contenu De L'emballage

    CONTENU DE L’EMBALLAGE 1. 1x rétroviseur Roadcam 2. 2x bande élastique 3. 1x carte MicroSD de 8 Go (installée en usine, remplaçable) 4. 1x adaptateur 12/24 V 5. 1x guide d’utilisation...
  • Page 29: Aperçu Du Produit

    APERÇU DU PRODUIT Écran d’affichage Voyants à DEL Logement de la carte MicroSD Entrée d’alimentation (carte MicroSD installée en usine) Bouton de Haut-parleur réinitialisation (Reset) Objectif de la caméra Boutons de fonction...
  • Page 30: Contrôle De La Caméra

    CONTRÔLE DE LA CAMÉRA Marche/Arrêt (appuyer et maintenir) Navigation vers le haut/Retour en arrière Écran de veille (cliquer une fois) (cliquer une fois) Mode/Verrouillage/Retour Navigation vers le bas/Marche/Arrêt de (cliquer une fois) l’enregistrement audio/Avance rapide (cliquer une fois) Menu/Supprimer/Protéger OK/Enregistrement/Arrêt de (cliquer une fois) l’enregistrement/Instantané/Lecture/ Pause (cliquer une fois)
  • Page 31: Installation De La Caméra

    INSTALLATION DE LA CAMÉRA Retirez le film protecteur de l’écran d’affichage. Branchez la caméra sur votre rétroviseur existant à l’aide des bandes élastiques. REMARQUE : Veuillez tester la caméra en la branchant à une source d’alimentation électrique avant le montage.
  • Page 32 Connectez le câble d’alimentation USB-C au port d’entrée de la caméra et ajustez l’angle de l’objectif en conséquence. Acheminez le câble d’alimentation à travers la garniture de toit et les montants à l’intérieur de votre véhicule. Branchez l’adaptateur dans la prise 12/24 V c.c. de votre véhicule.
  • Page 33: Première Installation

    CONFIGURATION DES PARAMÈTRES DU MENU Première installation Réglez la date et l’heure avant d’utiliser la caméra. Les horodateurs qui apparaîtront sur tous les enregistrements futurs suivront ce réglage. Changement de modes Cliquez sur M pour basculer entre le mode vidéo, le mode appareil photo et le mode galerie.
  • Page 34 Mode galerie • Utilisez pour parcourir les dossiers « Video » (Vidéo), « Event » (Événement) et « Photo » (Photo), puis cliquez sur pour y accéder. • Utilisez pour parcourir les aperçus, puis cliquez sur pour visualiser le fichier. •...
  • Page 35 Menu Cliquez sur en mode vidéo (à l’arrêt de l’enregistrement) ou en mode caméra pour accéder au menu. Résolution vidéo : FHD (1 920 x 1 080), HD (1 280 x 720) ou VGA (640 x 480). Résolution de la caméra : 10M (3 840 x 2 640) ou 5M (2 736 x 2 016).
  • Page 36: Autres Fonctionnalités

    AUTRES FONCTIONNALITÉS Marche/arrêt automatiques Lorsque la caméra est branchée sur le véhicule, elle s’allume automatiquement et commence l’enregistrement dès l’allumage du moteur du véhicule. Lorsque le moteur est éteint, l’enregistrement s’arrête automatiquement et la caméra s’éteint automatiquement. Enregistrement intelligent des incidents Lorsque le capteur G détecte un choc soudain tel qu’une collision, celui-ci verrouille automatiquement la séquence et la stocke dans le dossier «...
  • Page 37 INDICATIONS DU NIVEAU DE LA BATTERIE Veuillez vous reporter au diagramme ci-dessous pour les indications du niveau de la batterie. Charge pleine Charge à 75 % Charge à 50 % Batterie faible Veuillez la recharger En recharge REMARQUE : La caméra est conçue de manière à être alimentée pendant que le véhicule est en marche.
  • Page 38 1) Problème : La caméra n’est pas en mesure de prendre des photos ou d’enregistrer des vidéos. Solution : Veuillez essayer de formater la carte MicroSD (Menu – Format). 2) Problème : La caméra indique que la carte mémoire est pleine. Solution : Veuillez 1) Régler le capteur G sur «...
  • Page 39: Renseignements Sur La Sécurité

    CONSIGNES IMPORTANTES DE SÉCURITÉ 1. CONSERVEZ CES DIRECTIVES – Ce manuel contient d’importantes directives de sécurité et d’utilisation pour l’adaptateur d’allume-cigare modèle BT533147F de 12/24 V. 2. Avant d’utiliser le produit, lire toutes les directives et prendre connaissance des avertissements.
  • Page 40 AVERTISSEMENT : Ne pas lire et suivre ces avertissements et directives peut entraîner un accident grave, y compris des dommages matériels ou des blessures graves, voire mortelles. • Le rétroviseur Roadcam est conçu comme équipement d’assistance pour la détection de grands objets stationnaires afin de contribuer à éviter d’endommager le véhicule.
  • Page 41 • Il est également possible que le moniteur n’affiche pas clairement les objets lorsque la caméra capte directement une lumière intense. • L’écran peut vaciller sous une lumière fluorescente. • Les couleurs des objets apparaissant sur le rétroviseur Roadcam peuvent différer légèrement de celles des objets réels.
  • Page 42: Entretien Et Garantie

    (1) an à compter de la date d’achat initiale. Là où la loi le permet, la responsabilité de YADA se limite aux dispositions de la présente garantie expresse limitée. La présente garantie expresse limitée constitue le recours exclusif de l’acheteur et YADA...
  • Page 43 4. La garantie ne couvre pas le remplacement des pièces résultant de leur usure normale. 5. La réparation ou le remplacement des pièces fournies par YADA en vertu des présentes sont couverts seulement pendant la période valide de la garantie originale.
  • Page 44 (directes ou indirectes, contractuelles, délictuelles, ou autres) associées à l’utilisation du rétroviseur Roadcam, incluant, sans s’y limiter les dommages à la propriété, les blessures et/ou décès. Ni YADA ni ses sociétés affiliées ne peuvent être tenus responsables des décisions, poursuites ou défauts d’agir d’une personne se fiant au rétroviseur Roadcam,...
  • Page 45: Renseignements Généraux

    YADA et (ou) ses sociétés affiliées déclinent toute responsabilité concernant les dommages et blessures découlant d’accidents survenus lorsque le véhicule est muni de la caméra, et YADA et (ou) ses sociétés affiliées, le fabricant, le distributeur et le détaillant ne peuvent être tenus responsables des blessures, pertes, dommages, incidents ou circonstances découlant de...
  • Page 46 Californie comme causant le cancer et des anomalies congénitales ainsi que d’autres dangers pour la reproduction. Pour plus d’informations, consultez www.P65Warnings.ca.gov. Roadcam Mirror Caméra-témoin de circulation FHD 1080P BT533147F Partie responsable : YADA 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 USA...
  • Page 47 Product code / Code de produit / Código del producto : BT533147F Register this product within 30 days of purchase to receive one (1) additional year of warranty coverage (beyond the standard 1-year warranty), along with special product offers and announcements.
