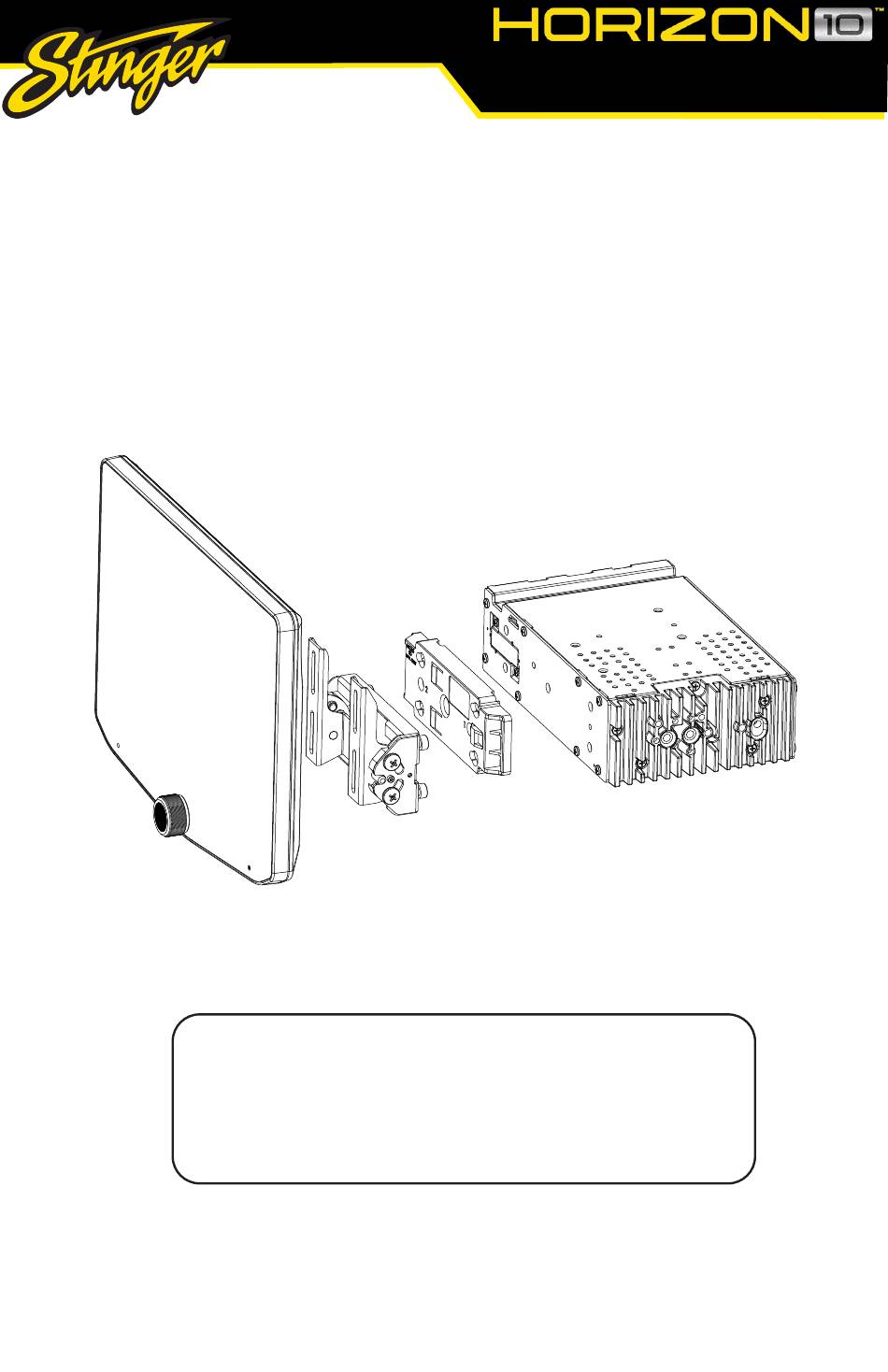

STH10JKX
2007-2018 Jeep Wrangler (JK)
10-Inch Modular Multimedia Package
Installation Guide
NOTE! Read this installation guide thoroughly before disassembling
the vehicle or making wire connections. Installation of this product
requires technical skill, experience, and specialized tools.
If you feel uncomfortable performing the steps outlined in this
manual, please have this product professionally installed by an
authorized Stinger Dealer.
A User Guide is available at
https://stingersolutions.com/pages/horizon10-product-info
Advertisement
Table of Contents
Related Manuals for Stinger HORIZON10 STH10JKX
Summary of Contents for Stinger HORIZON10 STH10JKX
- Page 1 Installation of this product requires technical skill, experience, and specialized tools. If you feel uncomfortable performing the steps outlined in this manual, please have this product professionally installed by an authorized Stinger Dealer. A User Guide is available at https://stingersolutions.com/pages/horizon10-product-info...
-
Page 2: Table Of Contents
Contents Kit Components..............3 Vehicle Disassembly............4 Wiring and Connections.............6 Radio and Display Assembly..........9 Attaching Side Brackets............11 Harness Connections............12 GPS Antenna and USB.............14 Vehicle Installation.............15 Function Test..............17 Vehicle Reassembly............18 PRECAUTIONS Disconnect the vehicle's negative battery cable before making any wire connections. Protect all vehicle surfaces with tape or plastic. -
Page 3: Recommended Tools
Kit Components NOTE! This installation guide outlines basic installation. For any additional features, adding a rear camera or amplifier, please refer to the additional instructions included with each component. HORIZON10 (iX210) RP4-CH11 CDK644 10” Multimedia System Jeep Radio Interface Radio Mounting Kit EU06 SSUSB3 Antenna Adapter... -
Page 4: Vehicle Disassembly
Vehicle Disassembly (2011-2018) 1. Using a plastic trim tool, release the top left and right clips (1) and remove the knee bolster panel below the steering column. SEEK SEEK AM/FM DISC 2. Using a plastic trim tool, gently pry to release and remove the power window switches or storage pocket below radio (2). - Page 5 Vehicle Disassembly (2011-2018) NOTE! Position the steering wheel in the full down position. 6. Starting below the radio, reach into the window switch opening and firmly grasp the lower bezel and carefully pull the bezel to release the lower retaining clips (6). 7.
- Page 6 Vehicle Disassembly (2007-2010) 1. Using a plastic trim tool, release the retaining clips on rear left and right of the upper panel above the radio. Tilt the panel upwards to release the front edge. If equipped, unplug the module on the backside of the panel.
- Page 7 Vehicle Disassembly (2007-2010) 4. Using your hands, pull outward on the top of the center bezel to release the clips SEEK SEEK AM/FM DISC on both sides of the radio. KDAN Pull outward on the bottom of the center bezel to realease the lower clips. Finally, pull outward on the top and bottom of the panel to release the remaining two middle clips.
-
Page 8: Wiring And Connections
Wiring & Connections Parts Needed: From the HORIZON10 Box: 26-Pin Power Harness 16-Pin Rear Camera Harness 14-Pin Data and Accessory Control Wire Harness (If vehicle is equipped with Steering Wheel Controls) * Refer to the HORIZON10 Installation Guide for harness names and illustrations From the RP4-CH11 Box: Main Harness RP4-CH11-B (Harness RP4-CH11-A will not be used in this application) 1. - Page 9 White/Black > Front L- < White/Black White > Front L+ < White Wiring & Connections Gray/Black > Front R- < Gray/Black Gray > Front R+ < Gray 2. Wiring Connections Without a Factory Amplifier. Orange/White > Illumination (+) < Orange Following the diagrams below, connect the wires from the HORIZON10 harnesses to the RP4-CH11 harnesses as shown.
- Page 10 Purple > Rear R+ < Purple White/Black > Front L- < White/Black Wiring & Connections White > Front L+ < White Gray/Black > Front R- < Gray/Black 3. Wiring Connections With a Factory Amplifier. Gray > Front R+ < Gray Following the diagrams below, connect the wires from the HORIZON10 harnesses to the RP4-CH11 harnesses as shown.
-
Page 11: Radio And Display Assembly
Radio & Display Assembly Parts Needed: From the HORIZON10 Box: HORIZON10 Display Radio Module Nose Bracket Display Bracket M2.6 X 6.5 Screws M3 X 6 Screws M4 X 10 Screws M5 X 10 Screws... - Page 12 Radio & Display Assembly Align the Nose Bracket onto the Radio module where the NAV Card Slot lines up. Use the 2 locator pins on the back of the Nose Bracket to line up with the 2 holes on the front of the radio module. Install the 5 M3 X 6 Screws. Radio Module Locator...
-
Page 13: Attaching Side Brackets
Attaching Side Brackets Parts Needed: M5 X 10 CDK644 Screws (4) Installation Kit Attach the left and right brackets to the dash kit using the (4) M5 X 10 Screws Slide the Radio Module into the assembled dash kit. Use the 4 M5 x 10 screws to hold the radio in place for the left and right sides. -
Page 14: Harness Connections
Harness Connections Parts Needed: From the HORIZON10 Box: LVDS Display Video Cable From the RP4-CH11 Box: Control Module EU06 Antenna Adapter 3 Harnesses from Step 2/3 Using a small flat blade screwdriver or similar, set the dial on the side of the RP4-CH11 module to Number 4. -
Page 15: Radio Module
Harness Connections FIG C HORIZON10 RADIO MODULE Antenna adapter will be plugged into the vehicle’s antenna cable llllllllllllllll 22 Pin plug will be connected to the vehicle’s radio harness Display cable will be plugged into the back of the display... -
Page 16: Gps Antenna
GPS Antenna Parts Needed: From the HORIZON10 Box: GPS Antenna Metal Mounting Plate Before installing the radio into the vehicle, mount the GPS Antenna and USB hub. The GPS antenna is required for proper operation of Apple CarPlay and Android 2011-2018 Models 2011-2018 Models: In between the defroster vents and the... -
Page 17: Usb Ports
KDAN USB Ports Parts Needed: SSUSB3 Dual USB Extension Apple CarPlay, Android Auto, and any Firmware Updates require access to a USB ports. The SSUSB3 is designed to extend the USB ports on the back of the HORIZON10 to where they are accessible once the radio is installed. SEEK SEEK AM/FM DISC For this installation, one of the factory 12V... -
Page 18: Vehicle Installation
Vehicle Installation Inside the vehicle, with the complete radio assembly and harnesses, make the following connections. Connect GPS Antenna Cable (Blue Connector) Plug 22 Pin Vehicle Radio Connector into Gray l l l l l l l l l l l l l l l l Connector Connect Vehicle Radio Antenna Cable... - Page 19 Vehicle Installation FIG F After all connections are complete, all excess wire, plugs, and the RP4-CH11 module need to be positioned on the left and right side of the air ducts (FIG F). The center area directly behind the radio needs to be kept clear so the radio assembly will fit.
- Page 20 Vehicle Reassembly 2011-2018 1. Position the Instrument Cluster/Radio Bezel (3). If equipped, locate the power window switch connector and pull through the switch opening (4). Align the bezel clips, push and fully seat all clips. 2. Install two 7mm screws left and right of steering column (5). 3.
- Page 21 Vehicle Reassembly 2011-2018 8. Remove the M3 X 5 locking screw from the Nose Bracket. 9. Plug in the HORIZON10 LVDS cable to the back of the LCD Panel. 10. Slide the LVDS Connector cover onto the display and secure with the M2.6 X 6.5 Screw.
- Page 22 Vehicle Reassembly 2007-2010 1. Align the main center panel (1) and push to seat all retaining clips. 2. Install two 7mm screws (2) in the upper center panel locations. 3. Install two 7mm screws (3) in the lower center panel locations. 4.
-
Page 23: Function Test
Function Test It’s recommended to check all functions and features before reassembling the vehicle. Reconnect the Negative Battery Cable if removed. The HORIZON10 User Guide can be found at: https://stingersolutions.com/pages/horizon10-product-info There is a troubleshooting section at the end of the User Guide. Start the vehicle, unit should power on. - Page 24 Notes...
- Page 25 Notes...
-
Page 26: Customer Solutions
AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use and with all State and Federal laws. STINGER provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conjunction with those instructions or other misuse of its product.
