Stinger VIP Installation Instructions

For optimal performance of the Stinger VIP it is
important to carefully follow the directions provided
in this installation manual. For questions please call Stinger
technical support at 1-844-RADARUS (723-2787). For more
www.stinger.com/us
information, check
Please first confer with the customer to determine the desired
position for the VIP Display in the car. We advise to place the VIP
Display Holder so that the display will be easily visible for - and
within comfortable reach of - the driver.

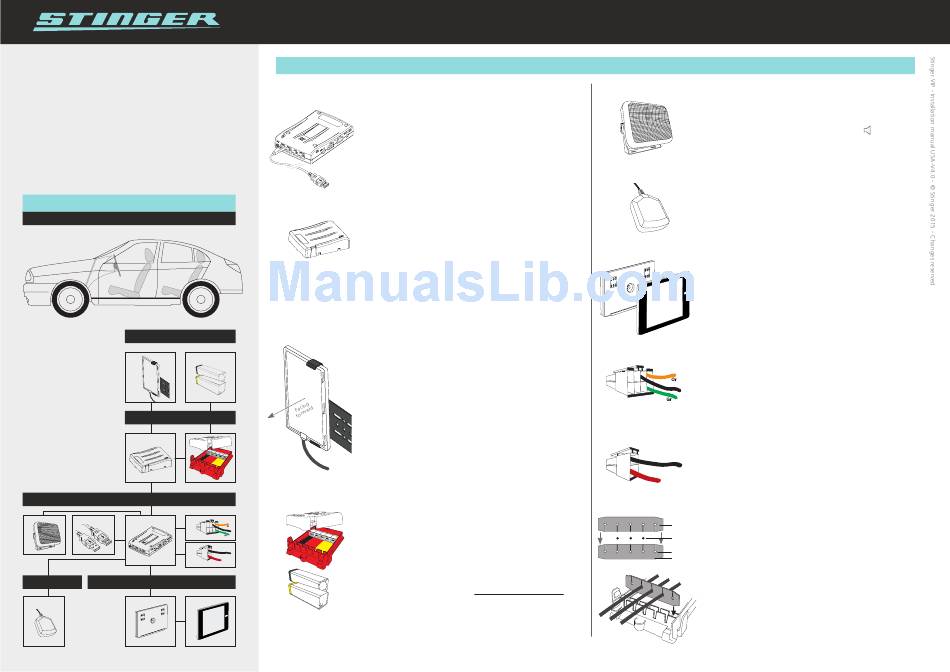

SCHEMATIC VIEW
Module locations
L M
F
K
D C
G
H J
B
E
A
In or behind the bumper / grill
A HD Antennas (Front&Rear)
B Laser Receiver Square (F&R)
A B
Laser Transmitter Square (F&R)
C Extention Boxes (F&R)
D Laser Analyzer Boxes (F&R)
E Speaker
F USB Cable
G VIP Computer
Under hood / in trunk
H I/O Plug
J Power Plug
C D
K GPS Antenna
L VIP Display Holder
M VIP Display
Under the dashboard
E F G H
J
Sky view In the cockpit
L
K M
1. VIP Computer
The VIP Computer must be placed in a humidity-free location
such as in or under the dashboard.
• Mount the VIP Computer with tie-wraps or screws.
• note: Connect one end of the USB Cable to the VIP Computer
and make sure the other end remains easily accessible, for
instance lying free in the glove box.
2. Extension Box
Place the Extension Box horizontally (as depicted) under the
hood, in a reasonably humidity-free location.
• Connect the Extension Box for the front of the car to the
FRONT port of the VIP Computer.
• Connect the Extension Box for the rear of the car to the
B
AUX port of the VIP Computer.
C D
A
Do not yet close the lid of the Extension Box.
3. HD Antenna
Place the HD Antenna at the front of the car behind the bumber
or spoiler. Preferably behind thin, flat and smooth plastic, and
certainly not behind metal.
• The large, smooth side that has no imprints, must face straight
forward in the driving direction, with the cable coming out
from the bottom, as depicted.
• Connect it to any port of the Extension Box. The Antenna
must never be connected to the Laser Analyzer Box: this can
cause a short-circuit.
• For maximum performance, please make sure the antenna
receives sufficient airflow for cooling.
• Please see reverse side of this sheet for US and Canadian HD
Antenna optimized installation orientation.
4. Lasers and Laser Analyzer Box
Bl
Connect the Laser Analyzer Box to the Extension Box and the
Lasers to the Laser Analyzer Box.
Bl
Red
To ensure optimal Laser functionality, please refer to the exact
Laser installation instructions in the separate Laser Installation
Manual. Download available at:
STEP BY STEP INSTRUCTIONS
www.stinger.com/manuals
Installation manual
5. Speaker
Place the speaker under the dashboard.
• Connect the module to the Speaker port ( ) of the VIP
Computer.
6. GPS Antenna
Place the antenna on the dashboard. If the car has a heat-repelling
windshield, it is better to place the antenna outside the cabin of
the car, for instance in a space at the top end of the hood.
• Connect the cable of the antenna to the GPS port of the VIP
Computer.

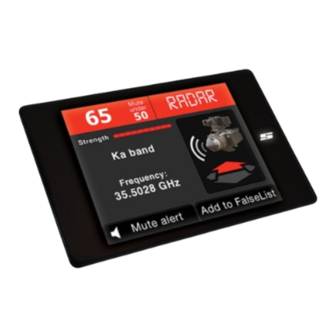

7. VIP Display & VIP Display Holder
Place the VIP Display Holder at a convenient location for the driver.
• Connect the module to the DISPLAY port of the
VIP Computer.
• Place the VIP Display on the VIP Display Holder.
8. 8-pole I/O plug
• Connect the orange wire to the ignition-actuated 13.8V
battery power (+15).
Bl • If so desired, attach the green Mute-cable to the Mute-wire
of the radio.
• The black wire is for future use.
9. 2-pole power plug
• Connect the red wire to the 13.8V battery power (+30).
• Connect the black wire to a 'clean' metal ground-point of
Bl
the car chassis.
Red
10. Closing the Extension Box and Laser Analyzer Box
Rubber
seal After all the cables have been connected, it is important to close
the boxes (see steps 2 and 5) in a water resistant manner. Place
Cable
the cables in the holes of the opposite facing 'rubber seals' (see
Cut outs
Rubber example). This prevents moisture from getting into the box.
seal
Next, place the rubber seals with the now inserted cables into
the slot, as depicted in the example on the left. Make sure the
rubbers are pushed down all the way using silicone spray to
facilitate this. Put the lid back on so that it is tight and secure.
