Stinger ELEV8 User Manual

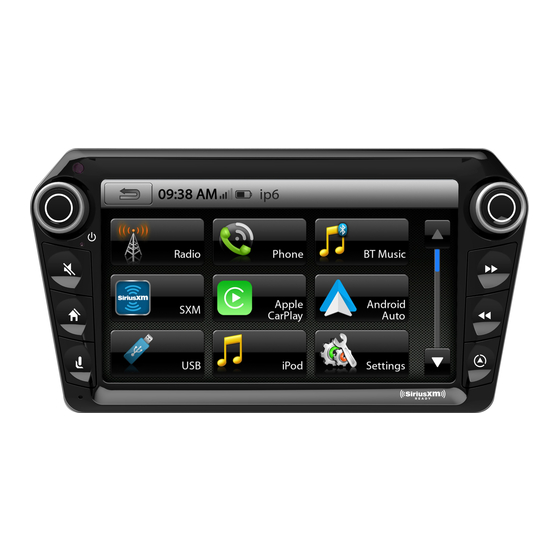

8" floating multimedia display system
Hide thumbs Also See for ELEV8:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
PN: UN1880
®

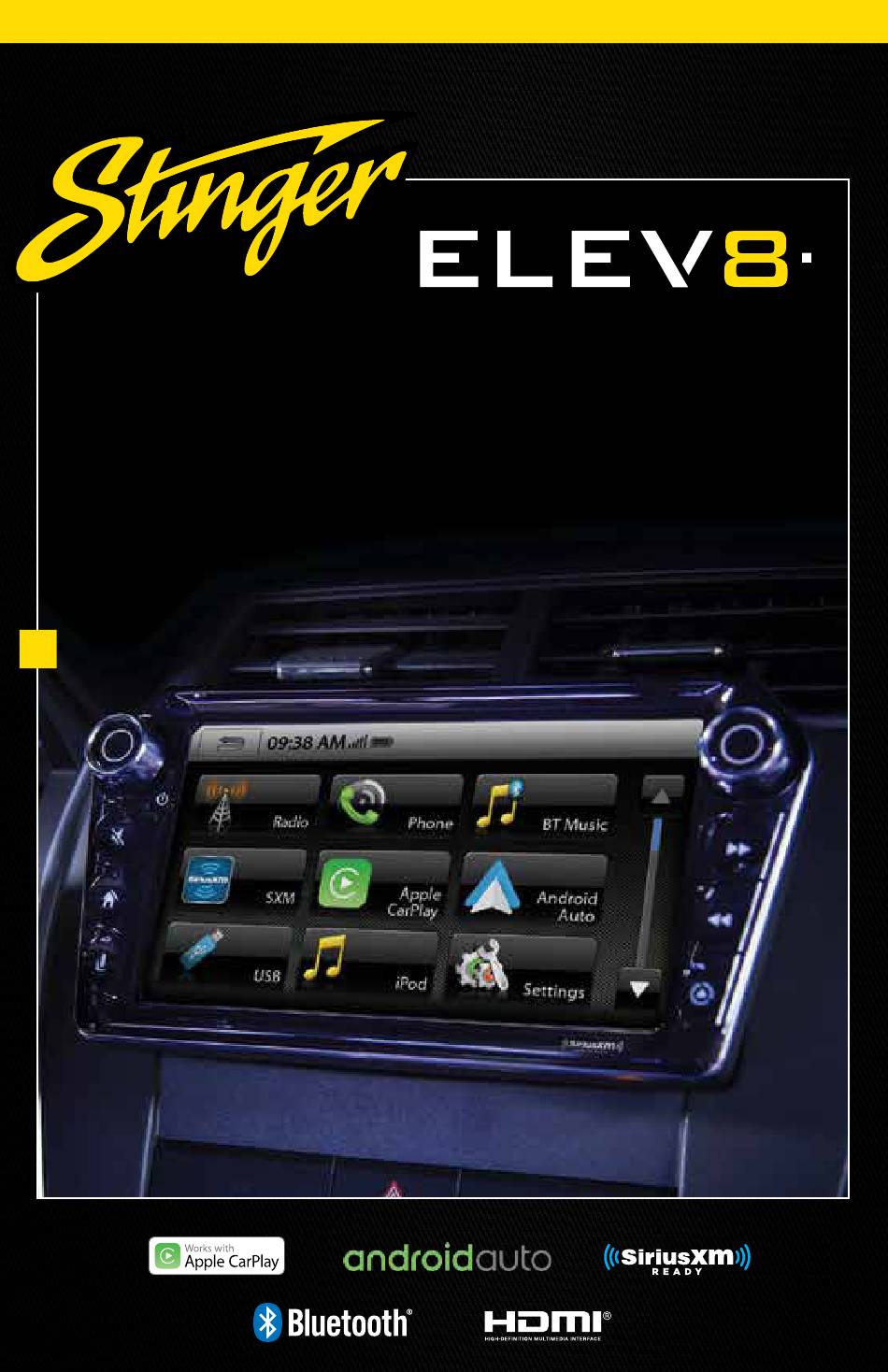

8´´ FLOATING MULTIMEDIA DISPLAY SYSTEM
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELEV8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stinger ELEV8

Summary of Contents for Stinger ELEV8

  • Page 1 PN: UN1880 ® 8´´ FLOATING MULTIMEDIA DISPLAY SYSTEM USER GUIDE...
  • Page 2 If you do not agree, please discontinue use and contact Stinger is a Power Brand of AAMP Global STINGER. This product is intended for off-road 15500 Lightwave Drive, Suite 202 use and passenger use only.

  • Page 3: Table Of Contents

    WELCOME TO YOUR NEW Enjoy the ride CONTENTS The Basics............4 Getting Started..........6 AM/FM Radio............8 Bluetooth Phone..........9 Bluetooth Music..........12 ® SiriusXM ............13 iPod..............18 USB Media............19 ® Apple CarPlay ..........20 Android Auto™..........21 Settings...............22 HDMI..............23 AV In..............24 Navigation............24 Display Settings..........25 Audio Settings...........26 Rear Zone............29 Cameras............29 Display Off............29 Troubleshooting..........30...

  • Page 4: The Basics

    THE BASICS INTERNAL MICROPHONE Multifuntion Knob Press & Hold to Power On/Off Turn to adjust Volume Up/Down Press once to dim display Mute Button Toggles Mute On/Off Home Button Jump to the Home Menu Voice Button Launches voice control in applications StingerElectronics.com...
  • Page 5 Multifuntion Knob Turn to Tune/Scroll Up/Down Press to Select/Enter Tune/Track Up Button   Media control Next, Forward, Seek Press & hold function in select sources Tune/Track Down Button   Media control Previous, Back, Seek Press & hold function in select sources Navigation Button Launches optional navigation StingerElectronics.com...

  • Page 6: Getting Started

    GETTING STARTED Information Bar MENU / BACK Time Source Info Dimming/Mute Power ON/OFF RESET HOME Customizable Source Tabs POWER UP! The Source Tabs are located across the bottom of the screen and give you With vehicle ignition in the ON or direct access to common sources.
  • Page 7 Home Menu SELECTING A SOURCE To select a SOURCE that is not located on the Source Tabs, touch MENU on the Information Bar, or press the HOME button on the left side of the screen to access the HOME MENU. The HOME MENU displays all Sources, along with Settings, Audio, Display and Camera options.

  • Page 8: Am/Fm Radio

    AM/FM RADIO Station Display - Displays current Touch the AM/FM Tab or MENU > Radio to select the Radio frequency. source. Pressing the AM/FM Tab ST Indicator - Indicates when repeatedly will cycle through FM1- current radio station is in Stereo. FM2-FM3-AM1-AM2 DX/LOC - changes the radio Preset Stations - A total of 18 FM...

  • Page 9: Bluetooth Phone

    BT PHONE Touch the Phone Tab or press the End - Press to end call. HOME BUTTON > Phone to select Phone Name - Displays the name the Phone source. Pressing the Phone Tab repeatedly will cycle of the currently paired phone. through the Phone options.
  • Page 10 BT PHONE Pairing a Device 1) Select Settings from the Phone ...main menu to go to Device/Setup. 2) Select Add on the Device page. Place your device in Discoverable Mode. 3) Select your device from the list. Setup Tab Select Connect to initiate pairing 4) Select Pair when prompted NOTE! If your device does not appear...
  • Page 11 BT PHONE Contacts Search Contacts While your phone is paired, you may access your contacts by selecting Contacts. It may take several minutes to load all your contacts. When you select a contact from the list, all associated numbers will be displayed on the left side of the screen.

  • Page 12: Bluetooth Music

    BT MUSIC Touch the BT Music Tab or press the HOME BUTTON > BT Music to select Bluetooth audio streaming. Play/Pause - Touch to play or pause the audio. Previous Track/Program - Touch once to restart current track, touch again for Previous track. Song/Program Information - Displays information for the current track.

  • Page 13: Siriusxm

    SiriusXM Satelite Radio ® (OPTIONAL) Only SiriusXM brings you more of what you love to listen to, all in one place. Get ® over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required.
  • Page 14 SiriusXM Satelite Radio CAT - Touch to display a list of Touch the SXM Tab or press the channel Categories. HOME BUTTON > SiriusXM to select the optional SiriusXM Satellite Preset/Channel View - Toggles Radio source. Pressing the SXM the display between Presets and Tab repeatedly will cycle through Channel/Song View.
  • Page 15 SiriusXM Satelite Radio Info Button Channels [CH] Displays a list of availble SiriusXM channels. Touching Info will provide additional information on what is currently playing on each channel (Artist, Song, Content Info). Signal Strength Categories [CAT] Displays a list of channel categories. When a category is selected, a list of matching channels will display.
  • Page 16 SiriusXM Satelite Radio Numeric Keypad Icon Direct Tuning If you know the channel number you want, you can touch the Numeric Keypad Icon on the Information Bar and enter the channel number directly. (See Page 17 for Parental Control function). SiriusXM Replay™...
  • Page 17 SiriusXM Satelite Radio Parental Control Numeric Keypad Icon The SiriusXM Parental Control feature allows you to prevent access to inappropriate mature content for a younger listener. When enabled, the Parental Control feature requires you to enter a passscode to access the channels that are rated as Mature Channels.

  • Page 18: Ipod

    iPod ® Song Detail View Touch MENU>iPod or press the HOME iPod Root Menu BUTTON > iPod to select iPod as your source. Previous Track - Touch once to restart current track, touch again for Previous track. Play/Pause - Touch to play or pause the audio.

  • Page 19: Usb Media

    USB Media With a USB plugged in - touch the USB Root Menu USB Tab or press the HOME BUTTON > USB to select USB. From the USB Root Menu you can browse Audio, Video and Image files. See page 29 for a list of supported file types.

  • Page 20: Apple Carplay

    Apple CarPlay ® Set up Apple CarPlay You can use Apple CarPlay to get directions, make calls, send and receive messages, and more. You need an iPhone 5 or later to use Apple CarPlay. Also, make sure that you're in an area that supports Apple CarPlay and that Siri is on.

  • Page 21: Android Auto

    Android Auto Set up Andriod Auto Voice Command Microphone Make sure your phone is running Android 5.0 (Lollipop) or later. Download the Android Auto app from Google Play on your device. Once the app is installed, open the app and follow the setup steps. Connect your phone Before you connect your phone for the first time, turn on your car.

  • Page 22: Settings

    MAIN SETTINGS Touch MENU > Settings or press the Back Button to Exit and Save Changes HOME BUTTON > Settings to access the Settings. Use Arrows to change values and the Back Button to save changes. Settings > Main Time (Touch to change time) Beep [OFF-LOW-MID-HIGH] OSD [English-French-Spanish] Load Defaults [OK]...

  • Page 23: Hdmi

    MAIN SETTINGS Settings > Tabs Tabs 2-3-4-5-6 are customizable. Use the arrows to scroll through available options. After setting Tabs, touch the BACK/RETURN arrow to save. Tabs 1 and 7 are fixed and can not be changed. HDMI INPUT Touch MENU > HDMI or press the HOME BUTTON >...

  • Page 24: Av In

    AV IN Touch MENU > AV IN or press the HOME BUTTON > AV IN to switch to the AV input. You can only view the AV input with the vehicle in Park and the parking brake ON. When viewing the AV IN, the Information Bar will auto-hide.

  • Page 25: Display Settings

    DISPLAY SETTINGS Touch MENU > Display or press the HOME BUTTON > Display to access the display settings. Display Set Day [1-20] This is the brightness of the display in daylight. Set Night [1-20] This is the brightness of the display at night. Auto [ON-OFF-MANUAL] If set to Auto, the display will automatically...

  • Page 26: Audio Settings

    AUDIO SETTINGS Touch MENU > Audio or press the NOTE HOME BUTTON > Audio to access the AUDIO settings. Use Left/Right Arrows to change settings. Use BACK arrow to Save and Exit. Default button resets settings to Audio > EQ default values.
  • Page 27 AUDIO SETTINGS Audio > Speaker Fader [-9 - 0 - 9] Using the blue Up and Down arrows, you can fade. Balance [-9 - 0 - 9] Using the blue Left and Right arrows, you can adjust the speaker balance left and right. Time Alignment [OFF-ON] When set to ON, select the gear icon to adjust...
  • Page 28 AUDIO SETTINGS Audio > Sub-Out Sub-Out [ON-OFF] Turns the subwoofer output ON/OFF. Level [-14 - 7] Adjusts the SUB OUT level. Crossover [BYPASS-25Hz-40Hz-63Hz-100Hz-60Hz-250Hz] Adjusts crossover frequency of sub output. Fixed 12dB octave slope. Audio > Volume Start Volume Mode [LAST-SET] Volume at start-up.

  • Page 29: Rear Zone

    REAR ZONE Touch MENU > Rear or press the HOME BUTTON > Rear to access the REAR ZONE menu. Shortcut to Display > Rear Zone Rear Zone [USB-AV IN] This selects the Source to send to the AV OUT. For example, a rear seat entertainment system. CAMERA MENU Touch MENU >...

  • Page 30: Troubleshooting

    Ensure Bluetooth is turned ON in your Check Tuner device settings. Delete all unused devices. The radio is having difficulty communicating Delete any "Stinger" device. Restart/ with the SiriusXM Connect Vehicle Tuner. The Reboot device and try pairing again. tuner may be disconnected or damaged.
  • Page 31 TROUBLE SHOOTING SiriusXM Satellite Radio (cont) Apple CarPlay Subscription Updated Apple CarPlay will not start/launch The radio has detected a change in your - Ensure you are using a Apple certified SiriusXM subscription status. ..cable - Press anywhere on the screen to clear the - Make sure you are plugged into USB ..message.

  • Page 32: Specifications

    SPECIFICATIONS GENERAL AUDIO (CONT) Operating Voltage: 9.0VDC to 18VDC Subwoofer preout Grounding system; Negative Ground LPF: 55Hz, 85Hz, 120Hz Max current consumption: 10A fused Gain: -14dB to 7dB (1dB/step) Phase: 0 or 180 DIMENSIONS Speaker level: ±9dB (1dB/step) Radio Module: Time Alignment: 0 to 100 step (1inch/step) 178 mm x100 mm x 116 mm (W x H x D) Display:...
  • Page 33 SPECIFICATIONS AUDIO/VIDEO FORMATS HDMI INPUT 480P / VGA AUDIO BACKGROUND IMAGE (USER) MPEG-1 Audio Layer-3 (.mp3) FLAC (.flac) File Format: BMP MPEG-2 Advanced Audio (.aac) Resolution: 1024 x 600 MPEG-4 Audio (.m4a) File size is not limited Windows Audio (.wav) OGG Audio (.ogg) VIDEO QuickTime (.mov)

  • Page 34: Dimensions

    DIMENSIONS 9.78 1.61 0.49 1.18 DIMENSIONS ARE IN INCHES 7.01 4.33 4.57 DIMENSIONS ARE IN INCHES StingerElectronics.com...

  • Page 35: Connections

    CONNECTIONS Display Cable Power / Speaker Multi Camera LVDS Cable HDMI Input GPS Antenna USB1 CP/AA 15 Amp Fuse USB2 Radio Antenna TOSLINK AV In/Out - Rear Camera Microphone SiriusXM Tuner The top USB1 must be used for CarPlay and Android Auto. REMOVING THE DISPLAY To remove the display from the plastic mounting bracket, push up...
  • Page 36 FEATURES 8” 1024 x 600 HD Digital Touchscreen with 16.7M colors Apple CarPlay ® Google Android Auto ™ SiriusXM-Ready™ with Replay (SiriusXM Connect Vehicle Tuner and Subscription required) AM/FM Radio Radio- PTY / RT information High power 4 x 50W built-in amplifier 4V 6ch RCA audio outputs with subwoofer control Toslink Audio Output 15 Band Adjustable EQ with 3 user presets...
