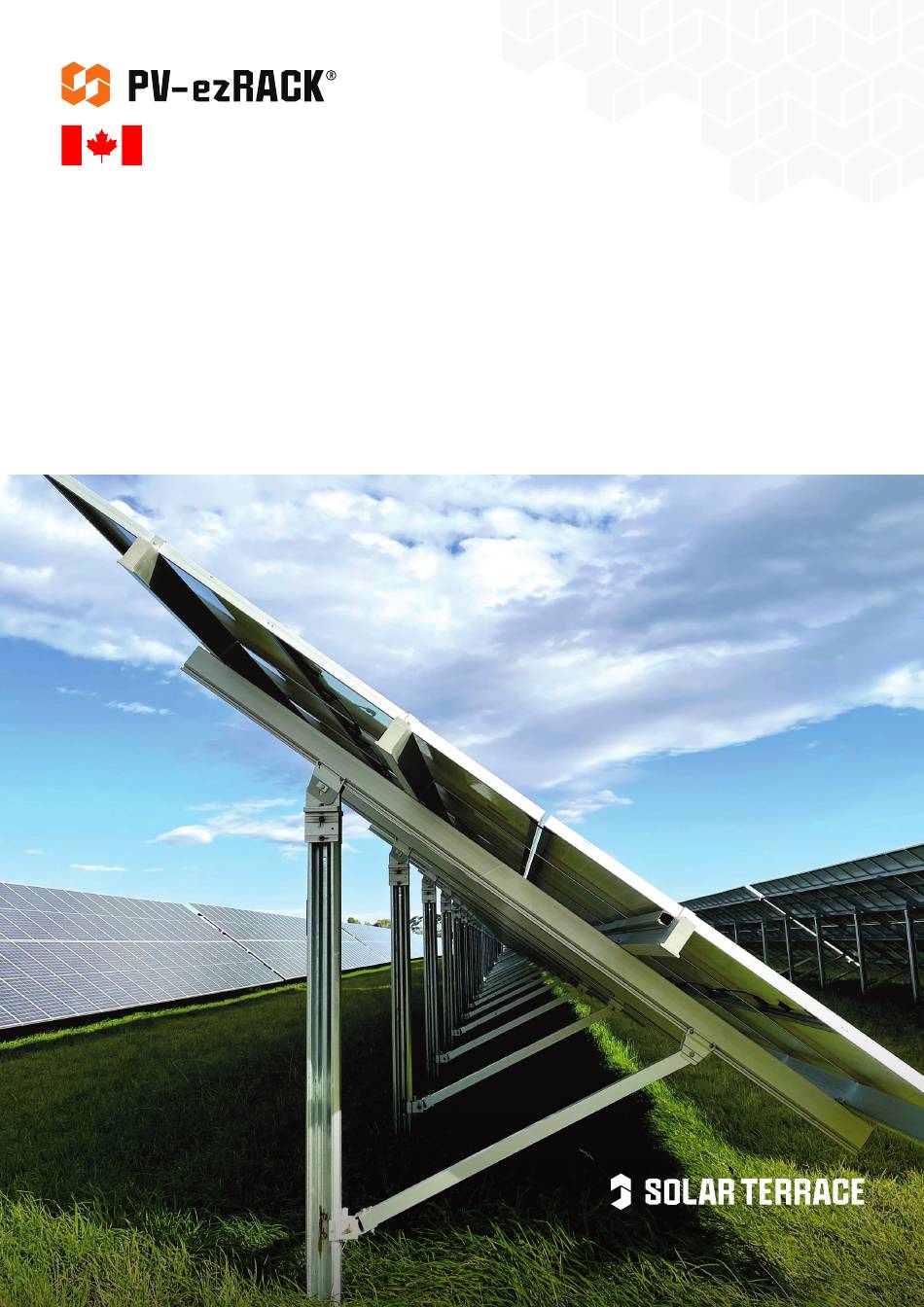

- Page 1 Installation Guide / SolarTerrace II-A SolarTerrace II-A Code-Compliant Planning and Installation V 4.3 Last Updated - Oct. 2024 Code-Compliant Planning and Installation V 4.3...
- Page 2 Make sure that you are using the latest version of the installation instruction guide, which you can do by contacting Clenergy by email on tech@clenergy.com. au or contacting your local distributor. Product Warranty: Please refer PVezRack®...
-
Page 3: Tools And Components
Installation Guide / SolarTerrace II-A Tools and Components Tools Electric Drill Drive Bit Socket Wrench Torque Wrench Measuring (ST4.8x16 self-tapping (M8 Hexagon Socket with 19 mm socket screw & M8 Hexagon Tape Screw) Socket Screw) String Marker Pen Wrench lectronic Total Station Hydraulic Driver (optional) Components... - Page 4 Installation Guide / SolarTerrace II-A ER-S-STIIA/D ER-CAP-T110 ER-CAP-G/A EZ-GC-ST EZ-GL-ST/UC Double support Cap for T-110 Rail Cap for Square Girder Grounding Clip Grounding lug with (pre-assembled) U-shape copper channel EZ-GL-AT C-U/30/46-G C-U/30/46 BR-R110/EW/G GE-STA/200 (Optional) The Austin – Girder Extension, Akashi Clamp for Akashi Clamp for Commercial...
-
Page 5: System Overview
Installation Guide / SolarTerrace II-A System Overview Overview of PVezRack® SolarTerrace II-A 1. STII-A, Support (pre-assembled)/ Double support (pre-assembled) 2. STII-A, C-Post 3. STII-A, Post brace for C-Post/Post brace for C-Post On double support 4. STII-A, Post head for C-Post 5. - Page 6 Safe Torques Please refer to safe torques as shown on page 13. In case power tools are required, Clenergy recommends the use of low speed only. High speed and impact drivers increase the risk of bolt galling (deadlock). If dead lock occurs and you need to cut fasteners, please make sure that there is no load on the fastener before you cut it.
-
Page 7: Installation Instructions
Mark the line of the post array. Obtain the maximum allowed distance between posts and the minimum embedment length from the relevant engineering certificate and/or project drawing. If you don’t have this document, please contact Clenergy technical support. Mark the positions of the posts using a string and tape measure or GPS and drive the posts into the ground. Use a sting or a laser tool to make sure all posts are in line and set to the correct height according to the drawing. - Page 8 Installation Guide / SolarTerrace II-A Apply Zinc Coating to upper section of C Post after ramming Notes: -Apply zinc coating to upper section (circled) of C-Post after piling to repair any damage to the galvanisation caused by ramming. -The opening of the C-Post faces east or west if the panel faces the north. In case of slope ground installation, the opening of the C-Post is recommended to face the lower ground side to avoid catching the water.
- Page 9 Installation Guide / SolarTerrace II-A Post Brace Installation Click the Post brace into C-Post as shown and connect with the two M12 bolts and nuts supplied. Recommended torque: Bolt M12 50~55N·m Fig. 2 Post brace on double support installation. Click two post braces into C-Post as shown and connect with the two M12 bolts and nuts supplied. Recommended torque: Bolt M12 50~55N·m Fig.
- Page 10 Installation Guide / SolarTerrace II-A Pre-assembled Support Installation Place the (pre-assembled) support into post head as shown in Fig.5. Fig. 5 Connect the brace to the post using the M12 bolt and nut supplied. Recommended torque: M12 : 50-55N·m Post Brace Tube of the pre-assembled support Fig.
- Page 11 Installation Guide / SolarTerrace II-A Double Support Installation Place the double support (pre-assembled) into post head. Connect the tubes of the support to the post braces on the post using the M12 bolt and nut supplied. Recommended torque: M12 : 50-55N·m Fig.
- Page 12 Installation Guide / SolarTerrace II-A System Adjusting Make final adjustments to Racking System. Adjust vertically: Loosen Bolt 1 and slide along ellipse hole. Adjust Tri-groove beam parallel: Loosen Bolt 2 and Bolt 3, turn Post Head slightly, move Al Tube left and right until being parallel.
- Page 13 Installation Guide / SolarTerrace II-A Girder Extension Installation Insert half of the Splice for Tri-Groove Square Girder into one end of the Girder on the pre- assembled support. Apply 6 sets of self-drilling screws ST6.3*22 in the connection position on both sides, the screws have to be fixed according to the figure with dimension on the right.
- Page 14 Installation Guide / SolarTerrace II-A Fix the Splice for Tri-Groove Square Girder at the other side of the Girder on the pre-assembled support according to the steps above. Fig. 19 The Girder Extension installation on the pre-assembled support of PVezRack® SolarTerrace II-A is completed as shown on the right.
- Page 15 Installation Guide / SolarTerrace II-A T-Rail Installation Direct Installation Slide T-Rails into Pre-assembled rail clamp on Tri-groove Pre-assembled beams and use a 6mm Allen key (Hex) to fasten on another Rail Clamp side via Rail Clamp for T-Rail. Recommended Torque: M8: 18-20N·m Rail Clamp Note:...
- Page 16 Installation Guide / SolarTerrace II-A East/West Adjustable Bracket Installation (Optional) C l i c k t h e p r e - a s s e m b l e d E a s t / W e s t Adjustable Bracket into the Tri-Groove Square Girder and adjust properly as shown in Fig.
- Page 17 Installation Guide / SolarTerrace II-A Tilt the T Rail to a certain angle and slide into the groove of East/West Adjustable Brackets of the same height on the Tri-Groove Square Girder. Then use a 6mm Allen key (Hex) to fasten on another side via Rail Clamp for T-Rail. Fasten all the M12 bolts on the East/West Adjustable Brackets.
- Page 18 Before module and clamps installation, it is important to arrange how to position grounding clips to achieve earthing continuity between each PV modules and rails. The Clenergy recommends three different methods for Grounding Clips Layout Arrangement. Method 1: “Even and Odd”...
- Page 19 Installation Guide / SolarTerrace II-A Important Notes for any of method above: • When replacing defective PV Modules, it is required to replace the grounding clips under the defective PV Modules; • When removing defective PV Modules, it is required to keep sufficient grounding clips to maintain all other PV modules’...
- Page 20 Installation Guide / SolarTerrace II-A Important Notes: • To fix the Grounding Clip properly, ensure the frames of PV Modules are completely pressed against End and Inter Clamps and Grounding Clips. Visually check that Grounding Clips are positioned properly; • Grounding Clips are intended for SINGLE USE ONLY! Only fasten the bolts down with recommended torque of 16~20 N·m when the position of the PV Module is finalized.
- Page 21 Installation Guide / SolarTerrace II-A Place the first PV Module on the Rails and apply the Akashi Clamp as the End Clamp and fasten slightly. Make sure the frame of the PV Module is fully in contact with the Akashi Clamp as shown in Fig. 42 and 43. Visually check the Akashi Clamp and PV module are properly installed.
- Page 22 Installation Guide / SolarTerrace II-A Grounding Lug Installation The Clenergy provides two types of grounding lugs to meet different installation requirements, such as required earthing cable sizes. In order to meet the minimum earthing electrical resistance requirement by AS/NZS 5033:2021, it is required to install one Grounding Lug per row of rail.
- Page 23 Installation Guide / SolarTerrace II-A B. The Austin – Commercial Grounding Lug (EZ-GL-AT) Place the grounding lug on top of rail and ensure z module is on the right position and lug sits flush on the rail surface as shown in Fig.
- Page 24 Installation Guide / SolarTerrace II-A There are two options for Grounding Lug installation. Option 1 Fix the Commercial Grounding Lug into the top channel of Rail as shown in Fig. 53a and b. Fig. 53a Installed in channel one Fig. 53b Installed in channel two Option 2 Fix the Commercial Grounding Lug into the top channel of Rail where is under the PV Module as shown in Fig.
- Page 25 Installation Guide / SolarTerrace II-A Clenergy 3/10 Duerdin St Phone: +61 3 9239 8088 Clayton VIC 3168 Email: sales@clenergy.com.au Australia Web: www.clenergy.com.au @ClenergyGlobal / @ClenergyClub / ClenergyAUS @Clenergy @ClenergyClub @Clenergy_global @Clenergy A Clenergy Technologies Company Code-Compliant Planning and Installation V 4.3...
