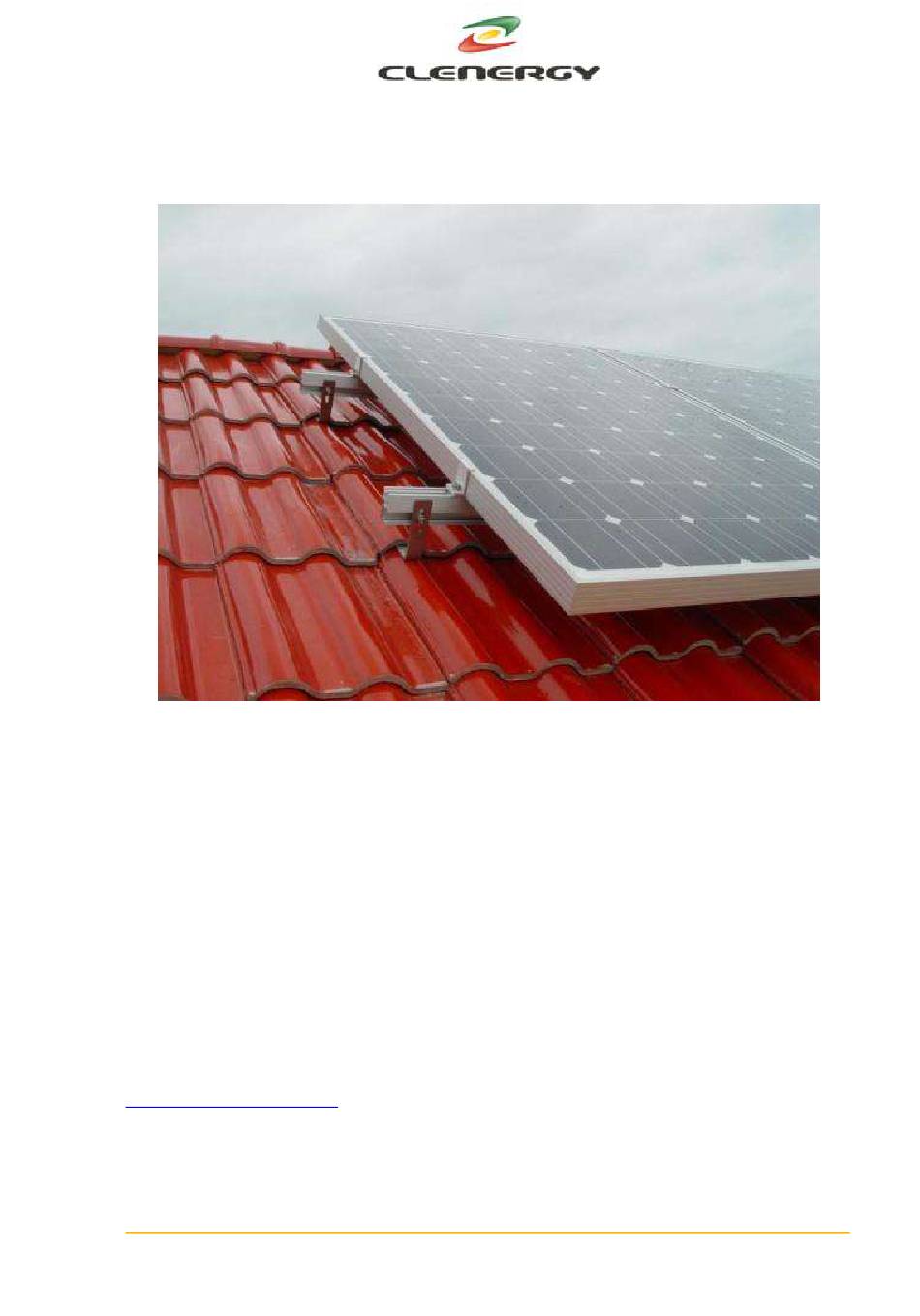

Clenergy PV-ezRack SolarRoof Installation Manual

Clenergy PV-ezRack SolarRoof
Code-Compliant Planning and Installation
With Australia AS/NZS1170
The Clenergy PV-ezRack™ has been developed as a universal system for roof-
mounting on pitched roofs. The use of patented aluminium base rails, the Z
module technology and the telescopic mounting technology eliminates custom
cutting and enables particularly fast installation.
Please review this manual thoroughly before installing your SolarRoof™ system.
This manual provides (1) supporting documentation for building permit
applications relating to PV-ezRack SolarRoof™ Universal PV Module Mounting
system, and (2) planning and installation instructions for SolarRoof™.
SolarRoof™ products, when installed in accordance with this guide, will be
structurally adequate and will meet the AS/NZS1170 standards. During
installation, and especially when working on the roof, be sure to observe the
appropriate safety regulations and please pay attention to the relevant
regulations of your local region. Please check that you are using the current
version of the installation manual by contacting Clenergy Australia by email on
Sales@clenergy.com.au, or your local representative in Australia.
PV-ezRack SolarRoof Code-Compliant Planning and Installation Guide (AU) V1.6 Page 1 of 18
