Summary of Contents for Clenergy PV-ezRack SolarRoof
Page 1

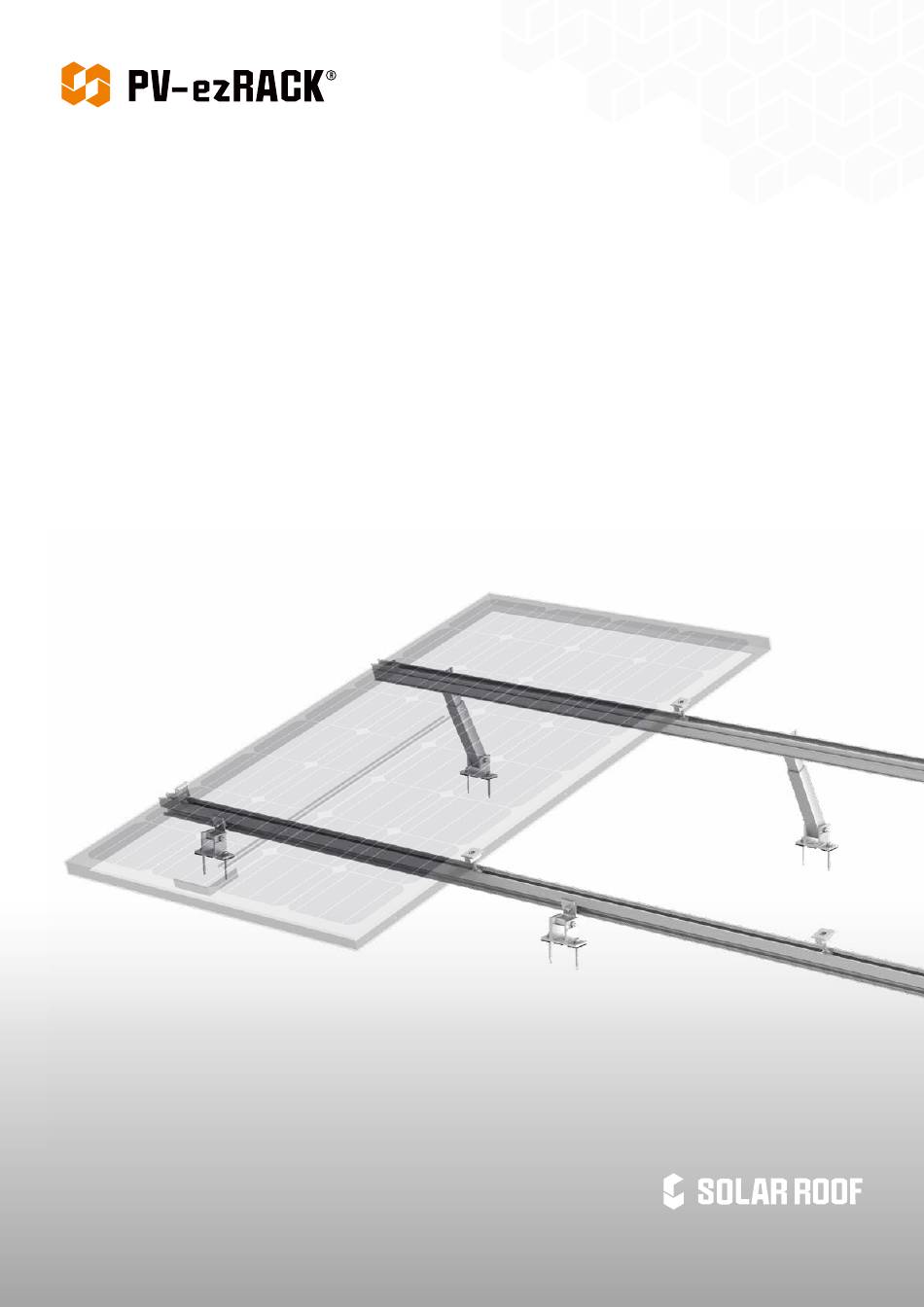

Penetrative Tilt Legs Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) Complying with AS/NZS 1170.2-2021 Last Updated - Jul. 2022...
Installation Guide / SolarRoof Tilt Legs Introduction The installer is solely responsible for: The Clenergy PV-ezRack® SolarRoof Tilt Legs has been developed as a universal PV-mounting system for roof-mounting on pitched and flat roofs. The use of • Complying with all applicable local or national...
Installation Guide / SolarRoof Tilt Legs Planning Determine the wind region of your installation site Wind regions map below shows 4 different wind regions in New Zealand: NZ1, NZ2, NZ3 and NZ4. The lee (effect) multiplier (M1ee) shall be evaluated for New Zealand sites in the lee zones below. In wind regions of NZ1 and NZ2 with M1ee over 500 m above sea level, the interface spacing reduction is applied.
Page 4
“Examples” in certificate to understand how to use maximum spacing in Sub-alpine Regions. If your installation site is in Alpine regions, please contact Clenergy to obtain a project specific engineering certificate to support your installation.
Page 5
Installation Guide / SolarRoof Tilt Legs New Zealand – Approximate Locations of Alpine and Sub-alpine Regions - Planning - Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) - Complying with AS/NZS 1170.2-2021 -...
Page 6
Please refer “SNZ TS 3404:2018 Durability requirements for steel structures and components” or consult local construction business to verify corrosivity category of installation site. If your installation site is not in the corrosion zones C1, C2 and C3, please contact Clenergy to obtain a project specific engineering certificate to support your installation.
Page 7
Installation Guide / SolarRoof Tilt Legs Determine Roof slope and Tilt Leg Angle The PV-ezRack® SolarRoof Tilt Legs system is suitable for rails running perpendicular to the roof slope (including standard and reverse tilt), and slope up to 10° for rails running parallel to the roof slope. Determine the Installation Area of Roof There are 4 different roof zones for tilt leg installation: Internal Zone, Intermediate Zone, Edge Zone and Corner Zone.
Page 8
1. The panels are clamped within one quarter of panel length; 2. Rear leg adjustable range: ER-TL-10/15: 260-375 mm; ER-TL-15/30: 390-635 mm; ER-TL-30/60: 675-1205 mm; 3. If the info. is different from the table and diagram, it could have different results. Please contact the Clenergy to confirm its applicability.
Page 9
Installation Guide / SolarRoof Tilt Legs - Planning - Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) - Complying with AS/NZS 1170.2-2021 -...
Page 10
Installation Guide / SolarRoof Tilt Legs - Planning - Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) - Complying with AS/NZS 1170.2-2021 -...
Page 11
Installation Guide / SolarRoof Tilt Legs - Planning - Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) - Complying with AS/NZS 1170.2-2021 -...
Page 12
Installation Guide / SolarRoof Tilt Legs (10) - Planning - Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) - Complying with AS/NZS 1170.2-2021 -...
Page 13
Installation Guide / SolarRoof Tilt Legs (11) (12) - Planning - Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) - Complying with AS/NZS 1170.2-2021 -...
Page 14
Installation Guide / SolarRoof Tilt Legs (13) (14) - Planning - Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) - Complying with AS/NZS 1170.2-2021 -...
Page 15
Installation Guide / SolarRoof Tilt Legs (15) - Planning - Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) - Complying with AS/NZS 1170.2-2021 -...
Installation Guide / SolarRoof Tilt Legs System Overview Overview of PV-ezRack® SolarRoof Adjustable Tilt Legs Adjustable Tilt Legs ② ① ⑤ ③ ④ ⑥ 1. End Clamp 2. Inter Clamp 3. Grounding Clip 4. ECO-Rail 5. Grounding Lug 6. Adjustable Tilt Legs Adjustable Tilt Legs with L-feet ②...
Page 18
Installation Guide / SolarRoof Tilt Legs Fixed Tilt Legs ② ① ⑤ ③ ⑥ ④ 1. End Clamp 2. Inter Clamp 3. Grounding Clip 4. ECO-Rail 5. Grounding Lug 6. Fixed Tilt Legs Precautions during Stainless Steel Fastener Installation Improper operation may lead to deadlock of Nuts and Bolts. The steps below should be applied to stainless steel nut and bolt assembly to reduce this risk.
Page 19
Safe Torques Please refer to safe torques defined in this guide as shown in the figure below. If power tools are required, Clenergy recommends the use of low speed only. High speed and impact drivers increase the risk of bolt galling (deadlock). If deadlock occurs and you need to cut fasteners, please make sure that there is no load on the fastener before you cut it.
Page 20
Installation Guide / SolarRoof Tilt Legs 2) Adjustable Tilt Legs with L-feet Note: Grounding Z Module, External Teeth Lock Washers, Spring washer and corrugated shim (with pins) on the diagram above are to create the electrical continuity between rail and rear leg tubes. 3) Fixed Tilt Legs Note: Grounding Z Module,External Teeth Lock Washer and Spring washer on the diagram above are to create the...
Installation Guide / SolarRoof Tilt Legs Installation Instructions Front & Rear Leg Installation Front Leg Installation According to the installation plan, determine the mounting position and direction of the front legs. Either two screws or single screw (Buildex 14-11 x 70 Hex Head Zips screw) is required depending on the installation spacing requirement. See two screws and single screw options in Figures 1 and 2.
Page 22
Installation Guide / SolarRoof Tilt Legs Rear Leg Installation According to the installation plan, after confirming the length L of the Rear Leg, fasten two M8*12 bolts as shown in Figure 4. Recommended torque for M8*12 bolts is 18~20 N·m Figure 4 According to the installation plan, either two screws or single screw (Buildex 14-11 x 70 Hex Head Zips screw) is used to install rear leg.
Page 23
Installation Guide / SolarRoof Tilt Legs Install the remaining Front and Rear Legs in Figure 10. NOTE: WHEN USING TIN INTERFACES FOR INSTALLATION WORKS, SCREWS NOT EXPOSED TO FREQUENT RAIN SHOULD BE WASHED DOWN WITH FRESH WATER AT LEAST EVERY 6 MONTHS TO MEET THE WARRANTY CONDITIONS OF BUILDEX SCREWS.
Page 24
Installation Guide / SolarRoof Tilt Legs Figure 14 Figure 15 PV Module Installation 1) Please refer PV-ezRack® Grounding System for PV modules clamps and grounding lugs installations. 2) The installers must ensure panel clamps are installed flush mounted to the panel frame and apply correct torque value of clamp fastener as shown in section "Safe Torques (P17)".
SolarRoof Tilt Mount System installation with penetrative fixing within New Zealand. The design check has been based on the information and test reports provided by Clenergy Australia. This certificate is only valid for Clenergy PV-ezRack SolarRoof. The roof structure or the building structure and PV panels shall be assessed separately and accordingly.
Page 26
Attachment: - Summary table for interface spacing, 10148-2-Rev1-Roof Mount-4 zone-2021-Tiit 10148-2-Rev1- Array Frame Engineering Certificate - Clenergy PV-ezRack Tilt Mount Penetrative System for New Zealand - Certification - Code-Compliant Planning and Installation Guide V 1.0 (New Zealand) - Complying with AS/NZS 1170.2-2021 -...
