Clenergy PV-ezRack SolarRoof Planning And Installation Manual

Terracotta tile
Hide thumbs Also See for PV-ezRack SolarRoof:
Table of Contents

Advertisement

Quick Links

Download this manual
Terracotta Tile
Code-Compliant Planning and Installation Guide V 1.0
Complying with AS/NZS1170.2-2011 AMDT 2-2016
Last Updated - May. 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV-ezRack SolarRoof and is the answer not in the manual?

Questions and answers

Related Manuals for Clenergy PV-ezRack SolarRoof

Summary of Contents for Clenergy PV-ezRack SolarRoof

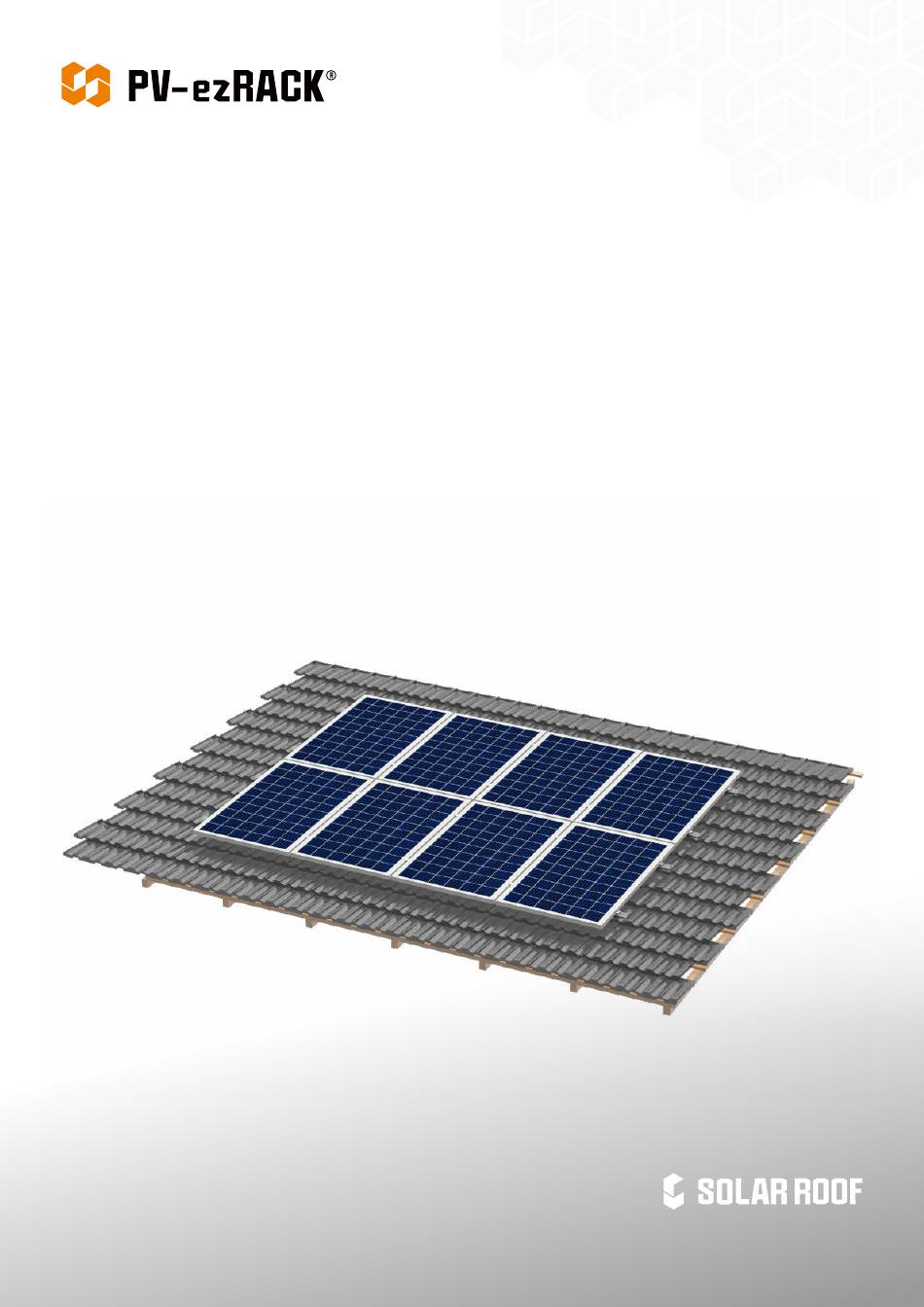

  • Page 1 Terracotta Tile Code-Compliant Planning and Installation Guide V 1.0 Complying with AS/NZS1170.2-2011 AMDT 2-2016 Last Updated - May. 2022...

  • Page 2: Table Of Contents

    Verifying atmospheric corrosivity zone of installation that you are using the latest version of the Installation site by referring to AS 4312-2008 or consulting local Manual, which you can do by contacting Clenergy construction business to determine appropriate Australia via email on tech@clenergy.com.au or products and installations.products and installations.

  • Page 3: Planning

    Installation Guide / SolarRoof Terracotta Tile Planning Determine the wind region of your installation site Region Definition: Wind regions are pre-defined for the whole of Australia by the Australian Standard 1170.2. The Wind Region is an independent factor of surrounding topography or buildings. •...
  • Page 4 Terrain Category 4 (TC4) – Terrain with numerous larger, high (10m to 30m tall) and closely-spaced constructions buildings, such as large city centers and well-developed industrial complexes. If your installation site is not at TC 2, 2.5 or 3, please contact Clenergy to obtain a project specific engineering certificate to support your installation.

  • Page 5: Er-I-01

    Installation Guide / SolarRoof Terracotta Tile Determine Roof slope The PV-ezRack® SolarRoof system can be used for roof slopes up to 60°. Please verify that the Installation site roof slope is between 0° and 60°. Determine the Installation Area of Roof Please refer to the generic notes 29, 30 and 32 of Certification Letter to determine the installation area based on building height, length, and width.
  • Page 6 Assembly Drawing Please refer below for a case example of an assembly drawing of Clenergy Tile Bracket, ER-I-01, with Boral French Terracotta Tiles: For more information, refer to Installation Instruction on page 10.

  • Page 7: Tools & Components

    Installation Guide / SolarRoof Terracotta Tile Tools and Components Tools Angle Grinder with Screw Driver Torque Spanner Spanner 5m Tape (for M8 Hexagon Stone Disk Socket Screw) String & Marker Pen Components ER-EC-ST ER-IC-ST C-U/30/46-G C-U/30/46 ER-EC-DU35/40 End Clamp Inter Clamp Universal Clamp Universal Clamp End Clamp,...

  • Page 8: Tile Interface With

    Installation Guide / SolarRoof Terracotta Tile Components ER-I-01/EZC/ECO ER-I-51 ER-I-23 ER-I-26 ER-I-41/EZC/ECO Tile Interface with Tile Interface, 118mm Tile Interface-Landscape Tile Interface-Side Adjustable Tile Interface horizontal arm mount with ezclick connection, ezClick connection for 120 mm horizontal arm ECO-Rail ER-I-61/EZC/ECO EZ-RE-200 IS-SR265/111 AB-SR/IS/260...

  • Page 9: System Overview

    In case power tools are required, Clenergy recommends the use of low speed only. High speed and impact drivers increase the risk of bolt galling (deadlock) If deadlock occurs and you need to cut fasteners, ensure that there is no load on the fastener before you cut it.
  • Page 10 If you need to do any on-site modifications or alteration of the system please provide marked up drawings/sketches for Clenergy’s review, prior to modification, for comment and approval. - System Overview - Code-Compliant Planning and Installation Guide V 1.0 - Complying with AS/NZS1170.2-2011 AMDT 2-2016...

  • Page 11: Installation Instructions

    Installation Guide / SolarRoof Terracotta Tile Installation Instructions - Assess the number of modules in the vertical direction using the module height plus at least 18mm between modules (please check the installation manual of the solar module manufacturer). - Assess the Number of modules in the horizontal direction using the module width plus 18 mm (20 mm if using Universal Clamps) between the modules.
  • Page 12 If necessary, pack the roof hook with max pack height of 17 mm for Clenergy provided Buildex 50 mm long screw, with max pack height of 35 mm for Clenergy provided Buildex 65 mm long screw. If necessary, use an angle grinder to cut a recess in the tile covering the Roof Hook at the point where the Roof Hook extends so that the tile lies flat on the surface.
  • Page 13 Installation Guide / SolarRoof Terracotta Tile Caution! Do not use fitted roof hooks as a ladder, as this extreme point load could damage the tile below. Variation for installation on plain tile roofs with plain tile roof cladding: A recess must be cut into the tiles around the position of the roof hook. The tile flashing should be used if necessary, to prevent ingress of water.
  • Page 14 Installation Guide / SolarRoof Terracotta Tile Adjust the vertical and horizontal positioning using the long hole in the Roof Hook and the loosely connected Z Module in the rail, as shown in the figure on the right. The roof hook should not protrude over the rail after the ±19mm adjustment.
  • Page 15 Installation Guide / SolarRoof Terracotta Tile Place the PV Modules on to the rails and fix with End Clamps, Inter Clamps or Universal Clamps. Fasten with the Allen key. Please use Solution 1 or 2 below according to your project. Solution 1 (Apply Standard Clamps) Step 1: Place the first PV Module on the Rail according to your plan and...
  • Page 16 Installation Guide / SolarRoof Terracotta Tile Solution 2 (Apply Universal Clamps) Step 1: Twisting the head of the Universal Clamp changes the functionality from End to Inter Clamp as shown in the figure on the right. NOTE: Please ensure the Universal Clamp C-U/30/46 or Universal Clamp with Grounding Clip C-U/30/46-G is positioned correctly according to "Deployment of Grounding Clips"...
  • Page 17 Installation Guide / SolarRoof Terracotta Tile Step 4: When using as an Inter Clamp, click the Universal Clamp into the rail channel and slightly lift the framed PV Module to ensure the Grounding Clip is fully covered as shown in the figure on the right. Step 5: Loosely place the next framed PV Module into the other side of the Universal Clamp.
  • Page 18 Installation Guide / SolarRoof Terracotta Tile Apply one pre-assembled Grounding Lug per Rail. Slide the Grounding Lug into to the rail channel and fasten the bolt M8*25 with 16~20 N·m. Strip earthing cable (the maximum size is 10 mm2 ) and insert the conductor into the provided copper tube.

  • Page 19: Certification

    Installation Guide / SolarRoof Terracotta Tile Certification             20 October 2020  Clenergy Australia  1/10 Duerdin Street  Clayton, VIC 3168  CERTIFICATION LETTER      Clenergy PV‐ezRack Solar Roof Certification – TC2, 2.5, 3 – Wind Region A, B, C, D. Internal REF: 00115.  Project REF: CL‐10088‐SM‐REV‐H.    MW  Engineering  Melbourne,  being  Structural  Engineers  within  the  meaning  of  Australian  regulations, have calculated the maximum spacings for the PV ez‐Rack rail system for the following  conditions:    ‐ Wind Loads to AS 1170.2‐2011 AMDT 4‐2016  o Wind Terrain Category 2, 2.5 and 3 ...
  • Page 20 MW Engineering Melbourne constitutes an infringement in copyright. Limitation: This report has been prepared for the exclusive use of Clenergy Australia, and is subject to and issued in connection with the provisions of the agreement between MW Engineering Melbourne and Clenergy Australia.
  • Page 21 Installation Guide / SolarRoof Terracotta Tile Internal REF: 00115 Client: Clenergy Australia Project: PV-ezRack SolarRoof tin and tile flush interface spacing tables Australian Standards AS/NZS 1170.0:2002 (R2016) General Principles AS/NZS 1170.1:2002 (R2016) Imposed loadings AS/NZS 1170.2:2011 (R2016) Wind Loadings AS/NZS 1664.1:1997-Amdt 1:1999 Aluminium Wind Terrain Category: 2, 2.5 &...
  • Page 22 Installation Guide / SolarRoof Terracotta Tile Contents ER-I-01 - T.C 2 ................................4 ER-I-01 - T.C 2.5 ................................. 6 ER-I-01 - T.C 3 ................................8 ER-I-05 - T.C 2 ................................10 ER-I-05 - T.C 2.5 ............................... 12 ER-I-05 - T.C 3 ................................14 General Notes ...............................
  • Page 23 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-01 (Tile Interface) Solar Panel Dimension 2 m x 1 m (Refer to Note 13...
  • Page 24 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables (Cont.) Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-01 (Tile Interface) Solar Panel Dimension 2 m x 1 m (Refer to...
  • Page 25 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-01 (Tile Interface) Solar Panel Dimension 2 m x 1 m (Refer to Note 13...
  • Page 26 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables (Cont.) Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-01 (Tile Interface) Solar Panel Dimension 2 m x 1 m (Refer to...
  • Page 27 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-01 (Tile Interface) Solar Panel Dimension 2 m x 1 m (Refer to Note 13...
  • Page 28 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables (Cont.) Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-01 (Tile Interface) Solar Panel Dimension 2 m x 1 m (Refer to...
  • Page 29 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-05 (Tin Interface) Solar Panel Dimension 2 m x 1 m (Refer to Note 13...
  • Page 30 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables (Cont.) Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-05 (Tin Interface) Solar Panel Dimension 2 m x 1 m (Refer to...
  • Page 31 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-05 (Tin Interface) Solar Panel Dimension 2 m x 1 m (Refer to Note 13...
  • Page 32 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables (Cont.) Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-05 (Tin Interface) Solar Panel Dimension 2 m x 1 m (Refer to...
  • Page 33 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-05 (Tin Interface) Solar Panel Dimension 2 m x 1 m (Refer to Note 13...
  • Page 34 Installation Guide / SolarRoof Terracotta Tile PV-ezRack SolarRoof Interface spacing tables (Cont.) Type of Rail ER-R-ECO (Refer to Note 7 for other compatible rails) Type of Interface ER-I-05 (Tin Interface) Solar Panel Dimension 2 m x 1 m (Refer to...
  • Page 35 Installation Guide / SolarRoof Terracotta Tile General Notes Note 1. Tile Roof Interface Spacing tables based on a minimum depth into F7 (Pine) timber of 25mm and Tin Roof Interface Spacing tables based on a minimum depth into F7 (Pine) timber of 35mm and Steel Purlins G450 1.5mm thick.
  • Page 36 Note 6. This engineering document was designed to cater for most common installation scenarios however, it does not cater for all of them. Contact Clenergy if you are unable to comply with any of the installation specifications listed on this document.

  • Page 37: Interface Er

    Description ER-I-01, 02, 04, 23, 26 Interface Tile Interface and 51 Interface ER-I-01/CS Carbon Steel Tile Interface Tile Interface with PV-ezRack SolarRoof, Tile Interface ezClick connection for ER-I-01/EZC/ECO with ezClick connection for ECO- ECO-Rail Rail Interface ER-I-05 Tin Interface Black Interface...

  • Page 38: End Clamp (*) Er-Ec-Fl/Xx/Xx

    Installation Guide / SolarRoof Terracotta Tile Components Part No. Description Adapter for Adapted for Corrugated Iron Roof EZ-AD-C43 Corrugated Roof for Tin interface ER-I-05 Black Adapter for Corrugated Roof Black Adapted for Corrugated Iron EZ-AD-C43/BA Roof for Tin interface ER-I-05 PV-ezRack Adapter for Corrugated Corrugated Adapter EZ-AD-C110...
  • Page 39 (R2016). Note 9. The installed frame must comply with the clamping zone of the PV Panel. Note 10. Capacities checked and compared against testing data from Clenergy Australia and MTS (NATA certified). Note 11. Maximum permitted rail overhang of 40%.
  • Page 40 Clenergy mounting system. Note 19. Neither Clenergy nor MW Engineering Melbourne are not to be responsible for external factors leading to compression of the tile interfaces.
  • Page 41 Installation Guide / SolarRoof Terracotta Tile Note 29. Conditions for flush mounted systems installed on flat and pitched roofs according to the D6 Appendix of the AS/NZS 1170.2:2011 (R2016). Roof pitch to be between 1° and 30°. h/d < 0.5 and h/b < 0.5. Being h= height, b= width and d= length of the building as per the below picture.
  • Page 42 Installation Guide / SolarRoof Terracotta Tile Roof Pitch < 10° Roof Pitch > 10° Flat/Mono – Slope Roof < 10° October 2020 | Page 23 - Certification - Code-Compliant Planning and Installation Guide V 1.0 - Complying with AS/NZS1170.2-2011 AMDT 2-2016...
  • Page 43 ER-HB-8/150 and ER-HB-10/200A. The Hanger Bolt for metal purlin/rafter is ER-HB- MP/8/150EP. Note 35. Neither Clenergy nor MW Engineering Melbourne will be responsible for the integrity of the roof tiles when using hanger bolts for the solar installation. It will be the clients' responsibility to check the hanger bolt installation feasibility.
  • Page 44 Clenergy 1/10 Duerdin St Phone: +61 3 9239 8088 Clayton VIC 2168 Email: sales@clenergy.com.au Australia Web: www.clenergy.com.au @ClenergyGlobal / @ClenergyClub / ClenergyAUS @Clenergy @ClenergyClub @Clenergy_global @Clenergy A Clenergy Technologies Company...
