Thermogroup 5255 Installation & User Manual

Installation & User Guide

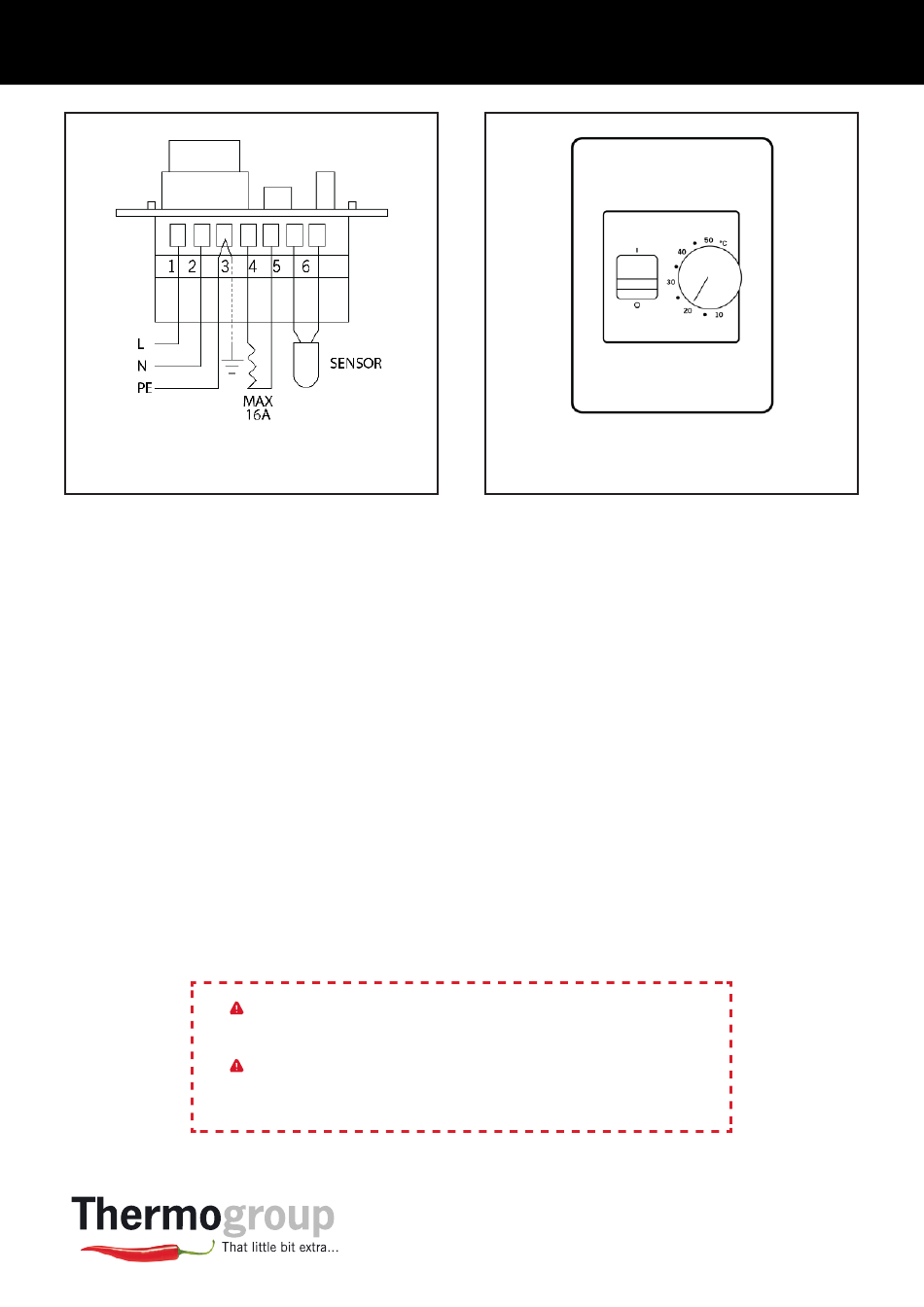

Schematic
1. Supply cable live
2. Supply cable neutral
3. Earth cables
Installing the Thermostat
• A conduit should be in place prior to installation. This conduit holds the sensor probe allowing it to
be removed where necessary.
• Ensure the floor sensor is installed running to the Thermostat location as the unit will be non-
operational without a floor sensor installed.
1. Remove the temperature dial using a flathead screwdriver.
2. Unscrew the captive screw situated to the left under the temperature dial (see Fig. 1 overleaf)
using a cross head screwdriver and remove the face plate.
3. Wire in the sensor probe, mains cable and Underfloor Heating cold tail as per the wiring diagram
above. Ensure that the wiring is adequate for the total load of the Underfloor Heating system.
4. Secure the back plate and main body to the back box with the 3.5mm screws provided. Tidy the
cables during installation to avoid entrapment and cable damage.
5. Reposition the face plate surround and tighten the captive screw.
6. Replace the cap, making sure the dial goes back in the correct temperature position.
4. Heating system live
5. Heating system neutral
6. Sensor probe
ALL ELECTRICAL WORK IS TO BE CARRIED OUT BY A QUALIFIED
ELECTRICIAN IN ACCORDANCE WITH ELECTRICAL GUIDELINES
THIS UNIT IS 240V AT THE BASE SO IT NEEDS TO BE INSTALLED IN
THE APPROPRIATE ZONE (OUTSIDE OF ZONE 1) AT THE DISCRETION
OF THE ELECTRICIAN
5255 Manual Thermostat
Front View
1
2
3
1. Back plate
2. Face plate
4
3. On & off switch
4. Temperature dial
1300 368 631
