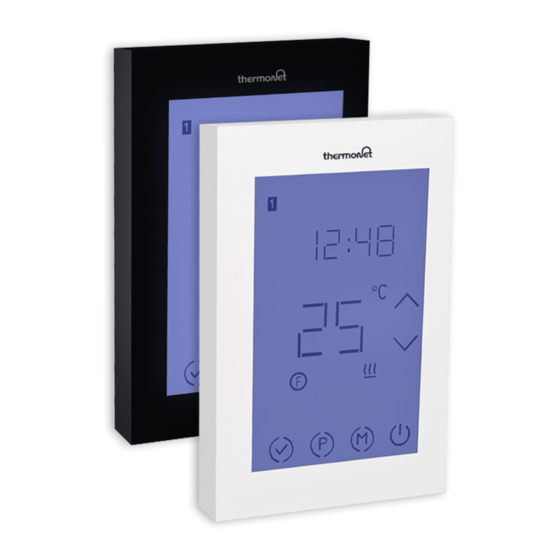

Touchscreen 7 day thermostat

Advertisement

Quick Links

TNTRP / TNTRL / TNTRPB / TNTRLB
Touchscreen 7 Day Thermostat
Installation & User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TNTRP and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermogroup TNTRP

  • Page 1 TNTRP / TNTRL / TNTRPB / TNTRLB Touchscreen 7 Day Thermostat Installation & User Guide...
  • Page 2: Table Of Contents

    Contents Installing the thermostat ……………… User Interface ..…………..….… Setting the date & time ..…………… Heating modes ..…………………..… Advanced settings ..……………….… Setup your heating schedule ……….. Technical data ..……………………... Key lock ..…………………………..… Temporary override ….…………….… Factory reset ….…………….………… Holiday mode ….…………….……… Service and support ..……………..…...
  • Page 3: Installing The Thermostat

    Installing the thermostat Carefully separate the front half of the thermostat from the back plate by placing a small flat head terminal driver into the slots on the bottom face of the thermostat. Carefully unplug the cable connector which is plugged into the front half of the thermostat.
  • Page 4 Wiring Diagram...
  • Page 5: User Interface

    User Interface 1. Day indicator 2. Key lock icon 3. Schedule mode icon 4. Manual mode icon 5. Temperature indicator 6. Confirm settings 7. Program button 8. Mode button 9. Power button 10. Air/Floor sensoring mode 11. Up & down arrows 12.
  • Page 6: Setting The Date & Time

    Setting the date and time Press and the time will begin to flash to select the correct time Press until the day begins to flash (Note: Monday is Day 1) to select the correct day Press to save the settings...
  • Page 7: Heating Modes

    Heating Modes When the timer is on, press the to switch between manual and schedule modes. Manual Mode In manual mode press the to set the desired temperature. Schedule Mode In the schedule mode the timer will follow the heating schedule that is set. Refer to page 10 for programming instructions.
  • Page 8: Advanced Settings

    Advanced Settings To access the advanced settings, turn the timer off by pressing Press to display setting 01 Use the to adjust the settings Press to cycle between setting 01 to 12 Press to save the settings Menu Description Range Default A= Air Sensoring Only F= Floor Sensoring...
  • Page 9 Menu Description Range Default Auto Exit Time 5 – 30 seconds 20 Seconds A: Display air temp only Temperature F: Display floor temp A: Display air temperature Display Mode only only AF: Display air & floor temp alternatively Max Floor Temp 20°C - 40°C 40°C by default Limit...
  • Page 10: Setup Your Heating Schedule

    Set up your heating schedule (For 5+2 Day Program) Turn the timer on by pressing To set up the heating schedule for Monday to Friday press The time for P1 will flash. This is the first ON period for the day. Use the to adjust the time to when the underfloor heating will turn on in the morning.
  • Page 11 Set up your heating schedule (For 5+2 Day Program) Press to set period 2, which is when the underfloor heating will turn off. Use the adjust the time. Press and the temperature will flash. Using the select the off temperature for P2 (Recommended between 15-18°C).
  • Page 12 Set up your heating schedule (For 5+2 Day Program) and P4 and ensure that the time set for P3 and P4 is after the time set for P2. When Monday-Friday has been set press to go onto the Saturday and Sunday schedule. The time for P1 will flash.
  • Page 13 Set up your heating schedule (For 5+2 Day Program) Press to set period 2, which is when the underfloor heating will turn off. Use the adjust the time. Press and the temperature will flash. Using the select the off temperature for P2 (Recommended between 15-18°C).
  • Page 14 Set up your heating schedule (For 7 Day Program) Change the advanced menu option 11 to setting 02 (7 Day Program) as per instructions in advanced settings section. The 7day program option means that all 7 days can be programmed to the same schedule or all 7 days can be programmed individually.
  • Page 15 Set up your heating schedule (For 7 Day Program) The time for P1 will flash. This is the first ON period for the day. Use the to adjust the time the underfloor heating will turn on in the morning. Press and the temperature will flash.
  • Page 16 Set up your heating schedule (For 7 Day Program) Press and the temperature will flash. Using the select the off temperature for P2 (Recommended between 15-18°C). Repeat above steps for P3 and P4 and then press (Note: P3 is turning the underfloor heating on in the evening and P4 is turning it off in the evening) If programming all 7 days to the same schedule, the program is now set up.
  • Page 17: Technical Data

    Technical data Supply voltage 230 - 240VAC Maximum Load IP Rating IP30 Warranty 2 Years Width 80mm Height 120mm Depth 45mm (27mm in wall) Temp Range 5°C - 35°C Floor Sensor 10 Kohm (Resistance at 25°C)
  • Page 18: Key Lock

    Key Lock To lock the key pad, press and hold the for 5 seconds or until the displays. To unlock press and hold the until the disappears.
  • Page 19: Temporary Override

    Temporary override Turning the timer onto temporary override will allow the timer to be operated on manual until the next programmed period In schedule mode, press the and the temperature display will flash. to adjust the desired temperature and press to confirm.
  • Page 20: Factory Reset

    Factory Reset Press to turn the timer off Press and the hold until is displayed. Press twice to display Press and hold approx. 5 seconds will display on the screen and then the timer has been reset. Turn the timer back on to setup the program...
  • Page 21: Holiday Mode

    Holiday Mode The thermostat does not have a dedicated holiday mode. To suspend the heating schedule for a period of time turn the thermostat off using button. This will ensure the heating schedule is held and then to resume the heating schedule press button.
  • Page 22 Notes...
  • Page 23 Notes...
  • Page 24: Service And Support

    Service and support Thermogroup AU PO Box 822 Leeton NSW 2705 1300 368 631 sales@thermogroup.com.au www.thermogroup.com.au...
