Summary of Contents for Thermogroup Thermotouch 4.3iC

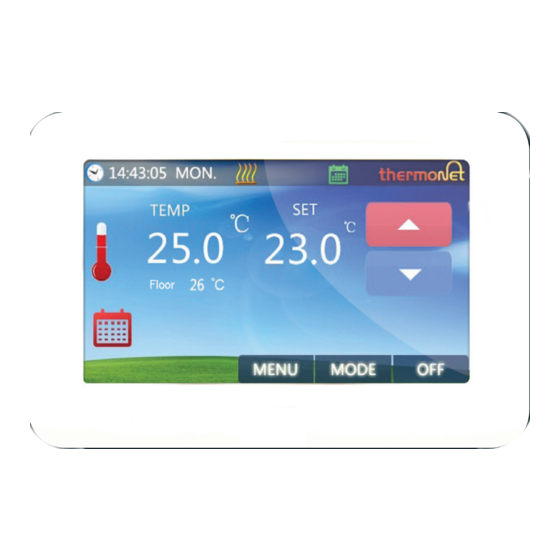

  • Page 1 5240IG 5240 Thermotouch 4.3iC ® Truetouch Colour Thermostat ®...

  • Page 2: Important Safety Regulations

    Introduction 5240IG Thermotouch 4.3iC thermostat ® ® Thermotouch 4.3iC is a digital thermostat, which is designed for electric floor ® heating systems with a maximum load of up to 16A (3600W). Thermotouch 4.3iC features a 4.3” Intelligent Control Truetouch colour display and 4 ®...

  • Page 3: Installation

    0800 019 5899. Installation step 1: release the face plate Push the three clips located on the bottom of Thermotouch 4.3iC in with a ® screwdriver, releasing the face plate. step 2: Disconnect ribbon cable &...
  • Page 4 Thermotouch 4.3iC ® 5240IG wire and replace face plate Loosen the tension screws to allow the wires to be inserted and fixed. Position the cables as shown in the wiring diagram and 3600W/16A 230V/AC Sensor ensure each screw is Ensure system is correctly earthed.
  • Page 5 ® Programming Thermotouch 4.3iC 5240IG Thermotouch 4.3iC interface ® on / off button heating icon mode button weekday icon menu button Ambient temperature Down button clock icon up button temperature icon mode icon floor temperature Set temperature mode icon area...
  • Page 6 ® Programming Thermotouch 4.3iC 5240IG mode icon key mENu mODE language selection holiday mode Press to choose one of Once selected, enables four languages ‘Holiday mode’ Pre-set temperatures Boost mode Use to define pre-set Once selected, enables temperatures ‘Boost mode’...

  • Page 7: Schedule Settings

    ® Programming Thermotouch 4.3iC 5240IG schedule settings Press mENu Button, then press review your weekly schedule. Select Mon - Fri, Sat or Sun to edit your custom heating schedule. Example: if you want to edit Sun schedule, press Sun column to enter the edit page as shown.

  • Page 8: Language Select

    ® Programming Thermotouch 4.3iC 5240IG Edit time & date Press mENu button, then button to edit date and time with buttons. Press APPlY to save the changes. mode pre-set temp. Press mENu button, then button to select a mode. Now edit that modes temperature with buttons.

  • Page 9: Protection Settings

    ® Programming Thermotouch 4.3iC 5240IG Protection settings Press mENu then button to enter protection settings page. You can set Over Protection temperature & Low Protection temperature with the buttons. Press APPlY to save the changes. high protection: This is an Over Heat Protection setting designed to monitor the floor temperature and limit it to a level set by you.

  • Page 10: Parameter Settings

    ® Programming Thermotouch 4.3iC 5240IG Parameter settings To access parameter settings switch Thermotouch 4.3iC OFF and ® immediately press for 2 seconds. You can set the desired values by pressing << or >> , and go to other pages by pressing PrE or NExT.

  • Page 11: Technical Specification

    Technical specification 5240IG Dimensions 60mm 19mm 31mm 94mm 4.3” 130mm freephone 0800 019 5899...

  • Page 12: Product Features

    Voltage: 230V, 50/60Hz Hop Pocket Lane, • Maximum load: 16A (3600W) Paddock Wood, Kent. TN12 6DQ • Temperature range: 5~35 www.thermogroupuk.com • Ambient: 0~50 sales@thermogroupuk.com • Sensor: NTC10k, 10kΩ at 25 0800 019 5899 • Accuracy: ± 0.5 E&OE ©Thermogroup UK 2013 0800 019 5899...
