4K/HDR
Five-Input HDMI Switcher
AT-HDR-SW-51

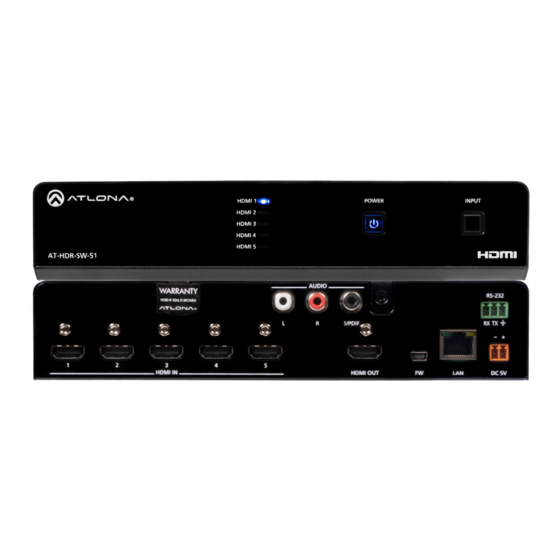

The Atlona AT-HDR-SW-51 is a 5x1 HDMI switcher for high dynamic range (HDR) formats. Part
of the comprehensive family of Atlona 4K HDR integration products, it features five HDMI inputs
and an HDMI output. The HDR-SW-51 is HDCP 2.2 compliant and supports 4K/UHD video @ 60
Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It is ideal for the latest
as well as emerging 4K/UHD and HDR sources and displays, and includes EDID management
features and automatic input switching. Additionally, 4K downscaling to 1080p @ 60, 30, or 24
Hz is available when connected to an HD display. The HDR-SW-51 can de-embed audio from
an HDMI input to S/PDIF or analog audio outputs. This HDMI switcher can be controlled via
Ethernet, RS-232, and IR.
Package Contents
1 x AT-HDR-SW-51
1 x Captive screw connector, 2-pin
1 x Captive screw connector, 3-pin
2 x Mounting plates
4 x Mounting screws
4 x Rack screws
1 x Long rack ear
1 x Short rack ear
4 x Feet w/rubber grips
1 x 5 V / 4 A DC power supply
IMPORTANT: Visit https://www.atlona.com/product/at-hdr-sw-51 for the latest
firmware updates and User Manual.
1
Installation Guide
AT-HDR-SW-51

Advertisement

Table of Contents
loading

Related Manuals for Panduit Atlona AT-HDR-SW-51

Summary of Contents for Panduit Atlona AT-HDR-SW-51

  • Page 1 Five-Input HDMI Switcher AT-HDR-SW-51 The Atlona AT-HDR-SW-51 is a 5x1 HDMI switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features five HDMI inputs and an HDMI output. The HDR-SW-51 is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.

  • Page 2: Front Panel Descriptions

    Installation Guide AT-HDR-SW-51 Front Panel Descriptions HDMI 1 POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 AT-HDR-SW-51 AUDIO OUT HDMI 1 - HDMI 5 INPUT RS-232 These LED indicators display which input Press and release this button to cycle S/PDIF RX TX is routed to the HDMI OUT port.

  • Page 3: Rear Panel Descriptions

    Installation Guide HDMI 1 POWER INPUT AT-HDR-SW-51 HDMI 2 HDMI 3 HDMI 4 HDMI 5 Rear Panel Descriptions AT-HDR-SW-51 AUDIO OUT RS-232 S/PDIF RX TX HDMI IN HDMI OUT DC 5V HDMI IN Connect an HDMI cable from each of Connect an Ethernet cable from this port these ports to an HDMI source.
  • Page 4 Installation Guide HDMI 1 POWER INPUT AT-HDR-SW-51 HDMI 2 HDMI 3 HDMI 4 HDMI 5 Power Connect the included 2-pin captive screw connector to the DC 5V power receptacle on the rear of the unit. The captive screw comes pre-wired as shown. AUDIO OUT RS-232 S/PDIF...

  • Page 5: Installation

    Installation Guide AT-HDR-SW-51 Installation Connect a source device to each of the HDMI IN (1 - 5) ports. Connect a display device to the HDMI OUT port. Connect an Ethernet cable from the LAN port to the Local Area Network (LAN). This step will be required in order to access the built-in web server.
  • Page 6 Installation Guide AT-HDR-SW-51 IP Configuration The AT-HDR-SW-51 is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. If the AT-HDR-SW-51 is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx/16.

  • Page 7: Accessing The Built-In Web Server

    Installation Guide AT-HDR-SW-51 Accessing the built-in Web Server The AT-HDR-SW-51 includes a built-in web server, which allows easy management and control of all features. Follow the instructions below to access the web server. Make sure that an Ethernet cable is connected between the LAN port on the AT-HDR- SW-51 and the network.

  • Page 8: Warranty

    Installation Guide AT-HDR-SW-51 Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-hdr-sw-51/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ®...
