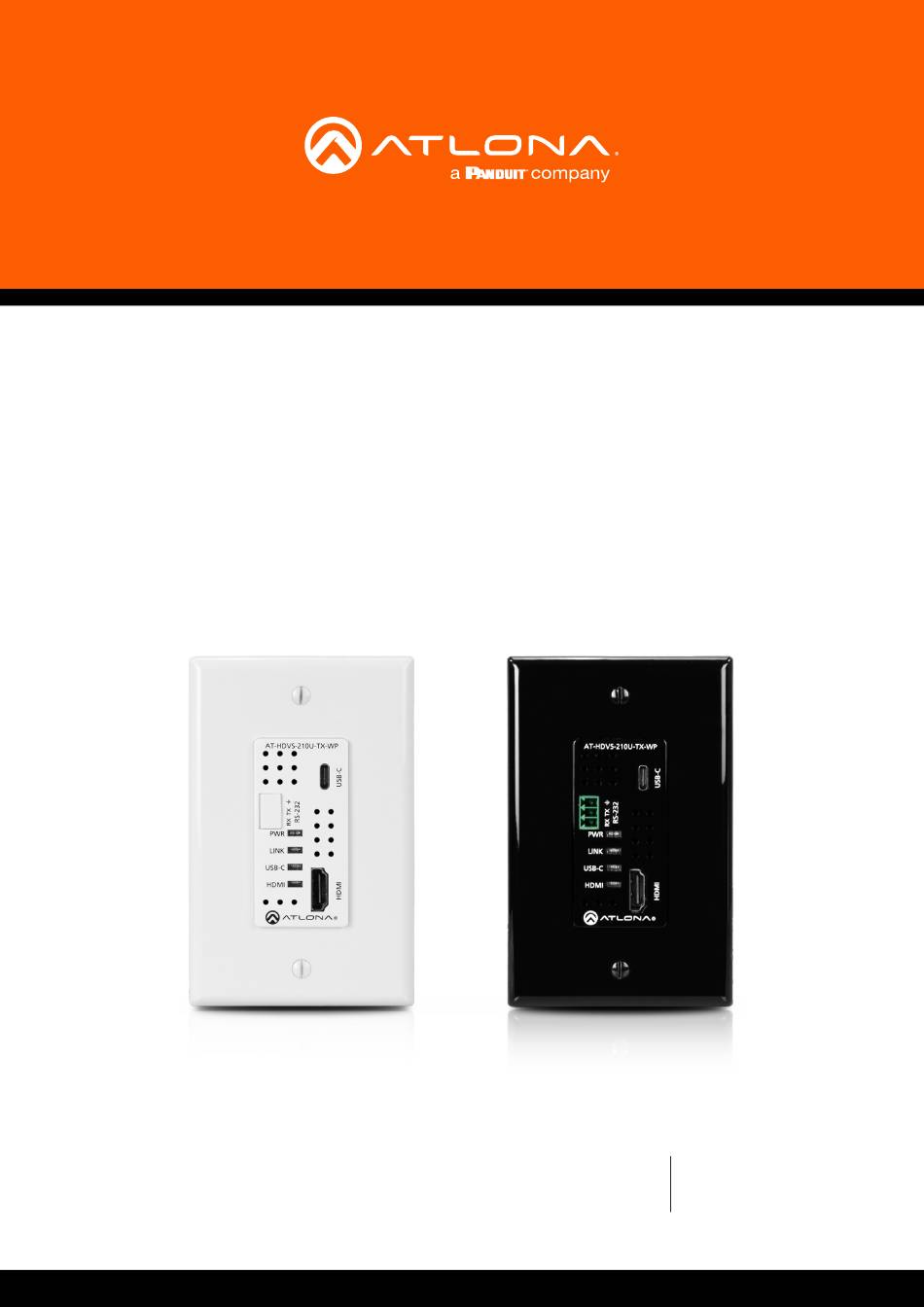

- Page 1 4K / UHD Two-Input Wallplate Switcher for HDMI and USB-C with HDBaseT Output ™ Atlona Manuals AT-HDVS-210U-TX-WP Switchers...
- Page 2 Version Information Version Release Date Notes Dec 2017 Initial release Feb 2018 f/w 1.0.10; added InputStatus and InputBroadcast commands Mar 2018 Commands moved to separate API document Jun 2019 1.0.31 web GUI updates; refer to Introduction to Web GUI (page 17) AT-HDVS-210U-TX-WP...
- Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
- Page 4 Atlona, Inc. (“Atlona”) Limited Product Warranty Coverage Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service. Under its Limited Product Warranty, Atlona, at its sole discretion, will either: •...
- Page 5 Atlona, Inc. (“Atlona”) Limited Product Warranty • Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 6 Important Safety Information 9. Do not defeat the safety purpose of a polarized CAUTION or grounding-type plug. A polarized plug has two RISK OF ELECTRIC SHOCK blades with one wider than the other. A grounding DO NOT OPEN type plug has two blades and a third grounding CAUTION: TO REDUCT THE RISK OF prong.
-
Page 7: Table Of Contents
Table of Contents Introduction Features Package Contents Panel Description Installation RS-232 Connector Connection Instructions Connection Diagram Faceplate Removal and Assembly IP Configuration Setting the IP Mode Setting the IP Address Using Commands Setting the IP Address using the Web GUI Resetting to Factory-Default Settings The Web GUI Introduction to Web GUI... -
Page 8: Introduction
Introduction The Atlona AT-HDVS-210U-TX-WP is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. The USB-C input is ideal for AV interfacing with Mac®, Chromebook™, and Windows® PCs, as well as smartphones and tablets. -
Page 9: Panel Description
Panel Description HDBaseT LINK USB-C HDMI Rear Front (White faceplate is shown) RS-232 Remove this cover to expose the RS-232 port. Connect an RS-232 cable, with a 3-pin captive screw connector, from this port to a control system. Refer to RS-232 Connector (page 10) for more information. -
Page 10: Installation
Installation RS-232 Connector The AT-HDVS-210U-TX-WP provides RS-232 control between an automation system and an RS-232 device. This step is optional. 1. Remove the small plate covering the RS-232 port on the faceplate. small plate X - W X - W U - T U - T 2 1 0... -
Page 11: Connection Instructions
Installation Connection Instructions 1. Determine the proper faceplate to be used for installation. If using the black faceplate, then refer to Faceplate Removal and Assembly (page 13) for information on changing the faceplate. 2. Connect an Ethernet cable, from the HDBaseT OUT port, on the rear of the unit, to one of the following devices. Ethernet cables should use EIA/TIA-568B termination: a. -
Page 12: Connection Diagram
Installation Connection Diagram Figure 1 UHD/HD Display I OU Wall cross-section T IN 1-gang electrical box AT-HDVS-200-RX or mud ring White Decora ® -style wallplate (included) -T X 21 0U Laptop V S- A T- LI N U SB AT-HDVS-210U-TX-WP Laptop Figure 2 Projector... -
Page 13: Faceplate Removal And Assembly
Installation Faceplate Removal and Assembly The AT-HDVS-210U-TX-WP includes an optional black faceplate and wallplate. Removal of the faceplate requires that the AT-HDVS-210U-TX-WP be disassembled from the electrical box or mud ring. 1. Remove the wall plate from the electrical box and slide out the AT-HDVS-210U-TX-WP assembly, as shown. It is recommended that the Ethernet cable, connected to the HDBaseT OUT port, be disconnected from the unit, to allow for easy installation of the faceplate. -
Page 14: Ip Configuration
Installation IP Configuration The AT-HDVS-210U-TX-WP is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Use an IP scanner, along with the MAC address on the back of the unit, to identify both the unit and its IP address on the network. If a static IP address is desired, the unit can be switched to static IP mode. -
Page 15: Setting The Ip Address Using Commands
Installation Setting the IP Address Using Commands Use the IPStatic and IPDHCP commands to switch between DHCP and IP mode through RS-232 or Telnet. Refer to API document for more information. All commands and their arguments are case-sensitive. • Setting static IP mode 1. -
Page 16: Resetting To Factory-Default Settings
Installation Resetting to Factory-Default Settings Resetting the AT-HDVS-210U-TX-WP requires that the front faceplate be removed. Refer to Faceplate Removal and Assembly (page 13) for more information. 1. Remove the faceplate from the AT-HDVS-210U-TX- 2. Press and hold the Reset button for 15 seconds. 3. -
Page 17: The Web Gui
The Web GUI Introduction to Web GUI The AT-HDVS-210U-TX-WP includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-HDVS-210U-TX-WP, as it provides intuitive management of all features. The AT-HDVS-210U-TX-WP is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. - Page 18 The Web GUI 3. The Login page for the receiver will be displayed. 4. Type root, using lower-case characters, in the Username field. 5. Type Atlona in the Password field. This is the default password. The password field is case-sensitive. When the password is entered, it will be masked.
-
Page 19: Menu Bar
The Web GUI Menu Bar The dark-colored bar, near the top of the screen, is the menu bar. When the mouse is moved over each menu element, it will be highlighted in light orange. Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu. -
Page 20: Buttons
The Web GUI Buttons Buttons are used to execute an action or setting. Several pages within the Web GUI include a Save button. Clicking the Save button will apply and save all settings in the current page. Other buttons, such as the Factory Default button, under the System page, reset the AT-HDVS-210U-TX-WP to factory-default settings AT-HDVS-210U-TX-WP... -
Page 21: Info Page
The Web GUI Info page Model Name The model SKU of this product. Software Version The version of firmware that the AT-HDVS-210U-TX-WP is running. Always make sure to check the AT-HDVS-210U- TX-WP product page, on the Atlona web site, for the latest version of firmware. On-Time (h-m) The time elapsed since the unit was last powered-on. -
Page 22: A/V Settings Page
The Web GUI A/V Settings page Input Selection Click the drop-down list to select the desired input. Setting Description Input 1 USB-C Input 2 HDMI 2 Auto Switch Three controls are available under the Auto Switch feature. • Auto Switch Click this toggle switch to enable or disable auto-switching. - Page 23 The Web GUI HDCP Settings Sets the HDCP reporting mode of the specified HDMI port. Input 1 = USB-C; Input 2 = HDMI 2. Some devices, such as Mac computers will transmit HDCP content if an HDCP-compliant display/sink is detected. Setting this value to OFF, will instruct the source to send non-HDCP content (if possible) to non-HDCP display and/or sink devices.
-
Page 24: Display Page
The Web GUI Display page CEC Command Click the ON or OFF button to turn the display on or off using CEC. Consumer Electronics Control (CEC): Atlona has confirmed proper CEC functionality with several current models of Samsung, Panasonic, and Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC “off”... - Page 25 The Web GUI Auto power off timer Sets the time interval, in seconds, between when the loss of A/V signal is detected and when the “Display Off” command is sent. Range: 5 seconds to 1 hour. Power on delay timer (Sec.) Sets the time interval, in seconds, between when the system is powered-on, and when system can re-enter the Auto Power Off state.
- Page 26 The Web GUI IP Address Enter the IP address of the device in this field. Port Enter the listening port of the device in this field. Username Enter the username for login. If the IP Mode is set to Non-Login, then this information will not be required. Password Enter the password for login.
-
Page 27: Rs-232 Page
The Web GUI RS-232 page Zone When the AT-HDVS-210U-TX-WP is connected to the AT-HDVS-200-RX, the drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200. If the AT-HDVS-210U-TX-WP is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device. -
Page 28: Edid Page
The Web GUI EDID page EDID Settings Click these drop-down lists to select the desired EDID to be used for each input. Input 1 = USB-C, Input 2 = HDMI. The source device will use the information in the EDID, before sending A/V data to the sink device. Available EDID Selections Default 1080p 3D MCH... -
Page 29: Config Page
The Web GUI Config page Old Username This field cannot be changed. “root” is the administrator user. Old Password Enter the current password for the “root” username in this field. The default password is “Atlona”. New Username This field cannot be changed. Save Click this button to save all changes. -
Page 30: System Page
The Web GUI System page IP Mode Click this toggle to set the IP mode of the AT-HDVS-210U-TX-WP. The default setting is DHCP. Available settings: STATIC IP, DHCP. Enter the IP address of the AT-HDVS-210U-TX-WP in this field. This field will only be available if IP Mode is set to STATIC IP. - Page 31 The Web GUI Power Under normal operation conditions, this toggle is set to ON. Click this toggle to OFF, to turn the AT-HDVS-210U-TX- WP “off”. When “off”, the PWR LED indicator will turn red. The PWOFF and PWON commands can also be used to control the power state.
-
Page 32: Hdbt Page
The Web GUI HDBT page HDBaseT Zone The AT-HDVS-210U-TX-WP has only a single HDBaseT output. Therefore, this drop-down list is disabled. Start Click the Start button to being the HDBaseT testing. During testing, the button text will change to “Stop”. Click the Stop button to halt the HDBaseT testing process. -
Page 33: Appendix
Appendix Updating the Firmware Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-HDVS-210U- TX-WP firmware can be updated using a USB-A to USB mini-B cable. Using the Web GUI Requirements: •... -
Page 34: Using Usb
Appendix 6. The following message box will be displayed. 7. Click the OK button to begin the firmware update process. Click the Cancel button to cancel the process. 8. After the firmware update process is complete, the Login screen will be displayed. Using USB Requirements: •... - Page 35 Appendix 4. Connect the USB-A to USB mini-B cable between the PC and the firmware port on the AT-HDVS-210U-TX-WP. The unit will be powered by the USB cable. 5. The USB UPDATE folder will be displayed. If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer. 6.
-
Page 36: Default Settings
Appendix Default Settings The following tables list the factory-default settings for the AT-HDVS-210U-TX-WP. Feature Settings A/V Settings Input Selection Input 1 Auto Switch Mode Fallback Port Previous Fallback Time 5 (seconds) HDCP Setting (Input 1) HDCP Setting (Input 2) Audio Output System Settings Display Auto Power On Disabled... -
Page 37: Specifications
Appendix Specifications HDMI 1 - Type A, 19-pin female USB-C* 1- USB Type-C v3.1, 24-pin, female RS-232 1 - 3-pin captive screw HDBaseT OUT 1- RJ45 Reset button 1 - momentary, tact-type 1 - LED, green LINK 1 - LED, green USB-C 1 - LED, green HDMI... - Page 38 Appendix Dimensions Wall 1 gang Weight Pounds Kilograms Device 0.4 lbs 0.18 kg Certification Unit CE, FCC AT-HDVS-210U-TX-WP...
-
Page 39: Index
Index Audio Operating notes muting Panel descriptions Password compatibility default Configuration See IP configuration compatible receiver Connection power injector diagram instructions Contents package RS-232 Control type settings setting Customer support Safety information Settings Default setttings auto-switching Description HDCP front / rear panel Specifications EDID Timers... - Page 40 Toll free US International atlona.com 877.536.3976 41.43.508.4321 • • © 2019 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice.
