Sierra d-flux Series Quick Start Manual

d flux Series
•

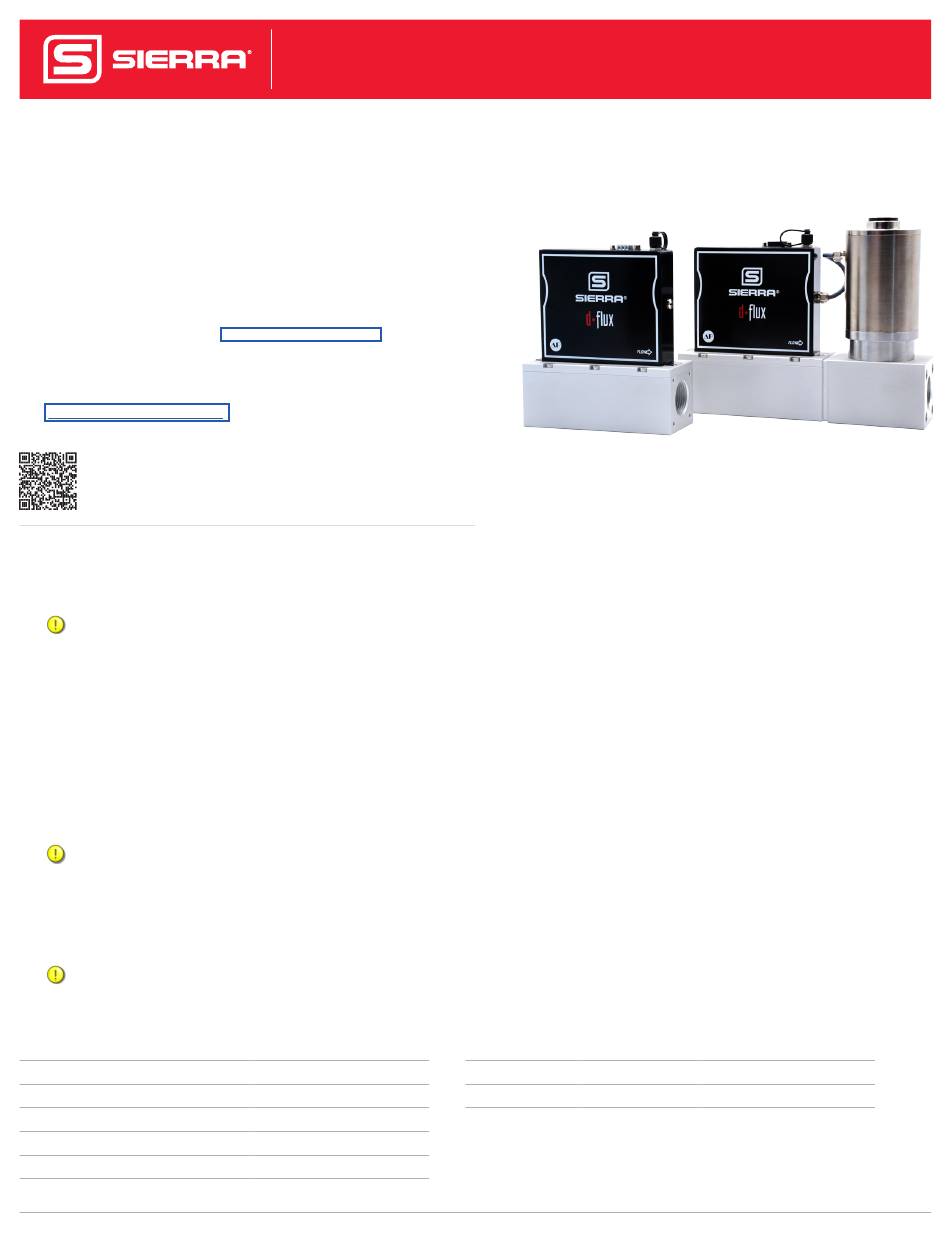

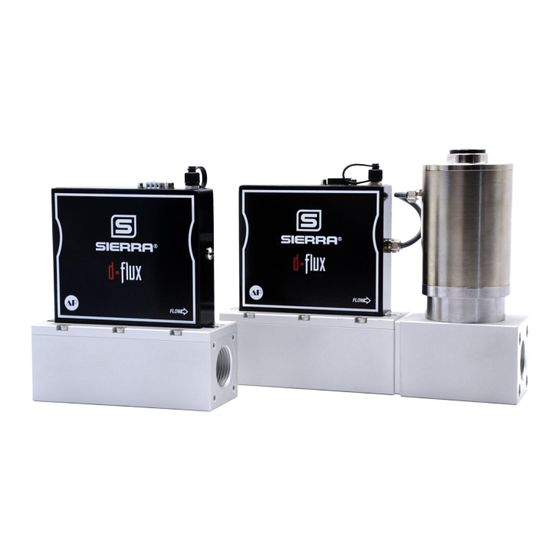

This Quick Start Guide is for the d•flux Multiparameter Mass Flow Meters
and Controllers and provides easy setup and installation instructions.
IMPORTANT!
Before installing and using your flow device, please read
this document carefully and follow the steps below.
Step 1. Download Instruction Manual
Please download and read the
installing your meter.
Step 2. Download the Sierra Flow Connector App
The Sierra Flow Connector App
connect to your d·flux instrument with an Android mobile device.
Download the app
from Google Play
Safety and General Information
1. For safe operation, please consider the process and conditions for which the device is designed and specified at the time of delivery. This
information can be found on the data label on the instrument housing and in the instruction manual.
Note d·flux flow meters and controllers are intented for dry clean gases only.
2. Do not remove the electronics housing to prevent damage to the unit. A damaged hologram seal will void the warranty.
3. There are no serviceable parts inside the unit. Repairs must be performed by qualified personnel only.
Installation and Electrical Connection
1. Do not use Teflon® tape or liquid sealing on the process connections.
2. Please ensure that the piping is clean and purged before you connect the flow meter.
3. The gas used must be clean and dry. Please note that two filters have been installed to protect against particle contamination.
4. It is recommended that the user checks the device on a regular schedule to ensure that it is leak free as both metal and elastomeric seals,
gaskets, O-rings and valve seats may change with age and exposure to process gas.
Note Your Sierra sales representative can help you to source suitable O-rings, elastomeric seals, fittings and filters.
5. Please refer to the d•flux Instruction Manual for detailed instruction on mounting orientation and location.
6. Please verify a proper electrical connection. The device must be grounded. The supply voltage is the following:
Meter: Supply voltage 18-36Vdc (200mA@24VDC, regulated, typical ±50mV)
Controller: Supply voltage 24VDC (2A@24VDC, regulated, typical ±50mV)
Note The current consumption depends on the instrument version. Please refer to the information in the d•flux Instruction Manual.
Default Factory Settings
Modbus RTU
Communication speed
Data bits
Stop bits
Parity
Node address
1 | 11-1227 d·flux Quick Start Guide – V1-2501
d·flux Instruction Manual before
allows you to conveniently and securely
9600 Baud
8
1
None
247
QUICK START GUIDE
PROFINET / EtherCAT
(optional)
Name
IP address
Further information on the device configuration can be found in the
instruction manual.
d•flux
0.0.0.0 or 192.168.0.50
