R&G ECC0021 Fitting Instructions

FITTING INSTRUCTIONS FOR ECC0021 LHS ENGINE CASE COVER
REMOVE
A
PLEASE READ THESE INSTRUCTIONS FULLY BEFORE STARTING
•
If fitting to the '13- model, remove both upper and lower side fairings, along with the plastic cover
over the ECU. Remove the rubber band, lift up the ECU and remove the three bolts that secure the
plastic support in place. This can now be removed to allow access to fit the engine case cover.
•
Please make sure the engine is cold before proceeding with the fitting of the R&G cover.
•
Remove fairing bolt in position arrowed 'A' to allow fairing to be gently eased away from casing to
allow fitting of engine case cover.
•
Remove the three engine case bolts arrowed above. Hold the cover loosely over the case to help
identify the correct ones. DO NOT REMOVE ALL OF THE CASE BOLTS.
•
Offer up the R&G cover to the engine and carefully fit it over the engine casing. Ensure that the
three R&G bolt holes are lined up with the holes in the engine casing, and then push on as far as it
will go.
•

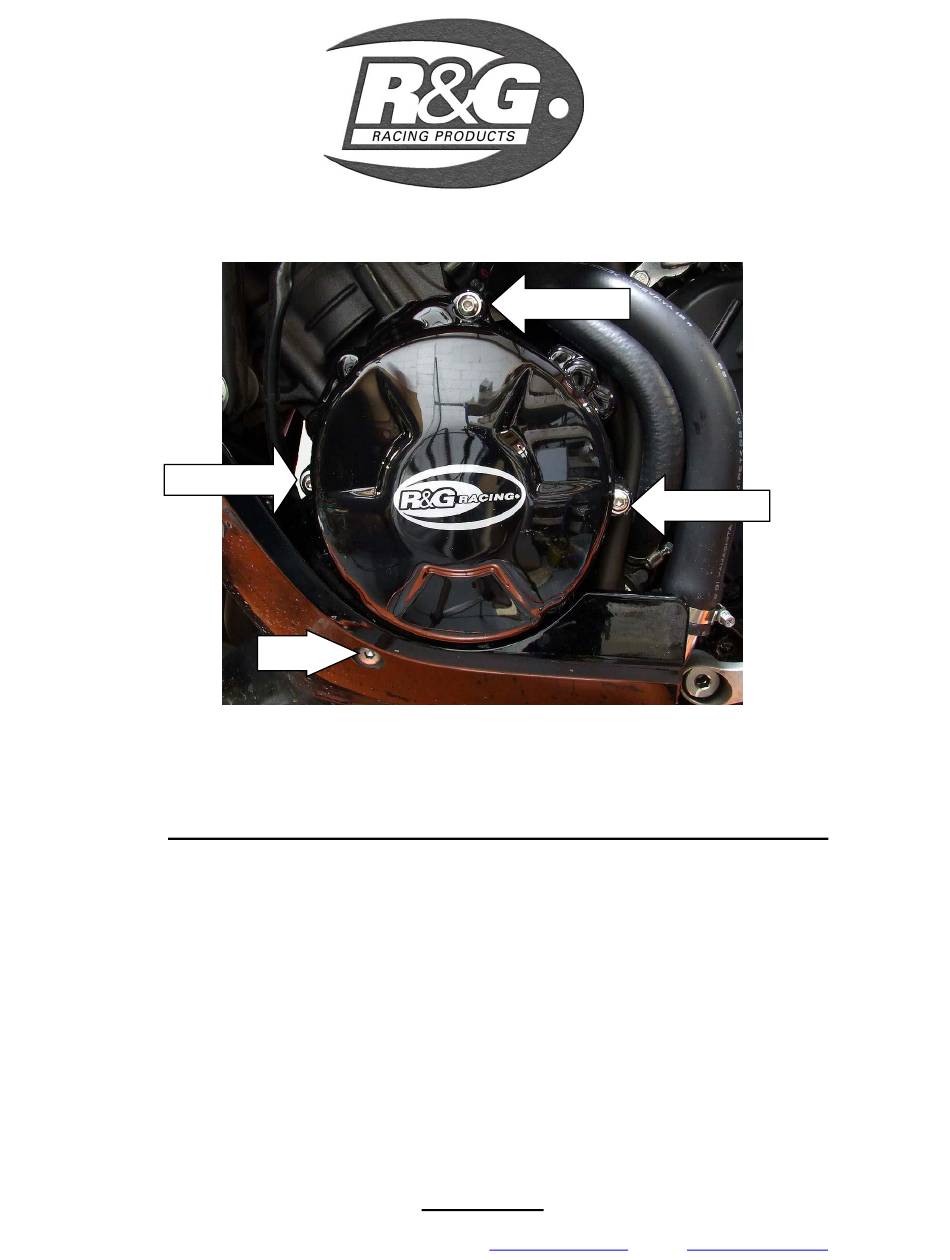

Fit the three button head bolts in positions arrowed in picture.
•
With a 5mm Allen key tighten the bolts equally so that they pull the cover into place. DO NOT
FULLY TIGHTEN.
Unit 1 Shelleys Lane, East Worldham, Alton, Hants GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
HONDA CBR 600RR '07-'13-
In this kit there should be
1 x Engine Case Cover (ECC0021)
3 x M6x40mm CAP HEAD BOLTS
R&G R
ACING
www.rg-racing.com
REMOVE
REMOVE
