R&G ECC0094R Fitting Instructions

Lhs generator case cover kawasaki zx10 2011 (race only)

Download this manual

FITTING INSTRUCTIONS FOR ECC0094R LHS GENERATOR CASE COVER

REMOVE

PLEASE READ THESE INSTRUCTIONS FULLY BEFORE STARTING



Please make sure the engine is cold before proceeding with the fitting of the R&G cover.



Remove side fairing.



Remove the three engine case bolts arrowed in picture. Hold the cover loosely over the case to

help identify the correct ones. DO NOT REMOVE ALL OF THE CASE BOLTS.

Unit 1 Shelleys Lane, East Worldham, Alton, Hants GU34 3AQ

Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301

KAWASAKI ZX10 2011 (RACE ONLY)

In this kit there should be:

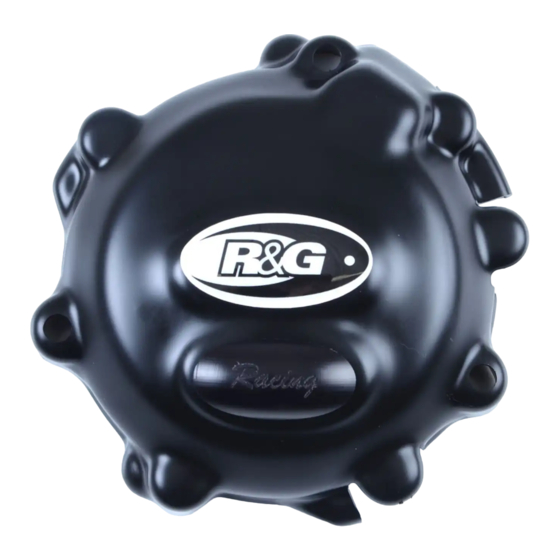

1 x Engine Case Cover (ECC0094)

1 x Aluminium strap (STRAP 94)

3 x M6x40mm long button head bolt

R&G R

ACING

www.rg-racing.com

REMOVE

Email:

info@rg-racing.com

Page 1 FITTING INSTRUCTIONS FOR ECC0094R LHS GENERATOR CASE COVER KAWASAKI ZX10 2011 (RACE ONLY) REMOVE REMOVE REMOVE In this kit there should be: 1 x Engine Case Cover (ECC0094) 1 x Aluminium strap (STRAP 94) 3 x M6x40mm long button head bolt PLEASE READ THESE INSTRUCTIONS FULLY BEFORE STARTING ...
Page 2  Offer up the R&G cover to the engine and carefully fit it over the engine casing. Ensure that the R&G bolt holes are lined up with the holes in the engine casing, and then push on as far as it will ...
