2.2 Introduction of front panel


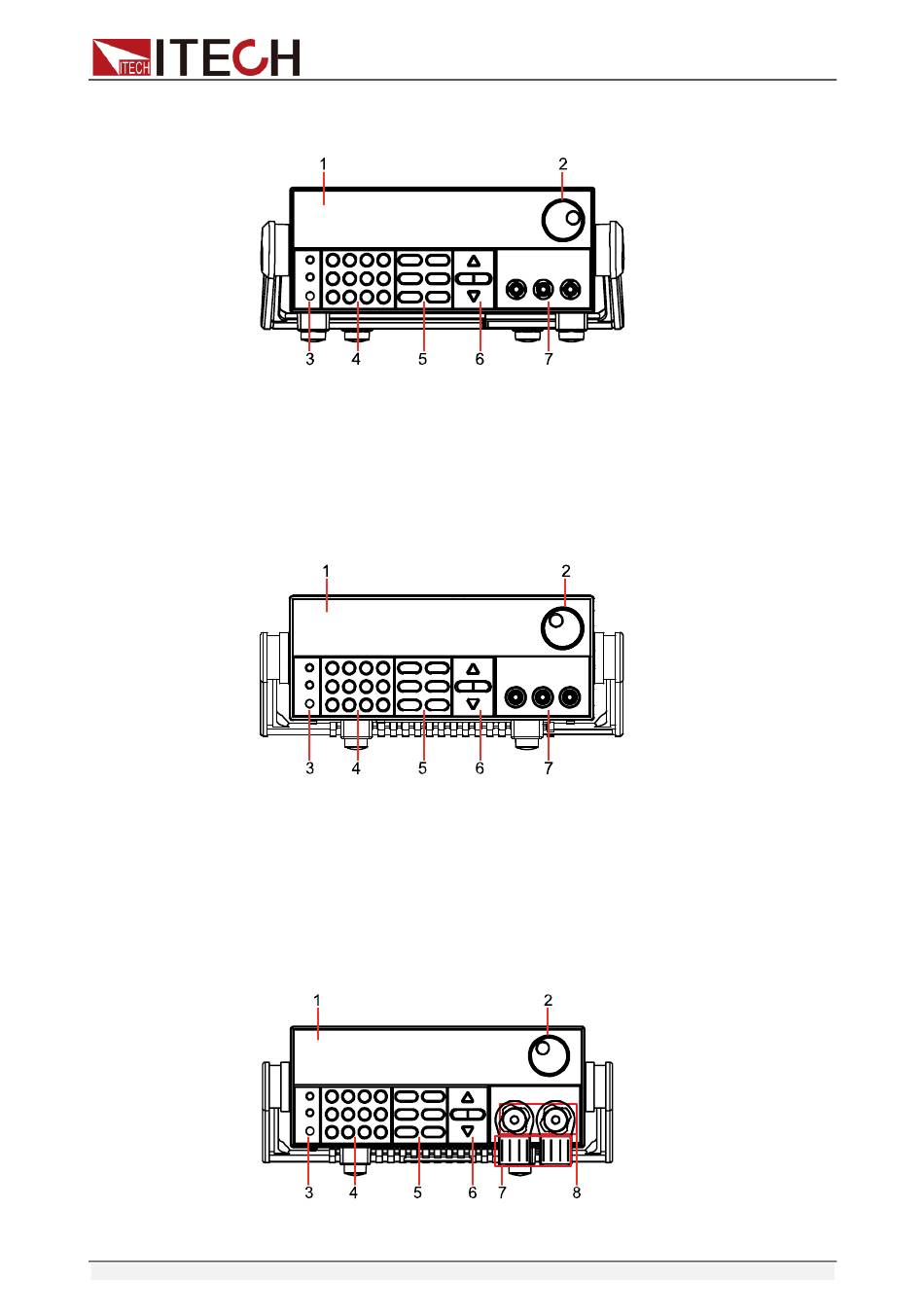

Front panel of IT6722/IT6722A
1. VFD screen
2. Adjusting knob
3. Compound key, the local switch key and power switch
4. Number keys and ESC
5. Function keys
6. UP,DOWN, LEFT and RIGHT key, to move cursor
7. Output terminals

Front panel of IT6723G/IT6723H/IT6724H
8. VFD screen
9. Adjusting knob
10. Compound key, the local switch key and power switch
11. Number keys and ESC
12. Function keys
13. UP,DOWN, LEFT and RIGHT key, to move cursor
14. Output terminals

Front panel of
IT6723/IT6723B/IT6723C/IT6724/IT6724B/IT6724C/IT6724G
1. VFD screen
2. Adjusting knob
