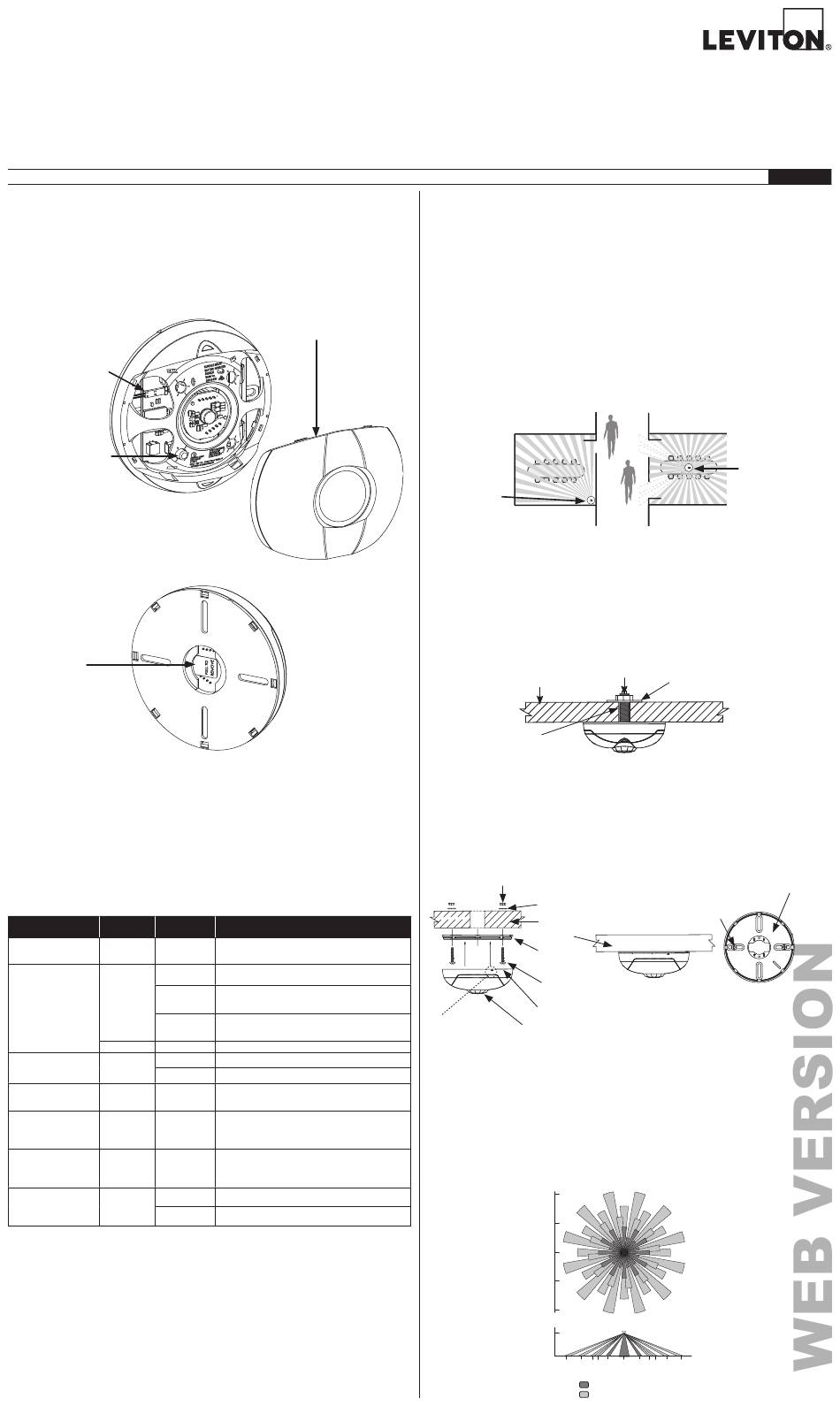

Wireless occupancy sensor with photocell

Advertisement

Quick Links

GreenConnect
TM
WARNINGS:
• TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER OR FUSE,
AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• TO AVOID INJURY OR DEATH, DO NOT RECHARGE, DISASSEMBLE OR INCINERATE
BATTERY, OR HEAT IT ABOVE 212°F (100°C).
• Replace battery with an approved Lithium 3.6V non-rechargeable battery - Jauch ER14505J-S,
EVE ER14505V, or SAFT LS14500. Use of another battery may present a risk of fire or explosion.
Product Description
The GreenConnect occupancy sensor with photocell is a ceiling-mount, battery-powered 2.4 Ghz
wireless communication device that automatically controls lights in response to motion or daylight
when part of a GreenConnect network. Sensor settings are configurable and saved in the dimming
or switching load control device.
Power the sensor using the included AA lithium battery, or connect a +24V DC power supply using
the SLI24 wiring harness, sold separately.
Purpose of Control: Energy Management of Equipment
Pollution Degree: 2
SLI24 Wiring Harness
Test button
Pull Tab
NOTE:
Remove before
programming
Compatible Devices
• GreenConnect wireless load controllers
• GreenConnect wireless wall switch or dimmer
• GreenConnect wireless controlled receptacle
• GreenMAX DRC Wireless Keypad
NOTES:
• Remove the battery pull tab to begin powering the sensor.
• Ensure the sensor is within 16 ft. (5 m.) of a compatible device.
• Install the sensor after it has been enrolled into a network.
LED Indicator Operation
The occupancy sensor uses LED light colors to indicate occupancy status and programming
status, as shown in the table below.
Button Action
LED Color Blink Rate
No action
Green
Pressed and held
Green
for 4 seconds
Red
No action
Blue
Pressed and held
Amber
for 5 to 9 seconds
Pressed and held for
Amber
10 to 14 seconds
Pressed and held
for more than
N/A
14 seconds
No action
Red
Operation Testing
1. Once joined to the network, configure the sensor to control loads in required locations.
2. Confirm occupancy detection (Red LED blinks), then cover the occupancy sensor to avoid
further detection. Verify that the sensor times out and load turns OFF.
3. Uncover the occupancy sensor to verify Auto-ON responds and energizes loads.
Field-of-View and Sensitivity Testing
• Perform an FOV (Field-of-View) walk test of the coverage area and confirm the Red LED blinks
and detects occupancy within the coverage area.
• Adjust the sensor's sensitivity, as needed, to increase or decrease the FOV.
Photocell Adjustment:
Enabled by selecting a value from the daylighting target menu.
Wireless Occupancy Sensor with Photocell
INSTALLATION INSTRUCTIONS
Front View
Lens Cover
Back View
Sensor Status
Searching for network (up to 60 seconds);
Rapid
Enrollment in process
1 Time
Enrolled, no communication from the network
2 Times
Enrollment incomplete
3 Times
Enrolled in active network
3 Times
Not enrolled in a network
1 Time
Power up on battery
2 Times
Power up on 24V DC source
Enter programming mode. LED begins
1 Time
flashing amber rapidly.
Leave network and reset to factory defaults.
2 Times
LED flashes red until complete.
N/A
N/A
1 Time
Occupancy detected
2 Times
Battery replacement needed
Cat. No. ZC015-BIW
Ratings: 12-24VDC, 2.4 GHz
CAUTIONS:
• Dispose of used battery promptly. DO NOT dispose of battery in normal household waste.
Please contact your local waste provider or recycling facility for proper disposal of used battery.
• For indoor applications only.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
Installation
Do not mount sensor until it has been enrolled in a network.
Equipment needed for installation:
• Ceiling tile stem, nut, and washer (included)
• Double-sided foam mounting tape (included)
• Screws (included) and wall anchors (not included)
Location
Select the location to mount the sensor and the appropriate method:
- Tile stem
- Screws
- Mounting tape
NOTES:
• Sensor location is important to ensure correct operation within each unique space.
• Correct location improves Auto-ON response and reduces the risk of false tripping from external
motion (example, hallway traffic).
• Do not locate sensor on a mounting surface within 6 feet of air ducts, moving machinery or
heat sources.
• When used for daylighting, the sensor must be installed in the daylighting zone.
Sensor location
optimized for best
entry detection
and reduced
nuisance tripping
from hallway.
Ceiling Tile Mount
1. Connect the included ceiling tile stem to the sensor's back cover and twist to secure. Refer to
Diagram A for details.
2. When sensor is in desired location, push the ceiling tile stem through the ceiling tile and install
the washer and nut above the ceiling tile to secure.
NOTE: The sensor's back cover and front body are keyed with arrows to lock and separate it
easily. To lock the sensor's body to the back cover, push back cover into front body and rotate
until the arrows do not align. To separate, rotate sensor until the arrows are aligned, and
pull apart.
Drop Ceiling
1 in. Thick Maximum
Surface Mount Using Screws
1. Remove the back cover of the sensor: Locate the alignment arrow on the edge of the back
cover and on the edge of the front body, then rotate the back cover and front body until the two
arrows line up, and pull apart. Refer to Diagram B.
2. Use the included screws, nuts, and washers, or screws with commercially available wall
anchors to install the back cover. If necessary, drill pilot holes.
3. Secure the sensor's body to the back cover: Push back cover into front body and rotate until the
arrows do not align.
Sensor Mounted to Wallboard or Drop Ceiling Using Screws
Nut
Key Lock
Arrow
Surface Mount Using Tape
1. Remove backing material and apply double-sided mounting tape to the sensor base.
2. Press and hold the sensor to your desired mounting surface for a few seconds.
NOTE: The sensor's back cover and front body are keyed with arrows to lock and separate it
easily. To lock the sensor's body to the back cover, push back cover into front body and rotate
until the arrows do not align. To separate, rotate sensor until the arrows are aligned, and
pull apart.
Passive Infrared Field-of-View
Diagram A
Sensor Mounted to Drop Ceiling with Tile Stem
Nut
Tile Stem
Mounting Option Diagram B
Washer
Wallboard
Ceiling
Back
Cover
Mounting
Back Cover
Screw
Shown Mounted
Sensor Base
to Ceiling with Screws
Front Cover
TOP VIEW
20
10
0
10
20
SIDE VIEW
8
0
20
15
11
9
5
0
5
9
11
Minor Motion, Infrared
Major Motion, Infrared
DI-000-ZC015-00C
ENGLISH
Sensor location
center of room
has potential
risk of nuisance
tripping from
hallway traffic.
Washer
Back Cover (Inside)
Mounting
Screw
15
20
