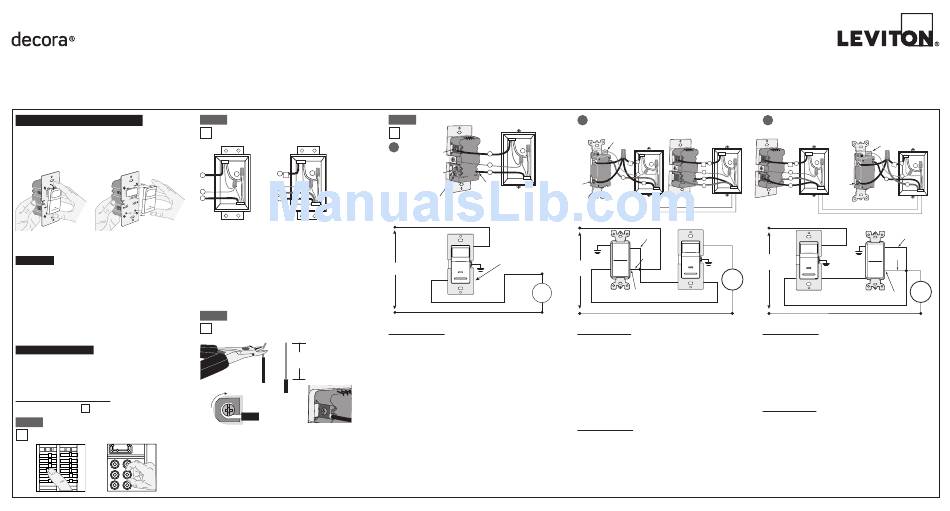

Leviton IPSD6 Installation Instructions

WARNINGS AND CAUTIONS:

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with electrical codes and regulations.
• To avoid overheating and possible damage to this device and other equipment, DO NOT install to control a receptacle, a motor, or a transformer-operated appliance
other than applicable specified lighting load: Incandescent, LED or CFL.
• When using in a 3-way application use one sensor and one standard 3-way switch. Cannot be used with another sensor, or in a 4-way application.

Tools needed to install your Device

Slotted/Phillips Screwdriver Electrical Tape Pliers
Pencil Cutters Ruler

Changing the color of your device:

Your device may include color options. To change color of the face
proceed as follows:
Push down tabs per Attach new face by inserting
diagram, one at a time and bottom hinge tabs, then pivot
rotate forward to release and snap the color kit to attach
FEATURES
• Cat. No. IPSD6 and IPVD6 have a sensing area of coverage of
30 ft. x 30 ft., and a sensing angle of 180 (see Sensing Area
O
Coverage figure on page 2).
• Adjustable light, time-delay and minimum level controls are
located on the front of the device (See Adjustment Setting
section on page 2 for details).
• Occupancy sensor can be converted to a vacancy sensor
(See adjustment settings on page 2).
• LED indicator is used to alert the user of the status of the device.
• Adjustable Time Delay setting for 30 seconds, 5 min, 15 min & 30 min.
• Adjustable setting for minimum light level.

LOCATION / MOUNTING

The device responds to temperature changes and care should be
taken when mounting the device. DO NOT mount directly above a
heat source, in a location where hot or cold drafts will blow directly
on the sensor, or where unintended motion (e.g., hallway traffic)
will be within sensor's field-of-view.

INSTALLING YOUR DEVICE

√
NOTE: Use check boxes
when Steps are completed.
WARNING:
Step 1 TO AVOID FIRE, SHOCK, OR
DEATH; TURN OFF POWER at circuit breaker or
fuse and test that power is off before wiring!
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
Single Pole and 3-Way Wide View Motion Activated Light Control & Dimmer
Ratings: 120VAC, 60Hz 600W Incandescent & 150W Dimmable LED & CFL

Identifying your wiring application

Step 2
(most common):
NOTE: If the wiring in the wall box does not resemble any
of these configurations, consult an electrician.
1 2
2
1
3
3
4
4 5
Single-Pole 3-Way
1. Line (Hot) 1. Line or Load (See important
2. Neutral instruction below)
3. Ground 2. Neutral
4. Load 3. Ground
4. First Traveler – note color
5. Second Traveler – note color
IMPORTANT: For 3-way applications, note that one of the screw
terminals from the old switch being removed will usually be a
different color (Black) or labeled Common. Tag that wire with
electrical tape and identify as the common (Line or Load) in both the
sensor wall box and remote wall box.

Preparing and connecting wires:

Step 3
This device can be wired using side wire terminal
screws. Choose appropriate wire stripping
specifications accordingly.
Strip Gage
5/8"
(measure bare wire
(1.6 cm)
here or use gage on
Cut
back of the sensor)
(if necessary)
Side Wire Connection Back Wire
Side wire terminals accept #14-12 Back wire openings use #14-12
AWG solid copper wire only. AWG solid copper wire only.
• Make sure that the ends of the wires from the wall box are straight (cut if
necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single Pole Application, go to Step 4A.
• For 3-Way Application with the sensor on the Load side, go to Step 4B.
• For 3-Way Application with the sensor on the Line side, go to Step 4C.
Cat. No. IPSD6, IPVD6 - INDOOR USE ONLY
INSTALLATION INSTRUCTIONS
WARNINGS AND CAUTIONS:
• If you are not sure about any part of these instructions, consult an electrician.
• Clean outer surface gently with damp cloth only. DO NOT use soaps or cleaning liquids.
• No user serviceable components. DO NOT attempt to service or repair.
• Use this device WITH COPPER OR COPPER CLAD WIRE ONLY.

Single Pole Wiring Application:

Step 4
Terminal
A BK
Screw marked
2
Black (BK)
1
3
4
Brass
Terminal Screw
Marked 3-Way
Terminal
Screw marked
Red (RD)
Terminal Label:
Use Terminal for 3-Way Applications Only.
For Single Pole Applications, Do Not Remove This Label.
Sensor
Hot (Black) Black
Use Terminal for 3-Way
Applications Only.
Green
For Single Pole Applications,
Ground
Do Not Remove This Label.
Line
120VAC, 60 Hz
Red
Black
3-Way
(Brass
Screw)
LOAD
White
Neutral (White)

WIRING SENSOR:

Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Load wall box wire to terminal screw marked "RD".
• Terminal screw marked "3-way" should have Red insulation label
affixed.
NOTE: If insulating label is not affixed to terminal screw marked
"3-way", use electrical tape to cover.
• Proceed to Step 5.

3-Way Wiring with Single Pole Switch Application:

When connecting the sensor for 3-way control, first choose which
wall switch location the sensor will be installed in. Next, identify
which electrical box has the line connection. If the line connection
is in the box where the standard 3-way switch is located, use wiring
diagram 4B. If the line connection is in the box where the sensor is
located, use wiring diagram 4C.
NOTE: A pair of short pigtail wires will be needed for connection to
the 3-way switch.
Sensor is located in electrical box with LOAD
B
connection:
3-Way Switch
Sensor
Ground
(Green Screw)
BK
1
2
1
2
Common 3
3
Terminal
4
5
(Black
5
Screw)
4
3-Way Switch
Hot (Black) Sensor
Pigtail
LINE/Black
Green
Pigtail
Ground
Green
Line Ground
120VAC
60 Hz
LOAD/ 3-Way/
Red Brass LOAD
Second Traveler
Common Terminal
(Black Screw)
First Traveler
Neutral (White)

WIRING SWITCH:

Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• One pigtail wire to the Black screw terminal marked "COM" and
one pigtail wire to the Brass terminal (same side of switch).
• Connect the following 4 wires using an appropriately sized
wire nut:
1. Common/Line wire (identified in step 2).
2. Second Traveler wire (note color from step 2).
3. Two pigtail wires from the 3-way switch.
• First Traveler wall box wire (note color from step 2) to
Brass screw terminal on the switch (opposite side from the
Black screw).
WIRING SENSOR:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Common/Load wall box wire identified when removing old
switch (step 2) to terminal screw marked "BK".
• First Traveler wall box wire (note color from step 2) to terminal
screw marked "3-way".
• Second Traveler wall box wire (note color from step 2) to
terminal screw marked "RD". This Traveler from the switch must
go to the terminal screw on the sensor marked "RD".
PK-93918-10-00-2B
Sensor is located in electrical box with LINE
C
connection:
Sensor
3-Way Switch
Ground
(Green Screw)
BK
2
1 1
2
3 Common
Terminal 3
4 5
(Black
Screw)
4
5
Sensor 3-Way Switch
Hot (Black)
Pigtail
LINE/Black
Green Green Pigtail
Line
Ground Ground
120VAC
60 Hz
3-Way/
LOAD/Red Brass
Second Traveler
LOAD
Common Terminal
(Black Screw)
First Traveler
Neutral (White)
WIRING SENSOR:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Common/Line wall box wire identified when removing old switch
(step 2) to terminal screw marked "BK".
• First Traveler wall box wire (note color from step 2) to terminal
screw marked "RD".
• Second Traveler wall box wire (note color from step 2) to
terminal screw marked "3-way".
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• One pigtail wire to the Black screw terminal marked "COM" and
a one pigtail wire to the brass terminal (same side of switch)
• Connect the following 4 wires using an appropriately sized
wire nut:
1. Common/Load wire (identified in step 2).
2. First Traveler wire (note color from step 2).
3. Two pigtail wires from the 3-Way switch.
• Second Traveler wall box wire (note color from step 2) to
Brass screw terminal on the switch (opposite side from the
Black screw).
