Leviton ZLS10-IDW Installation Instructions

WARNINGS:
• TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER at circuit breaker or fuse, and test that power is off before wiring!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• SAVE THESE INSTRUCTIONS.
DESCRIPTION

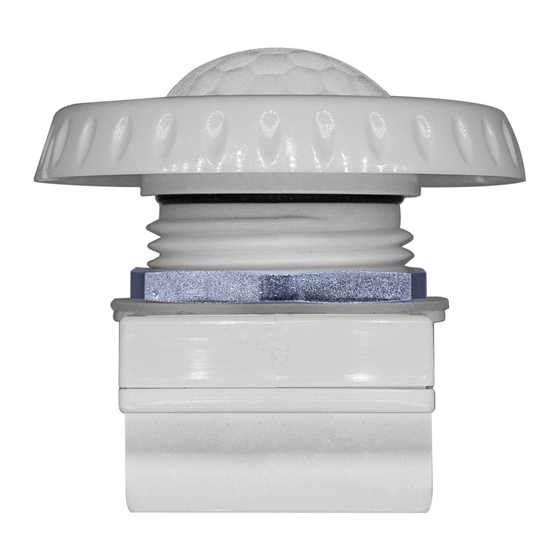

Leviton Cat. No. ZLS10-IDW is a line voltage occupancy and daylight harvesting sensor, designed for installation
®
directly into a lighting fixture. The sensor is rated for wet and cold locations and is suitable for indoor and outdoor
fixtures. The sensor is designed for individual dimming control of 0-10VDC dim-to-OFF LED drivers or electronic
ballasts, or switching of non-dimming ballasts.
ZLS10-IDW includes both a mid and high bay lens, designed to provide an adjustable coverage radius of up to 30 ft.,
when mounted at a maximum height of 40 ft. Configure the dimming profile and output settings of the sensor using
DIP switches or a Leviton Cat. No. ZLS0R-RC1 IR remote control.
The sensor uses Passive Infrared (PIR) detection technology to monitor for occupancy, and controls the fixture based
on user-selectable settings. PIR detection may be disabled using the remote control. The fixture will remain ON
regardless of occupancy, and if enabled, daylight harvesting will continue to operate.
An integrated photocell can be enabled, using the remote control to measure the available ambient light and adjust
the lighting output of the fixture between user-defined task and Stand-By lighting levels. When disabled, the fixture
will dim to the Stand-By level after the Hold Time has expired. If occupancy is not detected, the fixture will turn OFF at
the end of the Stand-By time.
The sensor may be installed into your fixture by the fixture manufacturer. When the sensor is pre-installed in a fixture,
refer to the fixture documentation for installation methods, means, and requirements.
NOTES:
• 0-10V dimming LED driver or ballast must support dim-to-OFF.
• If pre-installed into a fixture and you are replacing it, refer to fixture instructions for appropriate installation.
• Maximum mounting height of 40 ft.
INSTALLATION PRE-REQUISITES
NOTES:
• Configure DIP switch settings prior to installation into fixture.
• See sensor dimensions for mounting requirements.
FOR OPTIMAL PERFORMANCE:
The ZLS10-IDW sensor lens establishes dozens of zones of detection. The sensor is sensitive to the heat emitted by
the human body. In order to trigger the sensor, the source of heat must move from one zone of detection to another.
The device is most effective in sensing motion across its field-of-view, and less effective in sensing motion towards
or away from its field-of-view. Keep this in mind when selecting the installation location. Note that occupancy sensors
respond to rapid changes in temperature, so care should be taken not to mount the device near a climate control
source (e.g., radiators, air exchanges, and air conditioners). Hot or cold drafts will look like body motion to the device,
and will trigger it if the unit is mounted too close. It is recommended to mount the Occupancy Sensor at least 6 ft.
away from a climate control source. In addition, it is also recommended to NOT mount the Occupancy Sensor directly
under a large light source. Large wattage bulbs (greater than 100W incandescent) give off a lot of heat, and switching
the bulb causes a temperature change that can be detected by the device. Mount the Occupancy Sensor at least 6 ft.
away from large bulbs. If it necessary to mount the device closer, lower the wattage of the bulb directly overhead.
CLASS 2 WIRING:
For 0-10V Control Wiring: Connect the Violet wire to the + 0-10V line and the Pink wire to the 0-10V common, using
Class 1 or Class 2 wiring methods, as indicated in these instructions, ballast/fixture/driver instructions, or ballast/
fixture/driver label markings. Observe all requirements of any authority having jurisdiction, with respect
to wire type, sleeving, isolation methods, and the like.
INSTALLATION
WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER
at circuit breaker or fuse, and test that power is off before wiring!
1. Confirm factory default DIP switch settings and configure as required.
Factory Defaults to:
a. Sensitivity: 100%
b. Hold Time: 10 seconds
c. Daylight Sensor: 30 lux
d. Stand-By Level: 30%
e. Stand-By Time: 60 minutes
2. Position sensor correctly in fixture, align lens, and install by turning
counterclockwise, until tight.
3. Make wiring connections per wiring diagram.
4. After all connections have been made, ensure that all wire connectors
are firmly attached and that there is no exposed copper.
5. Restore power to the circuit and verify that locator LED light is ON.
3.5 in.
90 mm
0.5 in. 3.2 in.
12.70 mm 81.16 mm
1.7 in.
42.30 mm
0.7 in.
18.80 mm
Solo Sensor, Line Voltage, PIR, 0-10V Dimming Indoor/Outdoor Sensor
INSTALLATION INSTRUCTIONS
Dimensions
2.4 in.
60.98 mm
1.3 in.
32.9 mm
G1
Cat. No. ZLS10-IDW

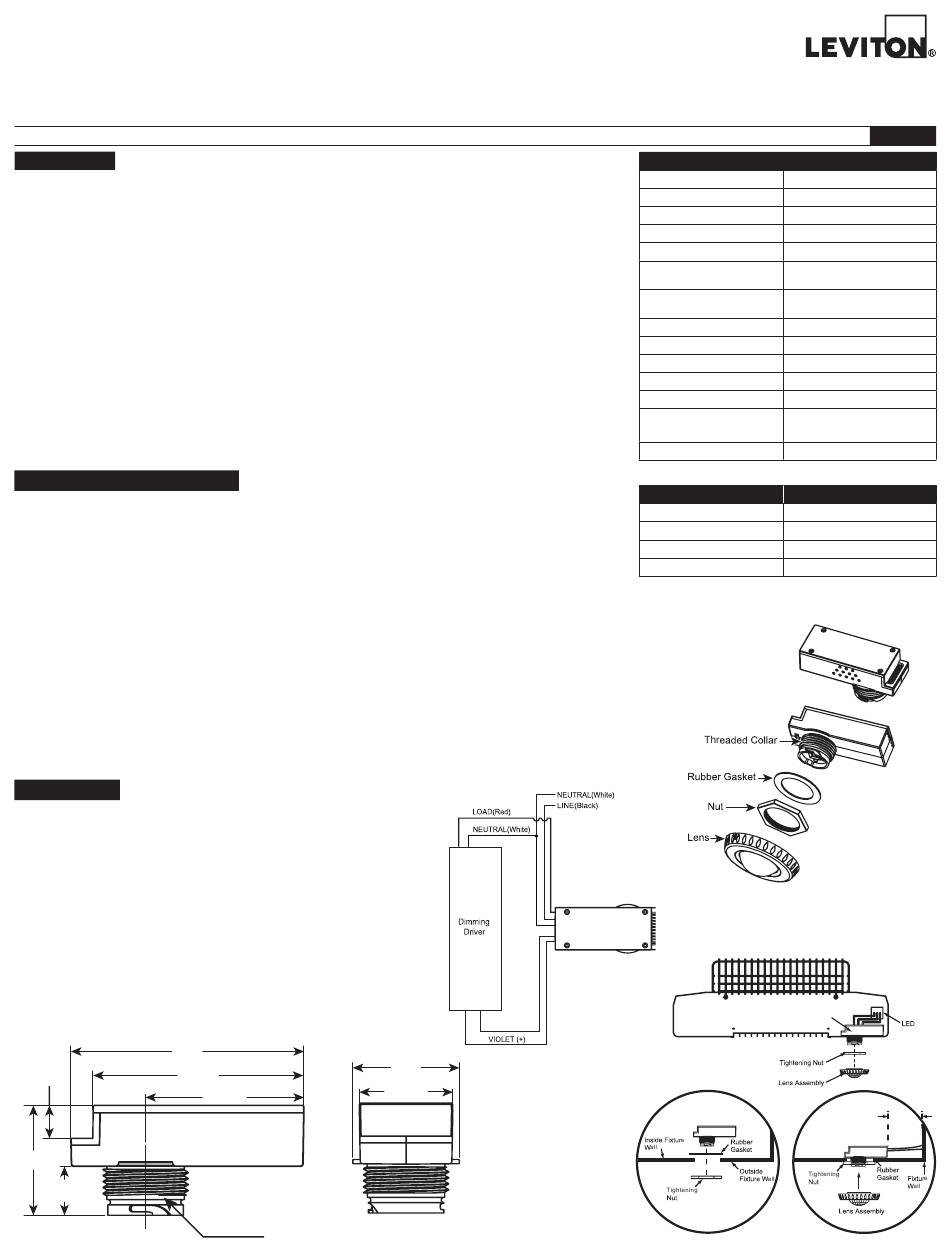

Wiring Diagram
PINK (-)
1.6 in.
41 mm
1.4 in.
35.97 mm
PK-A3384-10-00-5A
Specifications
Catalog Numbers ZLS10-IDW
120/277VAC, 50-/60Hz
Input Voltage / Frequency
Load Ratings:
• LED,CFL, Electronic Ballast @ 120V 600W
• LED,CFL, Electronic Ballast @ 277V 1385W
• Magnetic Ballast, Cold Cathode 660W
@ 120V
• Magnetic Ballast, Cold Cathode 1200W
@ 277V
• Resistive, Tungsten @ 120V 800W
• Resistive, Tungsten @ 277V 1200W
Operating Temperature -40˚F to 158˚F (-40˚C to 75˚C)
Storage Temperature -40˚F to 185˚F (-40˚C to 85˚C)
Impulse Voltage 4000V
Pollution Degree 2
Action Control Type Type 1
Symbol
~ VAC, Volts Alternating Current
--... VDC, Volts Direct Current
A A = Load in Amps
mA mA = Load in mA
Installation Diagram 1
Installation Diagram 2
ZLS10-IDW
ZLS10-IDW
AR2561
ENGLISH
Meaning
Driver
0.2 in. (minimum)
