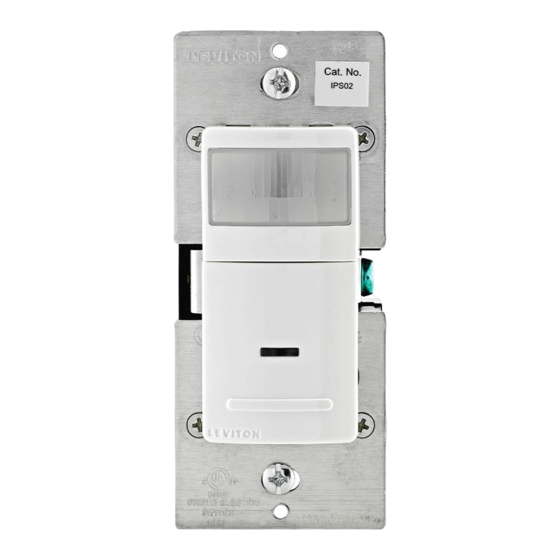

Leviton decora IPV02 Installation Instructions

Leviton decora IPV02 Installation Instructions

Single pole wide view motion activated light control

Advertisement

Quick Links

WARNINGS AND CAUTIONS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE
POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with electrical codes and regulations.
• To avoid overheating and possible damage to this device and other equipment, DO NOT install to control a receptacle.
• DO NOT control a load in excess of specified ratings or you may damage property, or cause injury or death.
Tools needed to install your Device
Slotted/Phillips Screwdriver
Electrical Tape
Pencil
Cutters
Changing the color of your device
Your device may include color options. To change color of the face
proceed as follows:
Push down tabs per
Attach new face by inserting
diagram, one at a time and
bottom hinge tabs, then pivot
rotate forward to release
and snap the color kit to attach
FEATURES
• Cat. No. IPS02 and IPV02 have a sensing area of coverage of 30 ft. x
30 ft., and a sensing angle of 180
(see Sensing Area Coverage figure
O
on page 2)
• Adjustable light and time-delay controls are located on the front of the
device. See adjustment setting section on page 2 for details.
• LED indicator is used to alert the user of the status of the device.
• Adjustable Time Delay setting for 30 seconds, 5 minutes,
15 minutes and 30 minutes.
• Occupancy sensors can be converted to vacancy sensors.
See Adjustment Section page 2.
LOCATION / MOUNTING
The device responds to temperature changes and care should be taken
when mounting the device. DO NOT mount directly above a heat source,
in a location where hot or cold drafts will blow directly on the sensor, or
where unintended motion (e.g., hallway traffic) will be within sensor's
field-of-view.
INSTALLING YOUR DEVICE
NOTE: Use check boxes
when Steps are completed.
Single Pole Wide View Motion Activated Light Control
Cat. No. IPS02, IPV02 - INDOOR USE ONLY
Ratings: 120VAC, 60Hz - 300W Incandescent - 150W LED, CFL - 200VA ELV, MLV - Fluorescent 2.5A - Resistive - 1/6th HP

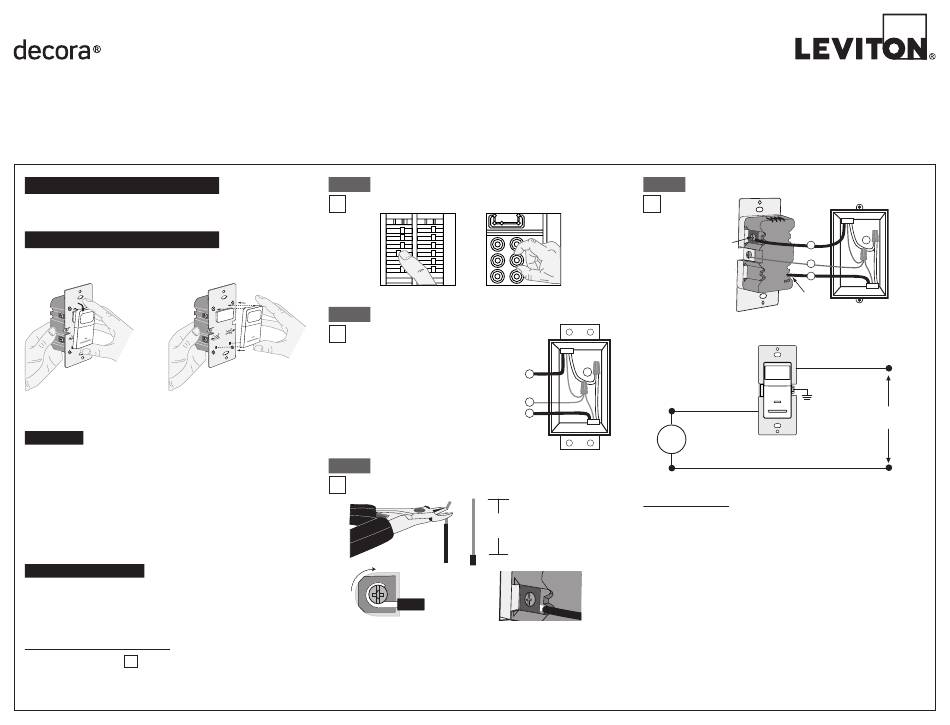

INSTALLATION INSTRUCTIONS
WARNING:
Step 1
TURN OFF POWER at circuit breaker or fuse and test
that power is off before wiring!
Pliers
Ruler
Identifying your wiring application
Step 2
(most common):
NOTE: If the wiring in the wall box
does not resemble any of these
configurations, consult an electrician.
Preparing and connecting wires:
Step 3
This device can be wired using side wire terminal screws.
Choose appropriate wire stripping specifications accordingly.
Side Wire Connection
Side wire terminals accept #14-12
AWG solid copper wire only.
• Make sure that the ends of the wires from the wall box are straight
(cut if necessary).
• Remove insulation from each wire in the wall box as shown.
WARNINGS AND CAUTIONS:
• If you are not sure about any part of these instructions, consult an electrician.
• Clean outer surface gently with damp cloth only. DO NOT use soaps or cleaning liquids.
• No user serviceable components. DO NOT attempt to service or repair.
• Use this device WITH COPPER OR COPPER CLAD WIRE ONLY.
TO AVOID FIRE, SHOCK, OR DEATH;
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
1
Single-Pole
1. Line (Hot)
3
2. Neutral
4
3. Ground
4. Load
Strip Gage
5/8"
(measure bare wire
(1.6 cm)
here or use gage on
Cut
back of the sensor)
(if necessary)
BK
Back Wire
Back wire openings use #14-12
AWG solid copper wire only.
Single Pole Wiring Application:
Step 4
Terminal
BK
Screw marked
Black (BK)
Sensor
2
Black
Red
LOAD
White
WIRING SENSOR:
Connect wires per WIRING DIAGRAM as follows:
NOTE: A ground connection is required to operate. Use the ground wire
in the electrical box for ground connection. If there is no ground wire,
make sure the electrical box is grounded and attach the ground wire to
the box with a screw.
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Load wall box wire to terminal screw marked "RD".
• Proceed to Step 5.
PK-93020-10-00-2A
2
1
3
4
Terminal
Screw marked
Red (RD)
Hot (Black)
Black
Green
Ground
Line
120VAC, 60 Hz
Neutral (White)
