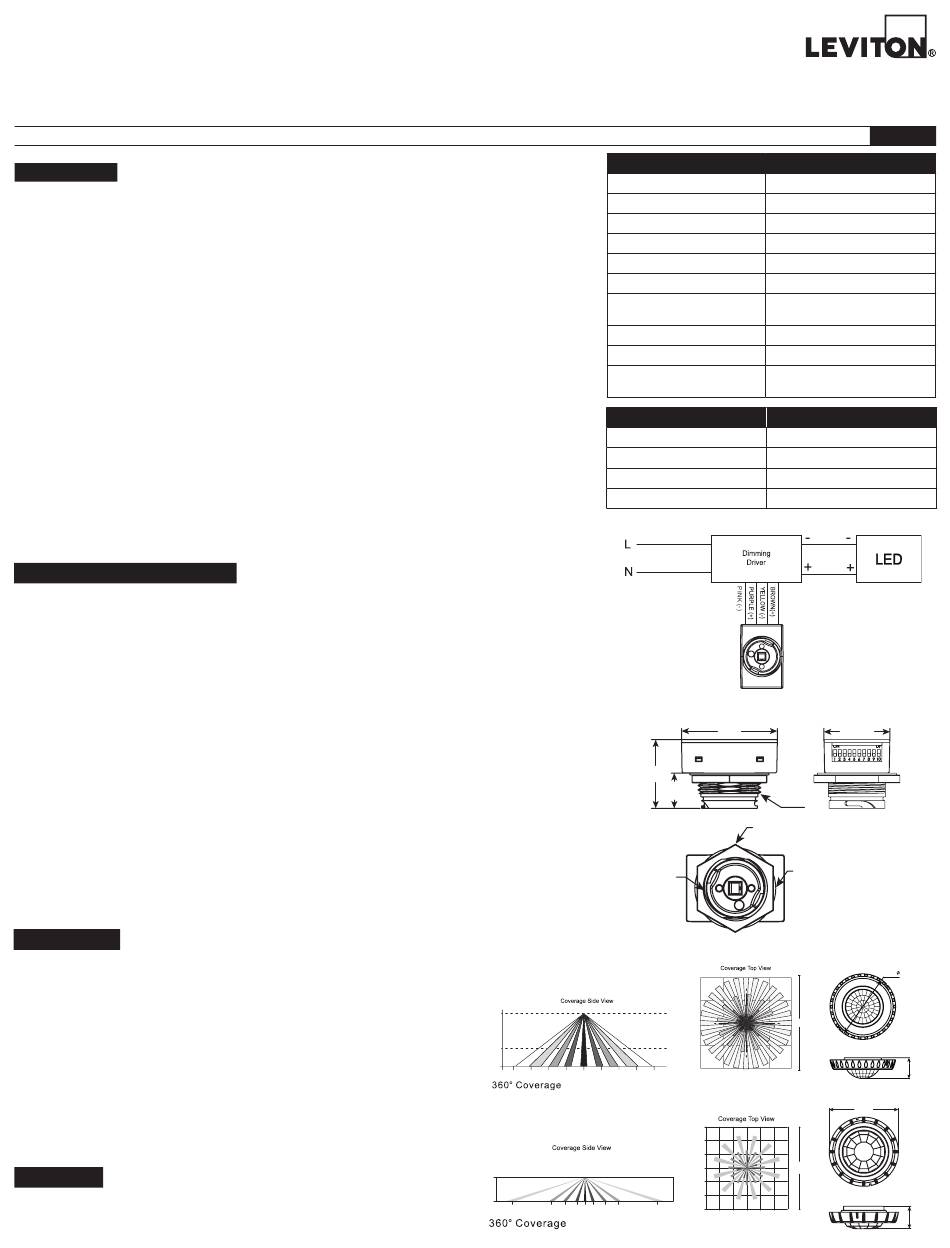

Leviton ZLS10-ILW Installation Instructions

WARNINGS:

• TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER at circuit breaker or fuse, and test that power is off before wiring!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• SAVE THESE INSTRUCTIONS.

DESCRIPTION

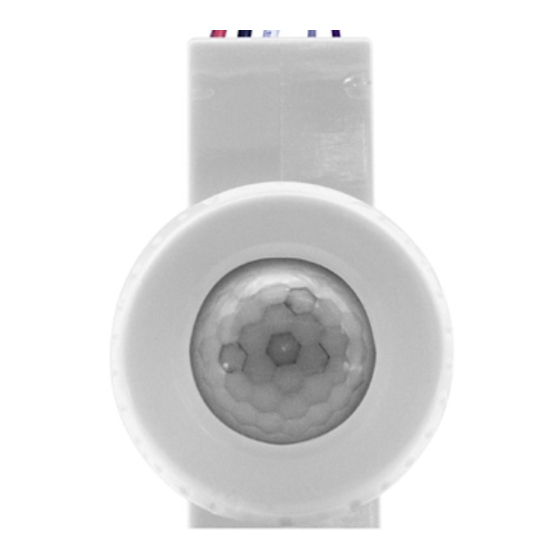

Leviton Cat. No. ZLS10-ILW is a low-voltage occupancy and daylight harvesting sensor, designed for
®
installation directly into a lighting fixture. The sensor is rated for wet and cold locations and is suitable for
indoor and outdoor fixtures. The sensor is designed for individual control of 0-10VDC dim-to-OFF LED
drivers, with an auxiliary power supply of 12-24VDC required to power the sensor.
ZLS10-ILW includes both a mid and high bay lens designed to provide an adjustable coverage radius
of up to 30 ft., when mounted at a maximum height of 40 ft. Configure the dimming profile and output
settings of the sensor using DIP switches, or a Leviton Cat. No. ZLS0R-RC1 IR remote control.
The sensor uses Passive Infrared (PIR) detection technology to monitor for occupancy, and controls the
fixture based on user-selectable settings. PIR detection may be disabled using the remote control. The
fixture will remain ON, regardless of occupancy, and if enabled, daylight harvesting will continue
to operate.
An integrated photocell can be enabled, using the remote control to measure the available ambient light,
and to adjust the lighting output of the fixture between the user-defined task and Stand-By lighting levels.
When disabled, the fixture will dim to the Stand-By level after the Hold Time has expired. If occupancy is
not detected, the fixture turns OFF at the end of the Stand-By time.
The sensor may be installed into your fixture by the fixture manufacturer. When the sensor is pre-installed
in a fixture, refer to the fixture documentation for installation methods, means, and requirements.
NOTES:
• Requires a 0-10V dim-to-OFF driver, with an AUX power supply.
• If pre-installed into a fixture, and you are replacing it, refer to fixture instructions for appropriate

installation.

• Maximum mounting height of 40 ft.

INSTALLATION PRE-REQUISITES

NOTES:
• Configure DIP switch settings prior to installation into fixture.
• See sensor dimensions for mounting requirements.
FOR OPTIMAL PERFORMANCE:
The ZLS10-ILW sensor lens establishes dozens of zones of detection. The sensor is sensitive to the
heat emitted by the human body. To trigger the sensor, the source of heat must move from one zone
of detection to another. The device is most effective in sensing motion across its field-of-view, and less
effective at sensing motion towards or away from its field-of-view. Keep this in mind when selecting the
installation location. Note that occupancy sensors respond to rapid changes in temperature, so care
should be taken not to mount the device near a climate control source (e.g., radiators, air exchanges,
and air conditioners). Hot or cold drafts will look like body motion to the device and will trigger it if the
unit is mounted too close. It is recommended to mount the Occupancy Sensor at least 6 ft. away from a
climate control source. In addition, it is also recommended to NOT mount the Occupancy Sensor directly
under a large light source. Large wattage bulbs (greater than 100W incandescent) give off a lot of heat,
and switching the bulb causes a temperature change that can be detected by the device. Mount the
Occupancy Sensor at least 6 ft. away from large bulbs. If it necessary to mount the device closer, lower
the wattage of the bulb directly overhead.
CLASS 2 WIRING:
For 0-10V Control Wiring: Connect the Violet wire to the + 0-10V line and the Pink wire to the 0-10V
common, using Class 1 or Class 2 wiring methods, as indicated in these instructions, ballast/fixture/driver
instructions, or ballast/fixture/driver label markings. Observe all requirements of any authority having
jurisdiction, with respect to wire type, sleeving, isolation methods, and the like.
INSTALLATION
WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER
at circuit breaker or fuse, and test that power is off before wiring!
1. Confirm factory default DIP switch settings and configure as required.
a. Sensitivity: 100%
b. Hold Time: 10 seconds
c. Daylight Sensor: 30 lux
d. Stand-By Level: 30%
e. Stand-By Time: 60 minutes
2. Position sensor correctly in fixture, align the lens, and install, by
turning counterclockwise until tight.
3. Make wiring connections per wiring diagram.
4. After all connections have been made, ensure that all wire connectors
are firmly attached and that there is no exposed copper.
5. Restore power to the circuit and verify that locator LED light is ON.

OPERATION

The ZLS10 Solo Sensor is designed to operate, per configuration settings
set by DIP switch, or using the optional IR remote, ZLS0R-RC1. See the
user manual for more information on ZLS0R-RC1 features and operation.
Solo Sensor, Low-Voltage, PIR, 0-10V Dimming Indoor/Outdoor Sensor
INSTALLATION INSTRUCTIONS
Cat. No. ZLS10-ILW
0 ft
27 ft
40 ft
30 ft 20 ft 12 ft 6 ft 0 ft
0 ft
8 ft
24 ft 11 ft 7 ft 3 ft 0 3 ft

Specifications

ZLS10-ILW
Catalog Numbers
12-24VDC
Input Voltage / Frequency
50mA max
Input Current
0-10V, 25mA sinking
Dim Control Output
-20°C to 75°C (-4°F – 167°F)
Operating Temperature
-20°C to 85°C (-4°F – 185°F)
Storage Temperature
800V (24V Circuit), 4000V (0-10V
Impulse Voltage
Circuit)
Pollution Degree 2
Type Action Control Type 1
Purpose of Control Operating Control, Energy
Management Equipment
Symbol
~ VAC, Volts Alternating Current
--... VDC, Volts Direct Current
A A = Load in Amps
mA mA = Load in mA
Wiring Diagram
Dimensions
2 in.
50 mm
1.4 in.
35.8 mm
0.7 in.
18.3 mm
1.77 in.
45 mm
1.29 in.
32.8 mm
Lens Coverage Patterns
30 ft
15 ft
0 ft
15 ft
30 ft
30 ft 15 ft 0 ft 15 ft
6 ft 12 ft 20 ft 30 ft
30ft
20ft
10ft
0ft
10ft
20ft
30ft
7 ft 11 ft 24 ft
30ft 20ft 10ft 0ft 10ft 20ft
PK-A3385-10-00-5A
AR2561
ENGLISH
Meaning
1.4 in.
34.50 mm
1.3 in.
32.9 mm
G1
1.63 in.
41.3 mm
2.4 in.
61 mm
60 ft
0.8 in.
19.2 mm
30 ft
2.32 in.
59 mm
60 ft
0.75 in.
30ft
19.1 mm
