Leviton DOS02 Quick Start Manual

Ratings: 120VAC, 60Hz 250 W Incandescent, 2 A Resistive, 150W LED and CFL, 250 VA ELV, 200VA MLV
WARNINGS
• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER AT CIRCUIT BREAKER
OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE, DO NOT install to
control a receptacle, or a load in excess of the specified rating.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
Features
• Cat. Nos. DOS02 and DVS02 have a sensing angle of 180° and a
sensing area of coverage of 30 x 30 ft. See coverage diagram for details.
• Adjustable ambient light (DOS02 only), time delay and area of coverage
controls. See adjustment setting section for details.
• Indicator light alerts the user of device status.
• Adjustable time delay setting for 1, 5, 10 and 20 minutes plus a test mode
with 5 seconds on. A Temporary Bypass mode that disables the Auto-on
feature is available only for DOS02.
Mounting Location
The device responds to temperature changes and care should be taken
•
when mounting the device.
• DO NOT mount directly above a heat source, in a location where hot or
cold drafts will blow directly on the sensor, or where unintended motion
(e.g., hallway traffic) will be within sensor's field-of-view.
You Will Need:
• Slotted/Phillips screwdriver
• Electrical tape
• Cutters
• Pliers
Installation
WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn off power at circuit breaker or
fuse and test that the power is off before wiring.

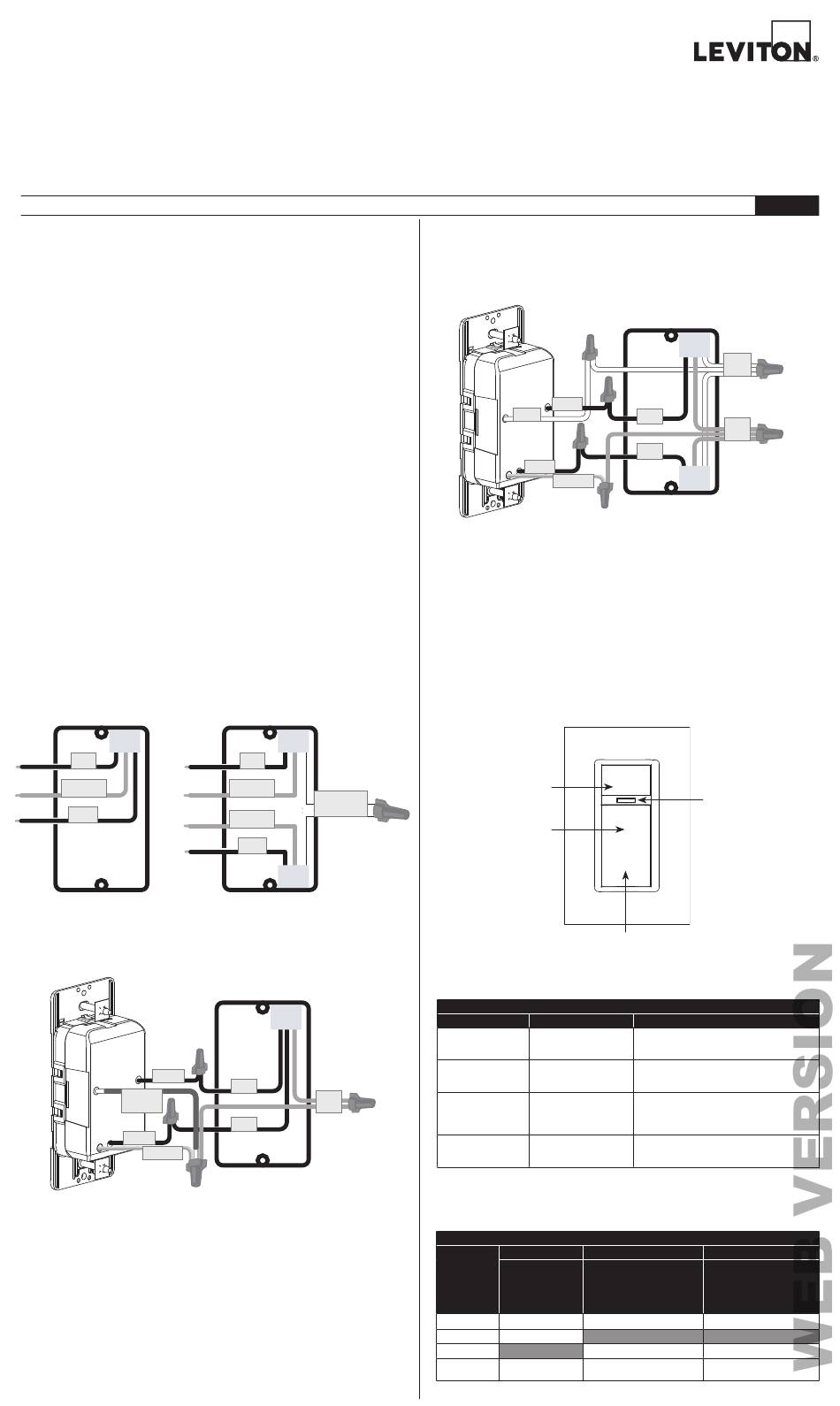

1. Identify your wires
(most common):
NOTE: Neutral wire (if present), or a Ground wire is required for operation. If
the wiring in the wall box does not resemble this configuration, consult an electrician.
LINE
GROUND
OR
LOAD
2a. Wire (when Neutral is NOT present).
Working on one connection at a time, connect wires as shown.
NOTE: This device is designed so the line and load wires can be wired
interchangeably.
LINE/LOAD
(Black)
GROUND
(Green
sleeved
wire)
LINE/LOAD
(Black)
GROUND
(Green/Yellow)
Single Pole Wide View Motion Activated Light Control
Cat. Nos. DOS02, DVS02 - INDOOR USE ONLY
LINE
GROUND
NEUTRAL
GROUND
LOAD
LINE
GROUND
LOAD
CAUTIONS
• To clean use a damp cloth with mild soap. DO NOT use disinfecting products,
including foggers, sprays or other types of atomized cleaning agents.
• No user serviceable components. DO NOT attempt to service or repair.
• Use this device WITH COPPER OR COPPER CLAD WIRE ONLY.
INSTALLATION
2b. Wire (when Neutral is present).
Remove the Green sleeve from the White wire. Working on one connection at a
time, connect wires as shown.
NOTE: This device is designed so the line and load wires can be wired
interchangeably.
NEUTRAL
(White)
LINE/LOAD
(Black)
3. Test and mount.
• Restore power. Wait 10-20 seconds for sensor to power up.
• DOS02: Lights will automatically turn ON with first motion seen after warm up
period, or when push pad is pressed.
• DVS02: Lights will turn ON when push pad is pressed.
NOTE: If lights do not turn ON, refer to the "What to do if..." section.
Turn off power at circuit breaker before completing the installation.
• Gently push wires into wall box. Screw light control to box.
• Install wallplate.
• Restore power.
Operation
RED indicator light
(Will flash any time
motion is detected)
TOP of button
NOTE: Press either
TOP or BOTTOM of
button to turn ON/OFF.
Programming
1. How to change the settings.
In order to...
Enter programming
mode
Change settings
(Timer, Sensitivity,
Ambient Light)
Change options
within a setting
Save and exit
settings
NOTE: If there is no activity for 30 seconds, the device will automatically exit
programming mode and setting changes will not be saved. Multiple settings can be
saved by entering the programming settings once, selecting desired settings and then
saving and exiting.
Setting Types and Options (defaults are in bold)
Setting 1
TIMER
(Duration of time
Option
for which load
Number
is ON since last
detected motion)
Option 1 1 minute
Option 2 5 minutes
Option 3 10 minutes
Option 4 20 minutes
LINE/LOAD
(Black)
LINE
LOAD
GROUND
(Green/Yellow)
BOTTOM of button
How to choose a setting and option
Do this... Indicator light will...
GREEN light will be solid ON for 5 seconds
Hold TOP and BOTTOM
NOTE: If nothing happens, device is already in
button for 5 seconds
programming mode
Single press TOP button RED light will blink to indicate setting selected
= advance to the next (Timer ->Sensitivity ->Ambient Light ->Timer)
setting (see table below) (Example: Setting 1 = 1 blink/sec)
Single press BOTTOM GREEN light will blink to indicate option selected
button = advance to the (Option 1 ->Option 2 ->Option 3 ->Option 1)
next option Examples: Option 1 = 1 blink/sec
(see table below) Option 2 = 2 blinks/sec
Hold either TOP or
BOTTOM button for GREEN light will be solid ON for 5 seconds
5 seconds
Setting 2
SENSITIVITY
(Sensitivity to motion –
adjusting the major and
minor detection range.)
Low (50% Range)
Medium
High
All settings to default
PK-A3345-10-00-2A
ENGLISH
NEUTRAL
GROUND
GREEN locator/
indicator light
(Turns ON when
load is OFF)
Setting 3
DOS02 only -
AMBIENT LIGHT
(If the room is brighter
than the setting selected,
the load will not turn ON.)
Low Light level
Medium Light level
High/Brightest light level
Disabled – turns ON for all
light levels
