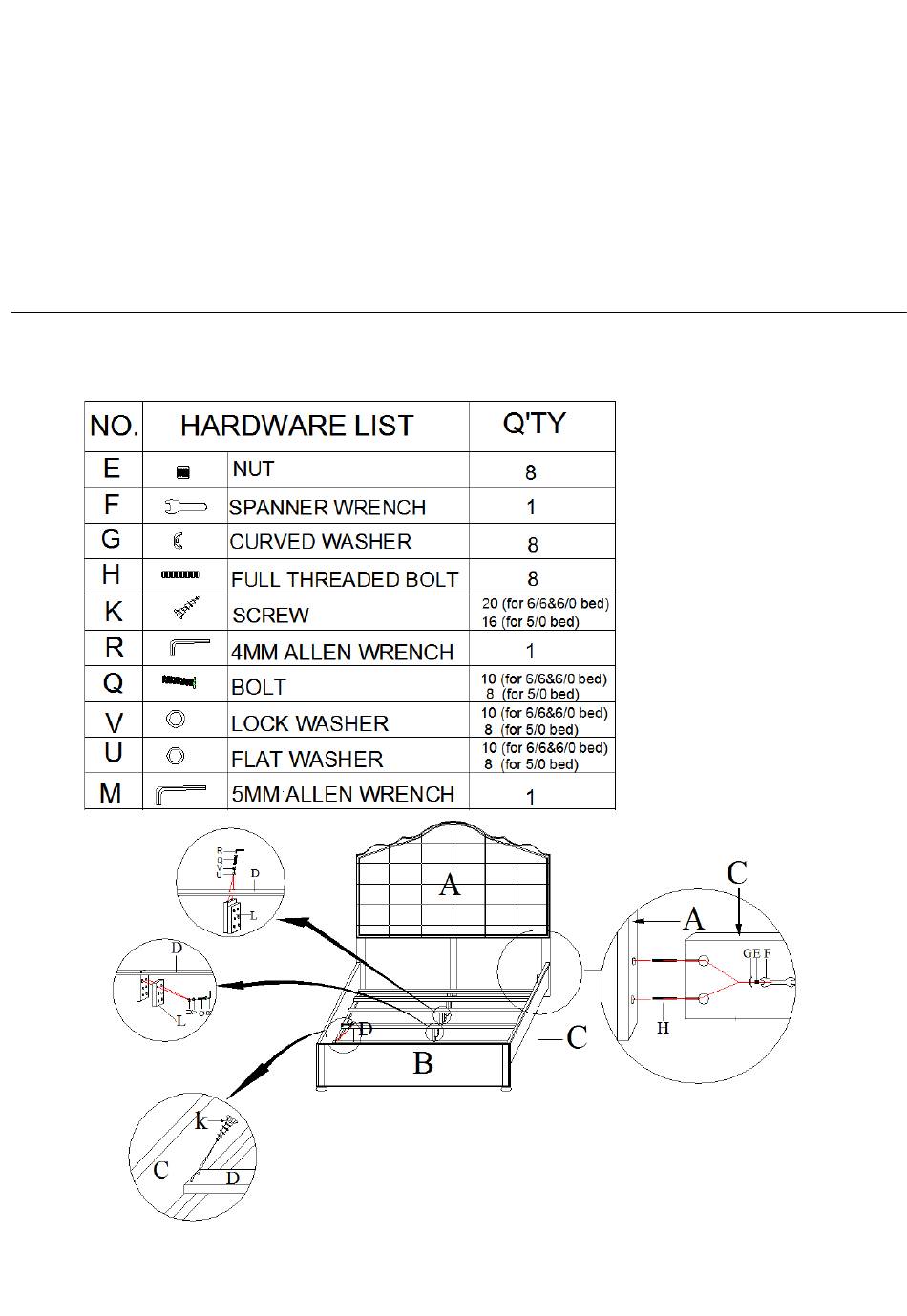

Caution: Please make sure you have all parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more persons.
Diagram 2
Diagram 5
ASSEMBLY INSTRUCTION

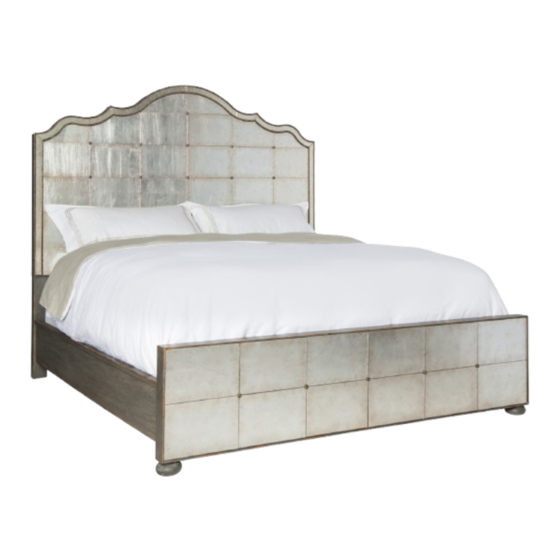

ITEM#1610-90151-EGLO 5/0 Mirrored Panel Headboard
1610-90152-EGLO 5/0 Mirrored Panel Footboard
1610-90167-EGLO 6/0-6/6 Mirrored Panel Headboard
1610-90168-EGLO 6/0-6/6 Mirrored Panel Footboard
1610-90153-EGLO 5/0-6/6 Rails
1610-90163-EGLO 6/0 Rails
Diagram 3
1/3
Diagram 1
Advertisement
Related Manuals for Hooker Furniture 1610-90151-EGLO
Summary of Contents for Hooker Furniture 1610-90151-EGLO
- Page 1 ASSEMBLY INSTRUCTION ITEM#1610-90151-EGLO 5/0 Mirrored Panel Headboard 1610-90152-EGLO 5/0 Mirrored Panel Footboard 1610-90167-EGLO 6/0-6/6 Mirrored Panel Headboard 1610-90168-EGLO 6/0-6/6 Mirrored Panel Footboard 1610-90153-EGLO 5/0-6/6 Rails 1610-90163-EGLO 6/0 Rails Caution: Please make sure you have all parts indicated below prior to assembly.
- Page 2 Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails. Assembly steps: 1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the end of side rails (C) to bolts (H) on posts using 2 curved washers (G)and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F).
- Page 3 Diagram 3 Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in diagram 4. Remove bolt (I), lock washer (W) and flat washer (J) from the cleat by turning the bolt (I) with allen wrench (M) in anti-clockwise direction.
