Hooker Furniture 1618-25350-DKW Assembly Instruction

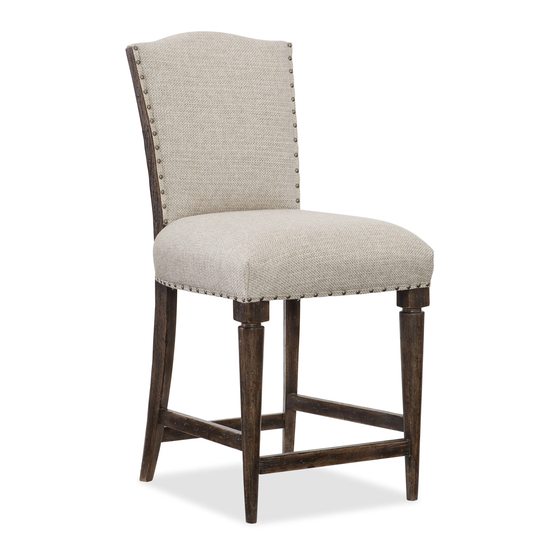

Item#:1618-25350-DKW Deconstructed Counter Stool

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

Please follow numbers on front legs and letters on chair during assembly.

1. Place chair back on a clean surface.

2. Tighten seat frame (I) to chair back(G) and assemble back legs to the corner blocks of seat frame(I)

by using 4 bolts (C), 4 lock washers (B) and 4 flat washers (A).

3. Assemble front left and right legs (F) according to the numbers to corner blocks of seat frame (I),

using 2 bolts (C), 2 lock washers (B) and 2 flat washers (A).

4. Assemble back legs to corner blocks of seat frame (I), using 2 bolts (F), 2 lock washers (B) and 2

flat washers (A)

5. Screw the rail (H) on two sides and footrest (J) on front to legs.

6. Tighten all bolts and screws, turn the chair upright.

7. Level the chair following the "chair leveling instruction" as below.

8. Make sure the chair is level and then tighten all bolts completely by using allen wrench (D).

ASSEMBLY INSTRUCTION

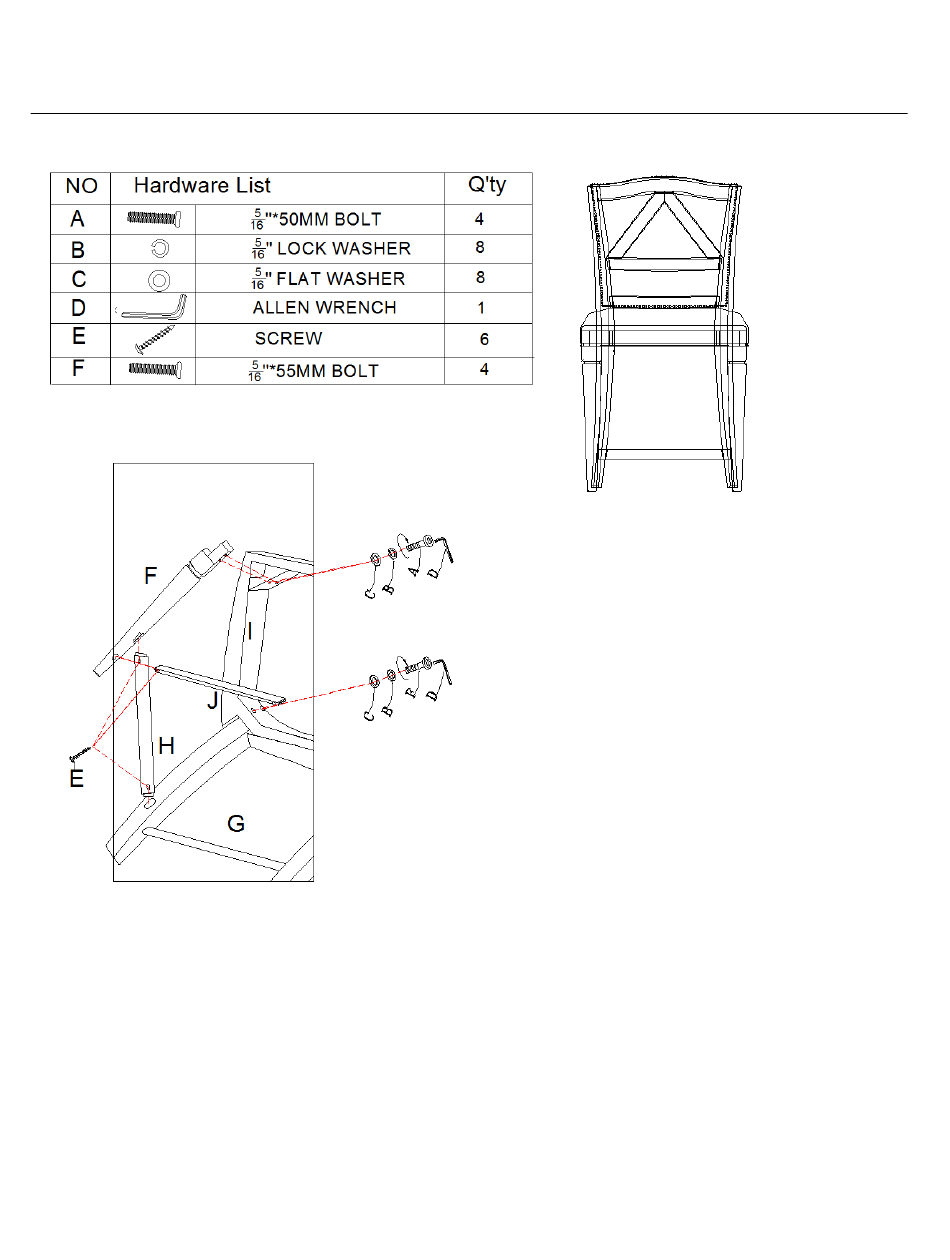

Diagram 1

1/2

Table of Contents

Do you have a question about the 1618-25350-DKW and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION Item#:1618-25350-DKW Deconstructed Counter Stool ** Please make sure you have all parts indicated below prior to assembly. Assembly Steps: Diagram 1 Please follow numbers on front legs and letters on chair during assembly. 1. Place chair back on a clean surface.
Page 2 PLEASE READ THESE INSTRUCTIONS PRIOR TO ASSEMBLING THE CHAIRS CHAIR LEVELING INSTRUCTION SUPPLEMENT Chair leveling procedures: To make the assembly process easy and efficient, please read the entire instruction sheet prior to assembling the chair. Make sure all hardware listed is included. To properly assemble the chair, none of the bolts should be fully tightened until all components are attached to the chair.
