Hooker Furniture Roslyn County 1618-75710-DKW-X2 Assembly Instruction

Deconstructed upholstered side chair

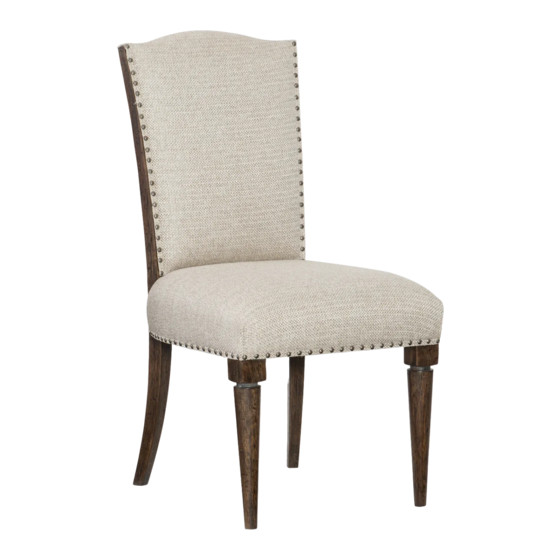

Item#:1618-75710-DKW Deconstructed Upholstered Side Chair

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other chair

during assembly.

1. Place chair back on a clean surface.

2. Insert front leg and back leg into corner block of seat frame (I) by using 2bolt (A), 2lock washer (B)

and 2flat washer (C) , Tighten all bolts by allen wrench (D) (see diagram1).

3. Attach the back rail on the seat frame back by by using 1bolt (A), 1lock washer (B) and 1flat

washer (C) , Tighten the bolts by allen wrench (D)

4. After all bolts are attached and hand tightened, turn the chair upright.

5. Level the chair following the "chair leveling instruction" as below.

6. Make sure the chair is level and then tighten all bolts completely by using allen wrench (D).

ASSEMBLY INSTRUCTION

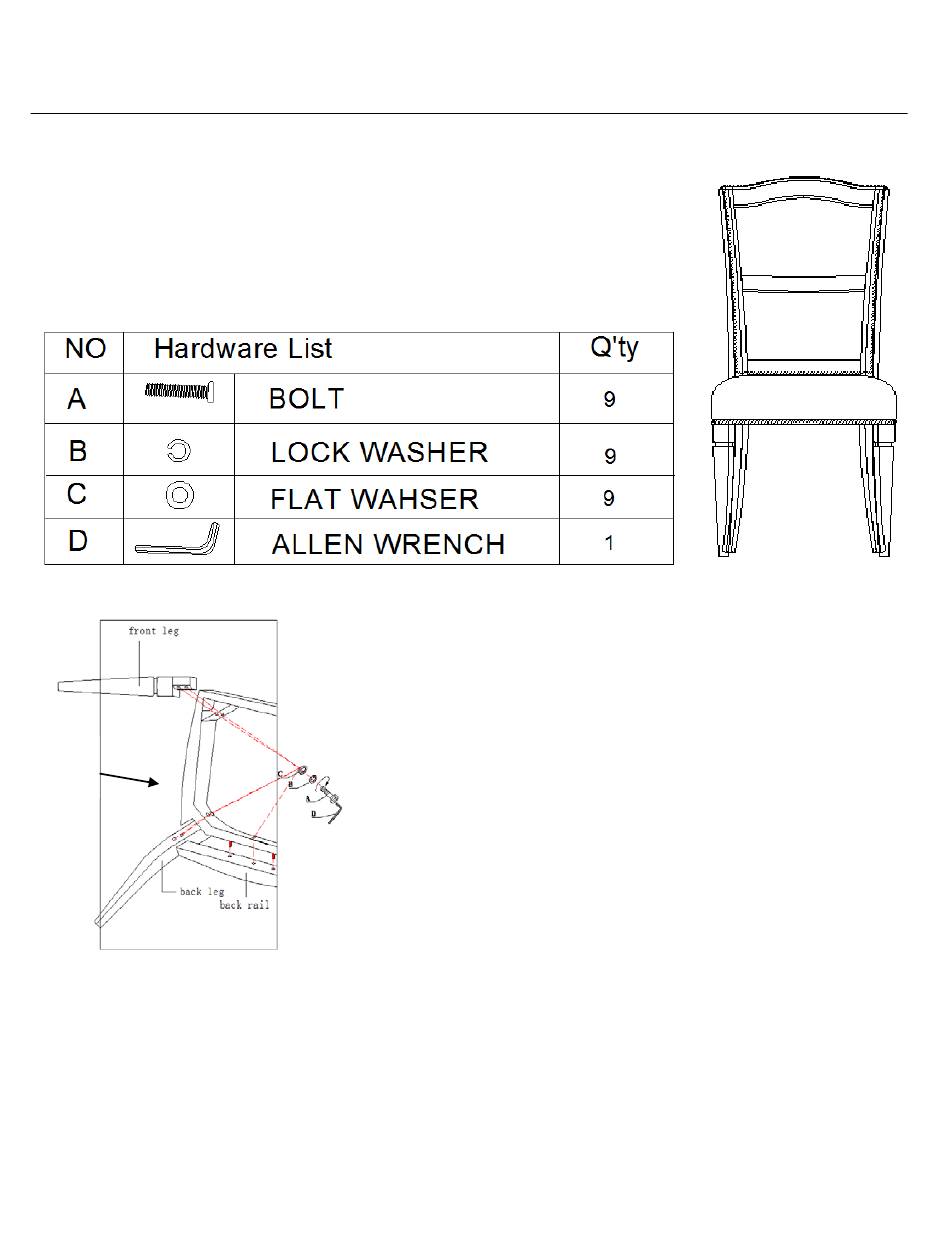

Diagram 1

1/2
