Hooker Furniture 1610-75510-WH Assembly Instruction

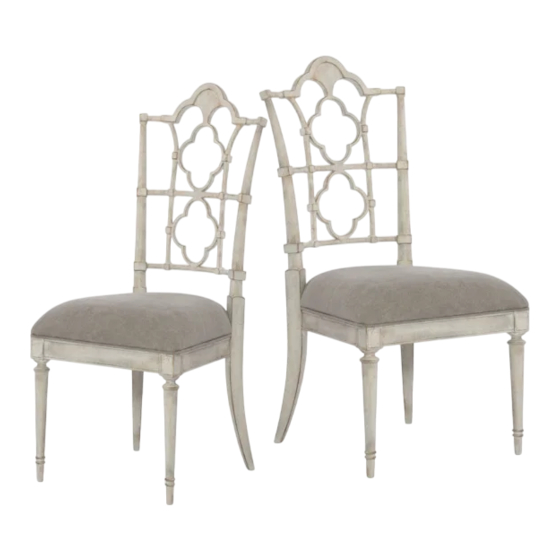

Side dining chair-2 per carton

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other chair

during assembly.

1. Place back frame (G) on a clean surface.

2. Tighten seat frame(I) to the back legs of frame(G) by using bolt(C), lock washer(B) and flat

washer(A) at the center location (see diagram 2). Attach seat frame (I) to back legs of frame (G)

using bolts (E), lock washers (B), flat washers (A). (See diagram 1)

3. Install front legs (F) onto seat frame (I) using bolts (E), lock washers (B), flat washers (A). Tighten

all bolts by hand. (See diagram 2)

4. After all bolts are attached and hand tightened, turn the chair upright.

5. Level the chair following the "chair leveling instruction" as below.

6. Make sure the chair is level and then tighten all bolts completely by using the allen wrench (D).

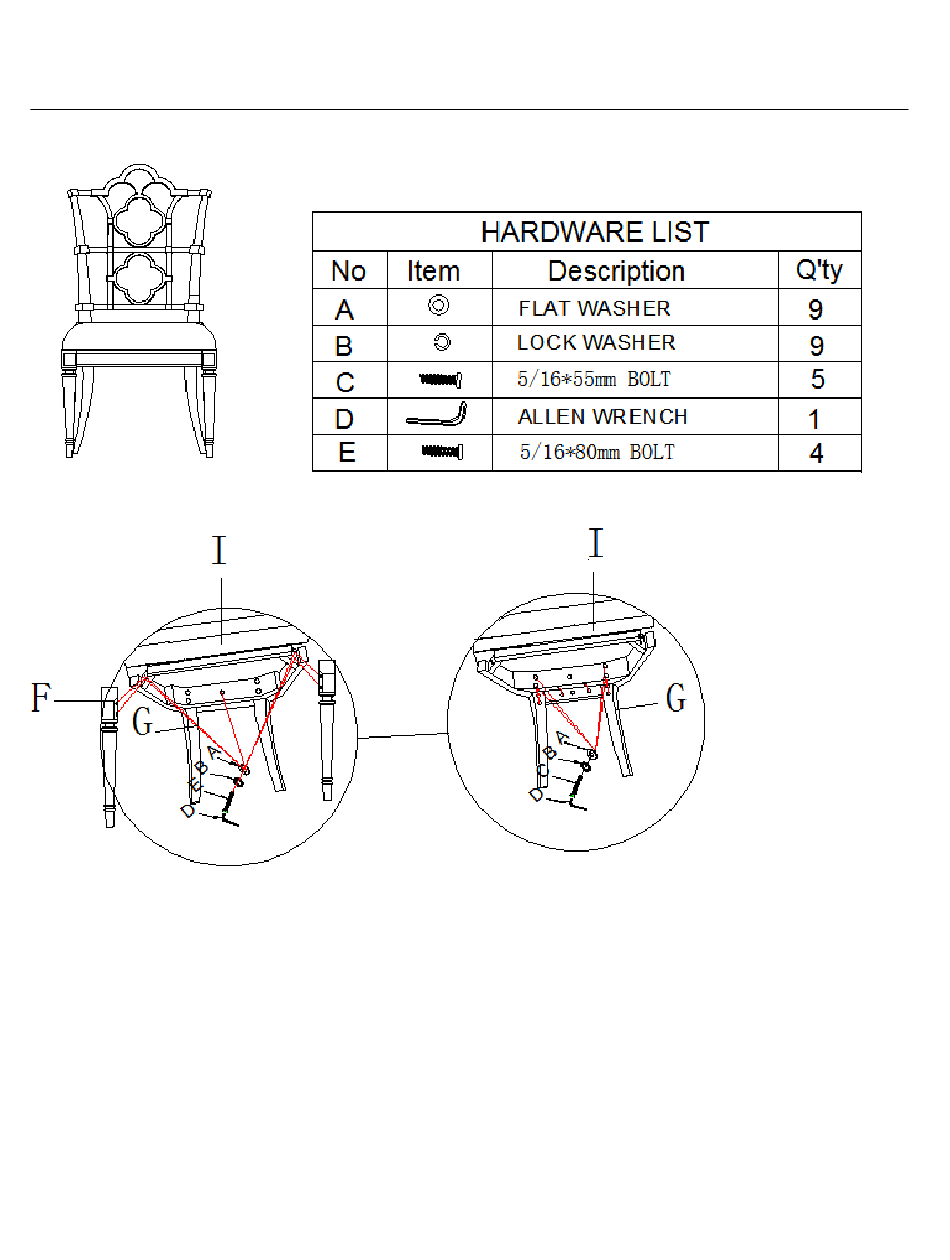

ASSEMBLY INSTRUCTION

Item#: 1610-75510-WH Side Dining Chair-2 per carton

DIAGRAM 2

DIAGRAM 1

1/2
