ITEM# 1618-90851- DKW 5/0 Upholstered Headboard
Caution: Please make sure you have all parts indicated below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more people.
Diagram 5
Diagram 2
Diagram 3
ASSEMBLY INSTRUCTION
1618-90852- DKW 5/0 Upholstered Footboard
1618-90853-DKW 5/0-6/6 Upholstered Panel Rails
Diagram 4
1/3
Diagram 1
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 1618-90853-DKW
Summary of Contents for Hooker Furniture 1618-90853-DKW
- Page 1 ITEM# 1618-90851- DKW 5/0 Upholstered Headboard 1618-90852- DKW 5/0 Upholstered Footboard 1618-90853-DKW 5/0-6/6 Upholstered Panel Rails Caution: Please make sure you have all parts indicated below prior to assembly. This bed is heavy and can best be assembled with the help of two or more people.

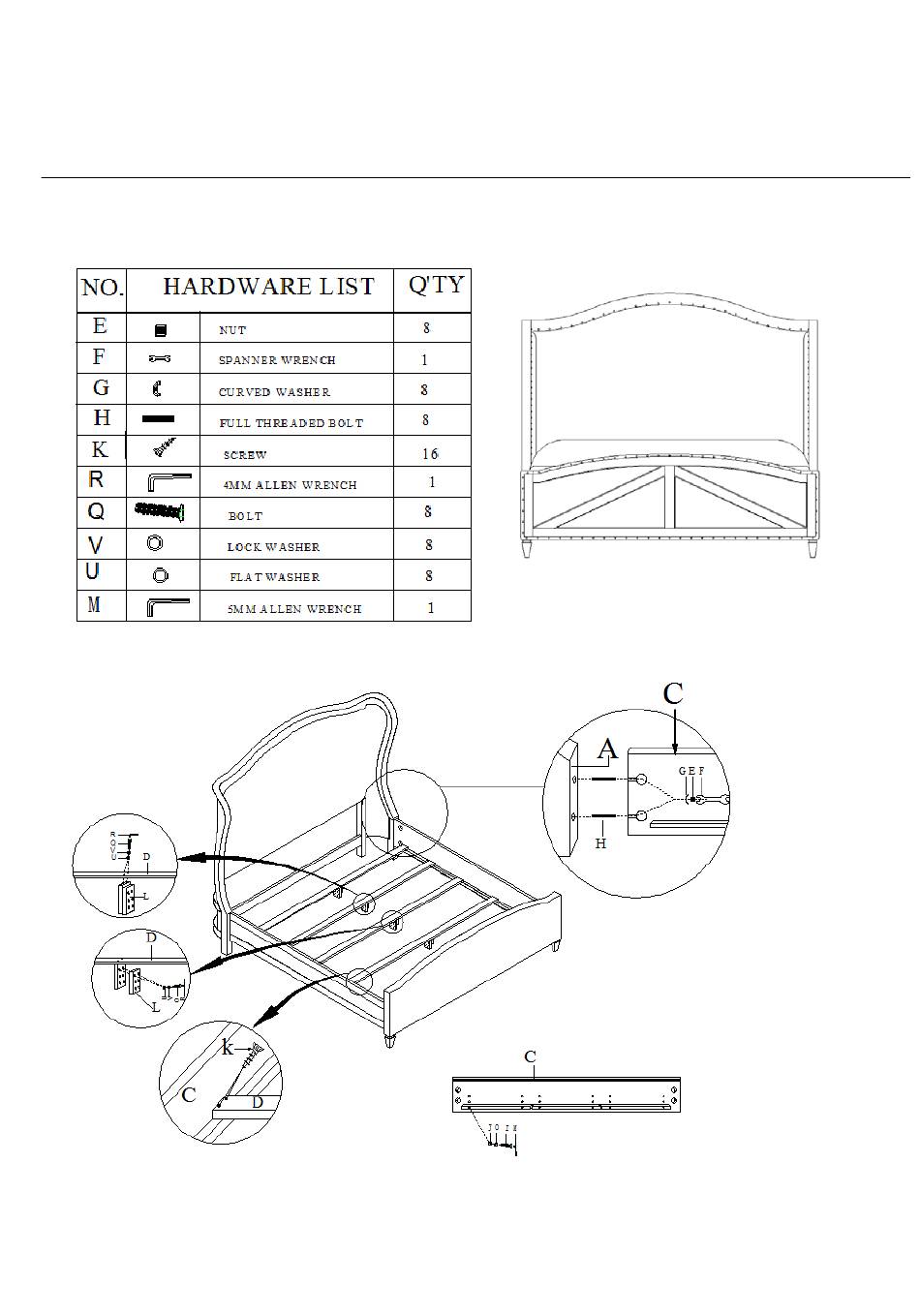

- Page 2 Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails. Assembly steps: 1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F).
- Page 3 Note: You can change the height of slats by adjusting the height of cleats on side rail as shown in diagram 4. Remove bolts (I), lock washers (O) and flat washers (J) from the cleats by turning the bolts (I) with allen wrench (M) in anti-clockwise direction. Adjust the cleats to a desired Position, and then secure lock washers, flat washers, bolts in clockwise direction by turning with allen wrench.
