Hooker Furniture 1610-75410-GRY Assembly Instruction

Upholstered back side chair

Item#:1610-75410-GRY Upholstered Back Side Chair

** Please make sure you have all parts indicated below prior to assembly.

Assembly Steps:

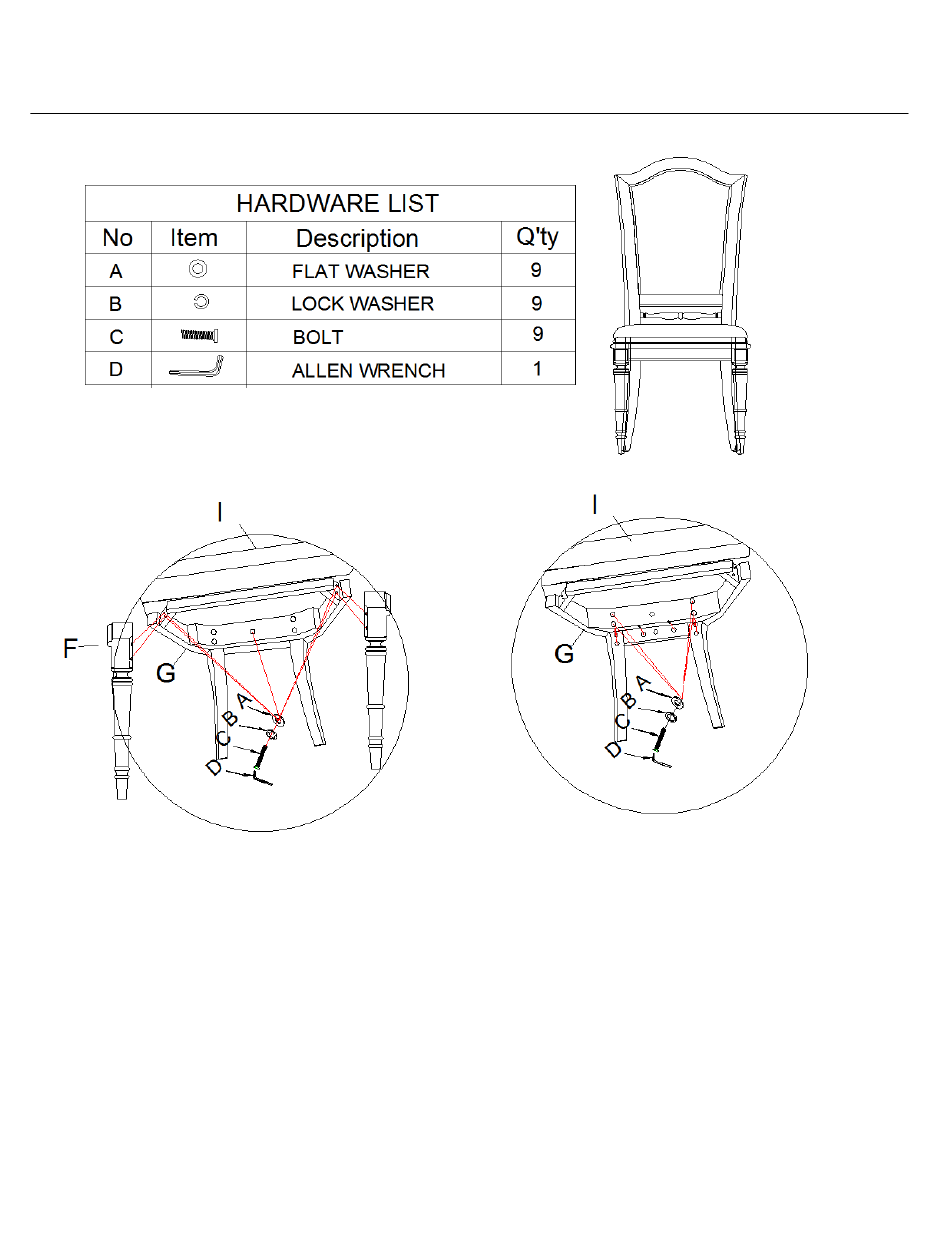

Diagram 2

There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other chair

during assembly.

1. Place chair back (G) on a clean surface.

2. Tighten seat frame (I) to chair back (G) by using bolt (C), lock washer (B) and flat washer (A) at the

center location. (see diagram 2) Then tighten seat frame (I) to chair back (G) by using bolts (C),

lock washers (B), flat washers (A). (See diagram 1)

3. Assemble front legs (F) with front corner blocks of seat frame (I), using 4 bolts (C), 4 lock washers

(B) and 4 flat washers (A). Tighten all bolts by hand. (See diagram 2)

4. After all bolts are attached and hand tightened, turn the chair upright.

5. Level the chair following the "chair leveling instruction" as below.

6. Make sure the chair is level and then tighten all bolts completely by using allen wrench (D).

ASSEMBLY INSTRUCTION

Diagram 1

1/2
