Hooker Furniture 1618-75201-DKW Assembly Instruction

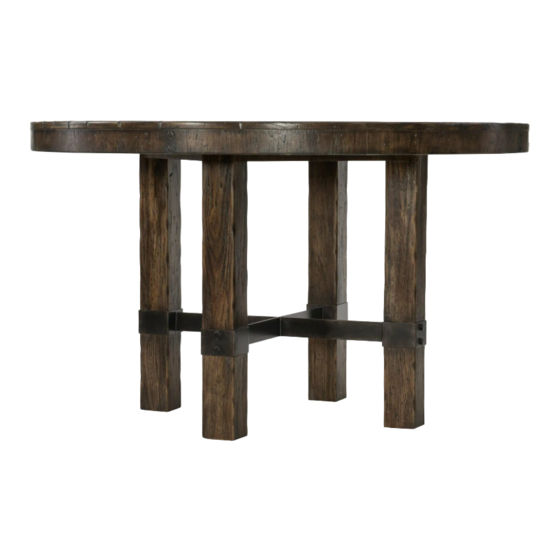

60in round dining table

** Please make sure you have all parts indicated below prior to assembly.

This table is heavy and can best be assembled with the help of two or more persons.

Diagram 1

Diagram1

ASSEMBLY INSTRUCTION

Item#: 1618-75201-DKW 60in Round Dining Table

Diagram4

Diagram2

Diagram 3

This table can be assembled to 30" and 36" high.

Assembly steps for 30" H square dining table:

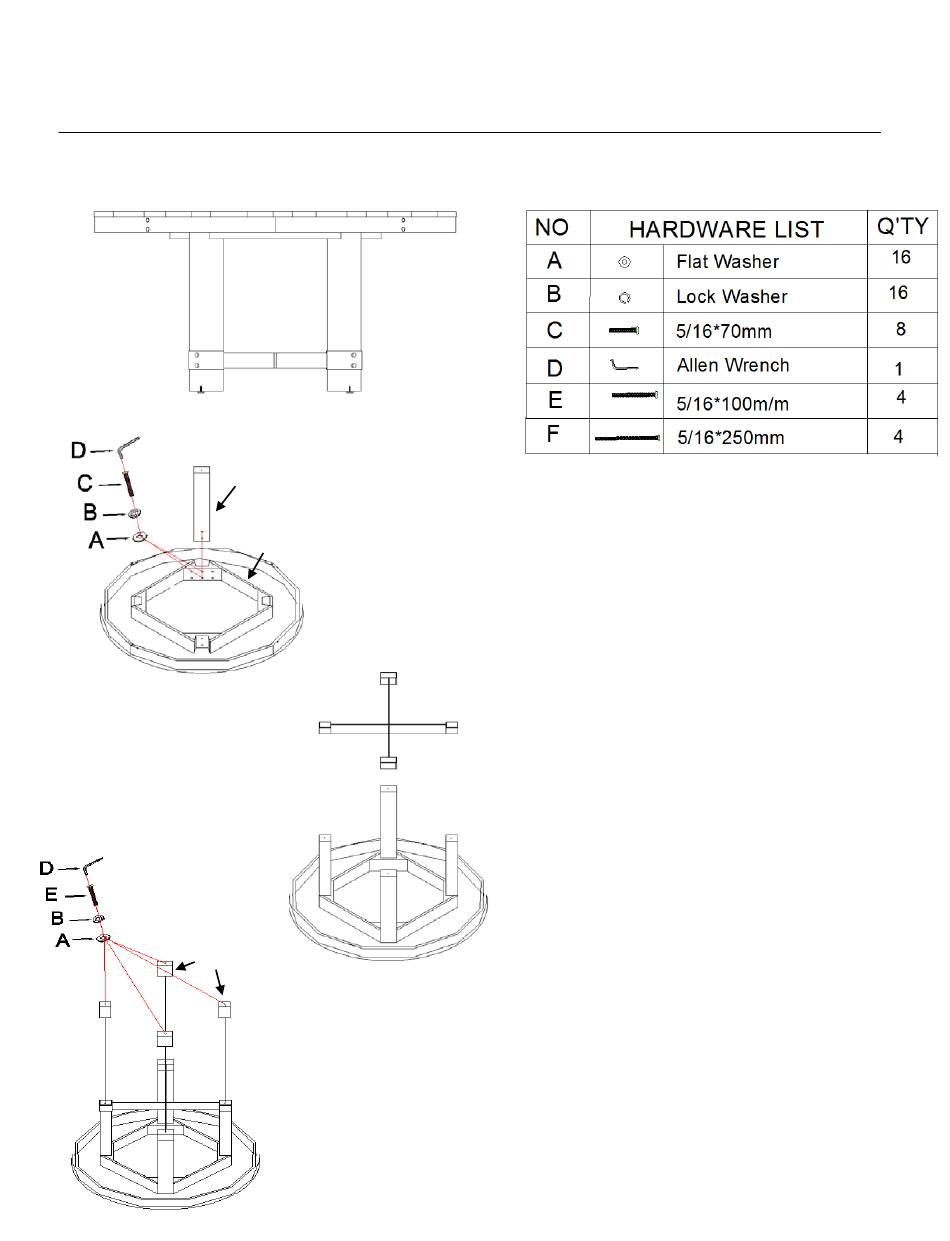

1. Turn the table top (G ) upside down. Align and

attach legs(F) to base frames (H) by inserting

bolts (C) lock washers (B) flat washers (A) and

tighten with allen wrench (D) (See diagram 1)

2. Align and attach stretcher (L) onto base legs.

(See diagram 2)

3. Place the wood parts (J) onto metal cube of

the stretcher by inserting bolts (E) lock

washers (B) flat washers (A) and tighten with

allen wrench（D) .

4. Turn the table upright. (See diagram 4)

(See diagram 3)

Table of Contents

Need help?

Do you have a question about the 1618-75201-DKW and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION Item#: 1618-75201-DKW 60in Round Dining Table ** Please make sure you have all parts indicated below prior to assembly. This table is heavy and can best be assembled with the help of two or more persons. Diagram 1 Diagram4 This table can be assembled to 30”...
Page 2 Assembly steps for 36” H square dining table. 1. Follow the steps 1 & 2 of above listed. 2. Place the wood parts (K) onto metal cube of the stretcher by inserting bolts (F) lock washers (B) flat washers (A) and tighten with allen wrench （D) (See diagram 5) Diagram 6 3.
