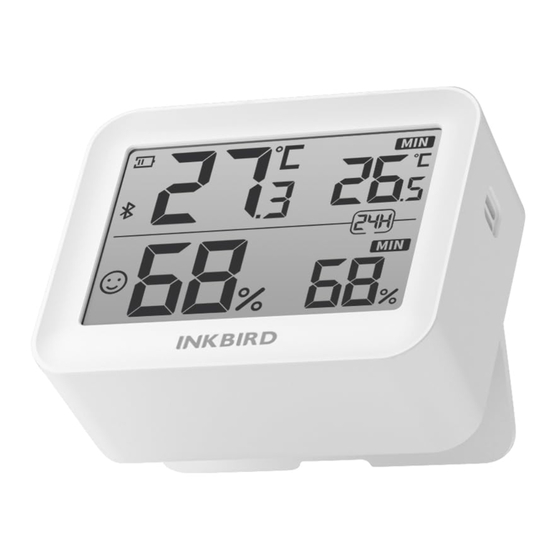

- Page 1 ITH-13-B Smart Thermo-Hygrometer...
- Page 2 INKBIRD" Small TV " Smart Bluetooth professional temperature and humidity logger...
- Page 3 Warm tips To quickly jump to a specific chapter page, click on the relevant text on the contents page. You can also use the thumbnail or document outline in the top left corner to quickly find a specific page.
- Page 4 CONTENTS .......... Overview ......... Preparation Before Using Precautions ....Troubleshooting ....Product Introduction ........Button Description FCC Requirement ......IC Warning APP Installation & Connection ....Customer Service ......APP Function...
- Page 5 Please keep this manual properly for reference. You can also scan the QR code to visit our official website for product usage videos. For any usage issues, please feel free to contact us at support@inkbird.com.
- Page 6 Overview This temperature and humidity detector looks like a "small TV" and is equipped with Swiss Sensirion sensors to accurately monitor temperature and humidity, ensuring an ideal storage environment for valuable items (such as art, wine). Lightweight body suitable for all types of confined spaces;...
- Page 7 INKBIRD APP, according to the item personalized settings, view long-term data, but also can bind the gateway to achieve remote monitoring, real-time alarm, to provide you with a detailed protection scheme. "Small TV" for your treasures escort, fully show the charm of intelligent storage.
- Page 9 Product Introduction...
- Page 10 Battery level--The battery icon indicates battery life and the icon flashes when the battery is low. Bluetooth--The Bluetooth icon is lit when the device has established a Bluetooth connection with your phone; Temperature--Real-time ambient temperature Comfort-Comfort level indicator Humidity--Real-time relative humidity *NOTE: This comfort level is recommended by the EPA and can be changed if required via the APP settings page.
- Page 11 Comfort 30%＜Humidity＜60% Humidity 30% 60% Humidity 68℉＜Temperature＜78.8℉ When the humidity is 30~60%, and the temperature exceeds 20~26℃ (68~78.8℉), it's not in any state. Max/Min humidity value--Humidity max/min value: cyclic display of the minimum and maximum humidity; Max/Min recording period Max/Min temperature value--Temperature max/min value: cycle to show the minimum and maximum temperature;...
- Page 12 Button Description ① Press once to change the temp -erature unit; ② Long press to delete all max/min records within all recording periods.
- Page 13 APP Installation & Connection Search the INKBIRD App from Google Play or App Store to get it for free, or you can scan the QR code to download it directly.
- Page 14 ③ The device supports a 2.4GHz Wi-Fi router only（with IBS-M2S BLE WiFi gateway）. ④ APP Location Permission Requirement: We need to obtain your location information to discover and add nearby devices. INKBIRD promises to keep your location...
- Page 15 Your privacy is very important to us. We will abide by relevant laws and regulations and take reasonable security measures to protect your information security 1).Registration Step1: Registering an account is necessary before using the INKBIRD app for the first time. Step2: Open the app, select your Country/Region, and a...
- Page 16 Step3: Enter the verification code to confirm your identity, and the registration is complete. 2)How to Connect Open the INKBIRD app and Click “+” on the top right corner to add a device. Then, follow the app instructions to complete the Bluetooth connection. Make sure the device is placed as close as possible to the smartphone and router while connecting.
- Page 17 APP Function The INKBIRD app allows you to view temperature, humidity, VPD and dew point data on your smartphone, use the interactive historical data graph, export data, calibrate temperature and humidity, set comfort levels, set alarms, view alarm records, connect the gateway, upgrade firmware...
- Page 18 Connect the Gateway For more intelligent remote monitoring and alarm notifications, the unit can be connected to a WiFi gateway (IBS-M2S BLE). When you get a IBS-M2S BLE WiFi gateway, you can select 'Connect the gateway' from the 'Set' page of the app and follow the instructions to complete the gateway connection.
- Page 19 RESET...
- Page 20 Precautions 1)Please do not disassemble the product if you are not a professional. 2)Be sure that the sensor is not covered with dust as dust may lead to inaccurate measurements. 3)Do not use alcohol to clean the sensor. 4)This product is not waterproof. Do not immerse its air outlet into water.
- Page 21 (-4℉ to 140℉) and is not suitable for use in any environment outside this measurement range. 6)This product measures humidity from 0%RH to 99%RH. Please keep it away from high-humidity environments. Troubleshooting Fault Possible Solution Phenomenon Reason Screen shows low The batteries are Replace the batteries.
- Page 22 Fault Possible Solution Phenomenon Reason The batteries were No screen display Reinstall the batteries installed upside down. The temperature is Place the product in an Screen shows” ” higher than 60℃/140℉. environment within a normal temperature The temperature is lower measurement range.
- Page 23 Fault Possible Solution Phenomenon Reason The air outlet is blocked. Remove the blockage. Incorrect temperature Leave the product in a Water has seeped into and humidity dry, well-ventilated place the air outlet of the unit. or wipe it dry with a piece of kitchen paper.
- Page 24 Fault Possible Solution Phenomenon Reason Please keep your smartphone within 80 meters (262 feet) of the product. Cannot connect Bluetooth Please keep your smartphone as close to the product as possible. FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user′s...
- Page 25 authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 26 residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
- Page 27 – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.
- Page 28 of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IC Warning This device contains licence-exempt transmitter(s)/receiv- er(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: ...
- Page 29 (1)This device may not cause interference. (2)This device must accept any interference, including interference that may cause undesired operation of the device. L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1)L'appareil ne doit pas produire de brouillage; ...
- Page 30 2)L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 andcompliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 etla conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne surl'exposition et la conformité de rf.
- Page 31 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ouémetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps. ...
- Page 32 This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. For any problems in use, please feel free to contact us at...
- Page 33 Shenzhen Inkbird Technology Co.,Ltd. support@inkbird.com Consignor: Shenzhen Inkbird Technology Co., Ltd. Office Address: Room 1803, Guowei Building, No.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China Manufacturer: Shenzhen Inkbird Technology Co., Ltd. Factory Address: 6th Floor, Building 713, Pengji Liantang Industrial Area, No.2 Pengxing...
